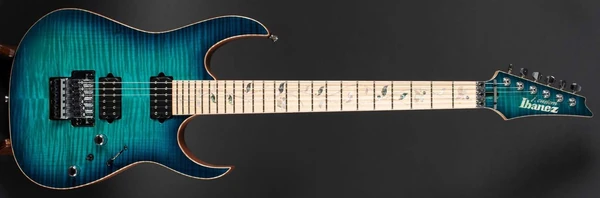

R4122C13H720B (2022)
R4122C13H7 Transparent Turquoise Sunburst (more images) Red copyright sprite

The R4122C13H7 is an RG series solid body electric guitar model introduced by Ibanez for 2022. It was crafted in Japan by Sugi as part of the high-end J Custom line. It is a spot model which is sold exclusively by select Japanese and European music retailers and is also referred to as the R4122C13H7-20B.

The R4122C13H7-20B features a flamed maple top an African mahogany body bolted to a maple and purpleheart neck with an asymmetric profile and a 24-fret maple fingerboard with pearl and abalone Tree of Life inlays and Luminlay side dots. Components include a pair of DiMarzio Fusion Edge humbucking pickups, an Edge double locking tremolo bridge, Gotoh machine heads and Gotoh Strap lock pins.

The R3122B13J2 is a similar model with a quilted top.

Only a single example was produced.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for R4122C13H7 / R4122C13H7-20B
Model name: R4122C13H7 / R4122C13H7-20B
Year(s) offered: 2022
Sold in: Japan / Europe
Made in: Japan
Price: SMAP: US$5,555
Finish(es): Transparent Turquoise Sunburst (TTS)
Body
Body type:
Solid body
Body material:
African mahogany w/ AAA Flame Maple top
Neck joint:
AANJ
Bridge:
Edge tremolo (10.8mm string spacing)
Knob style:
Gotoh VK1-19 (knurled metal dome)
Hardware color:
Chrome
Neck
Neck type:
JCRG Asymmetric Super Wizard
Neck material:
5-piece maple/ purpleheart
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Pearl/ abalone Tree of Life
Luminlay side dots
Frets:
24 / jumbo nickel silver (J. Custom edge treatment)
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio Fusion Edge (H) passive/ ceramic
Neck pickup:
DiMarzio Fusion Edge (H) passive/ ceramic
Controls:
Master volume / master tone / 3-way lever pickup selector / coil-split toggle
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

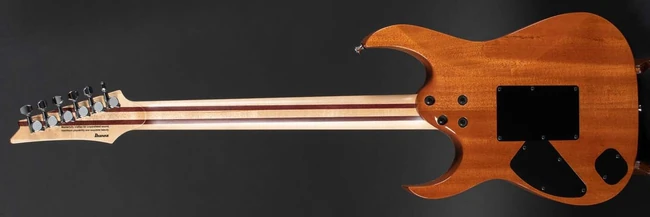

R4122C13H720B rear
2022 Ibanez R4122C13H720B ( Rear: Mahogany body bolted to a 5pc Maple/Purpleheart J.Custom Super Wizard neck and Gotoh SG381 machine heads ) Red copyright sprite
Additional details

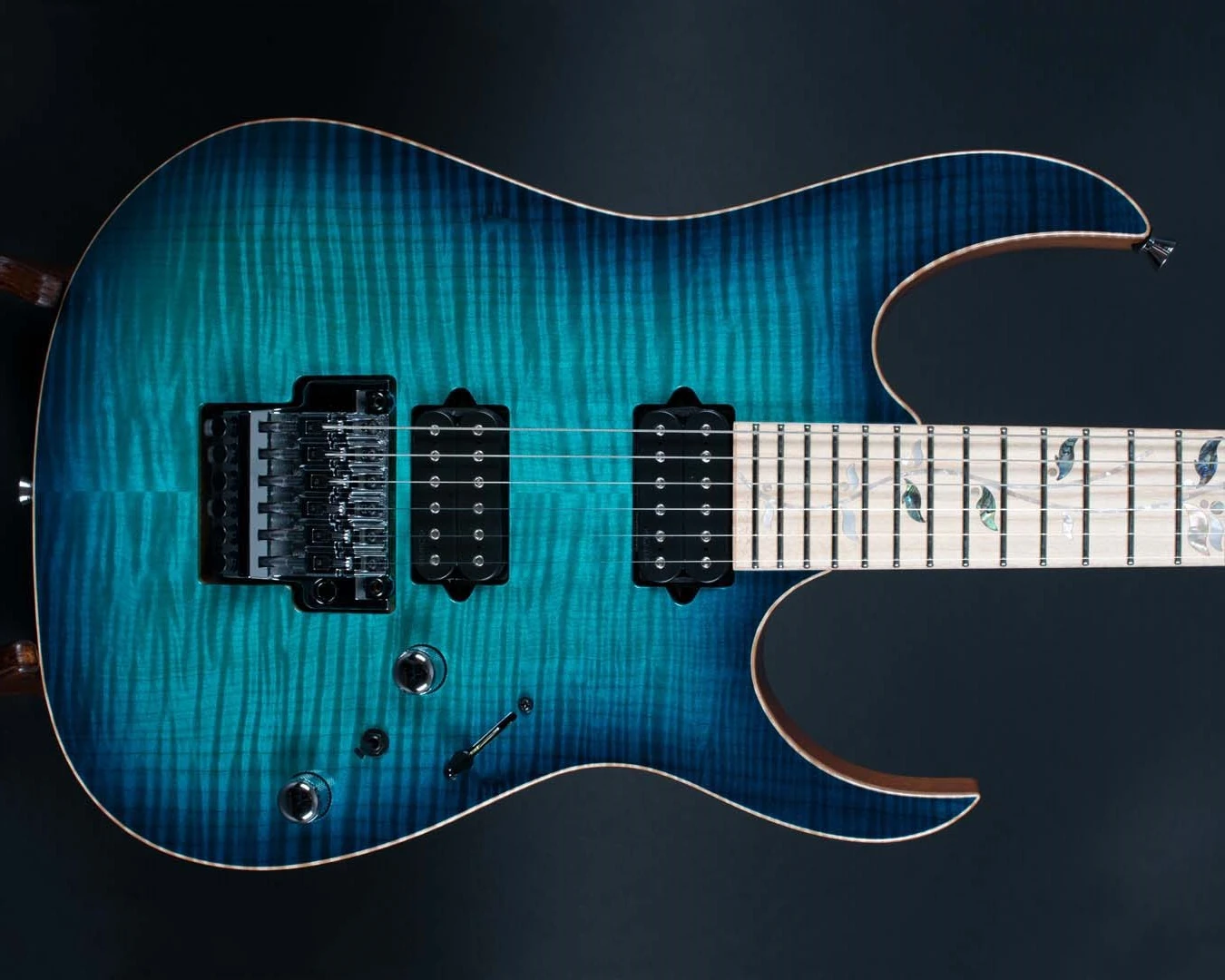

R4122C13H720B front
Front of body

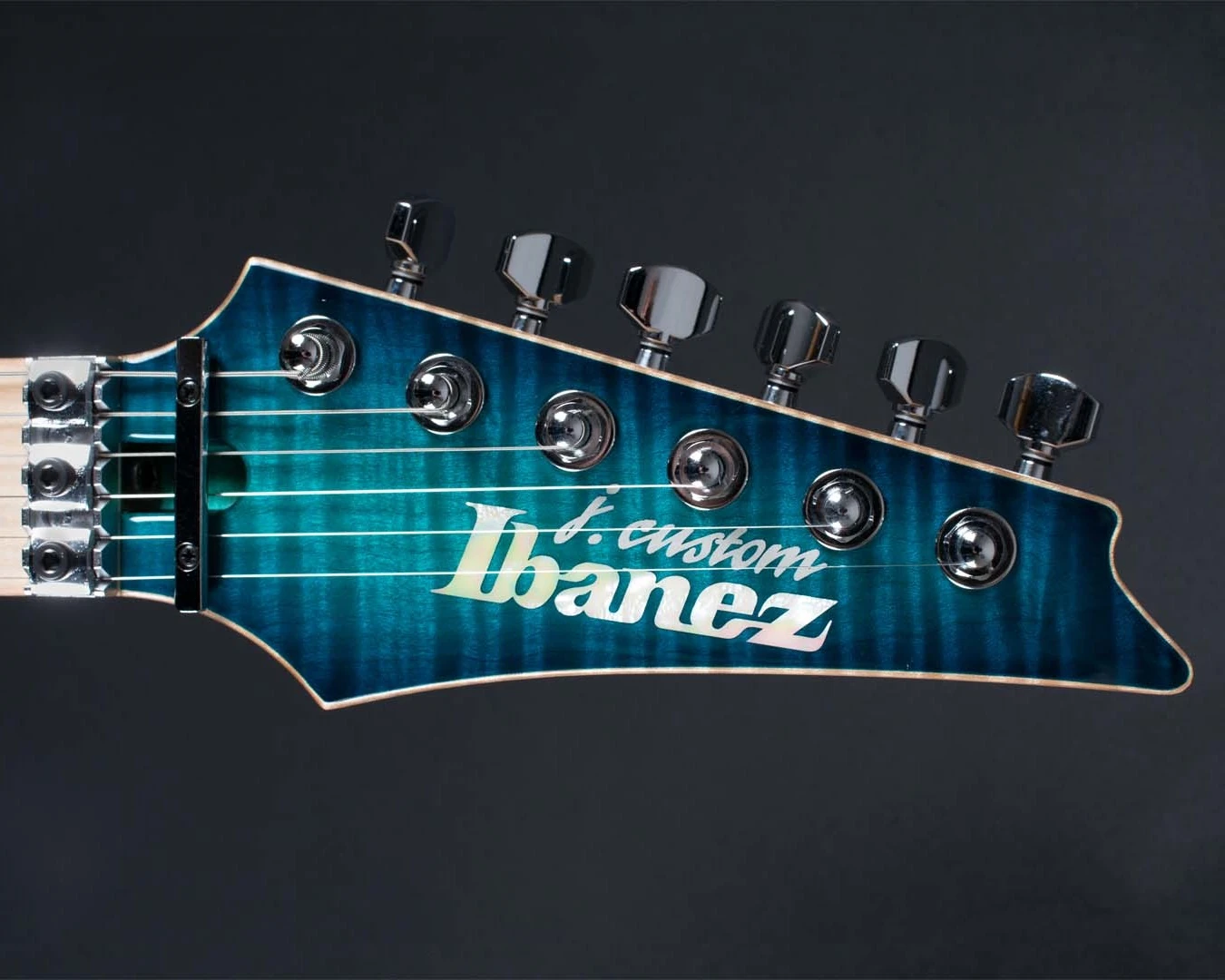

R4122C13H720B headstock
Headstock
HH 3-way-toggle coil-split-toggle
Pickup switching
Controls VT3L coil-split-toggle
Controls layout
