2022 R3122B13J2-20A TTS

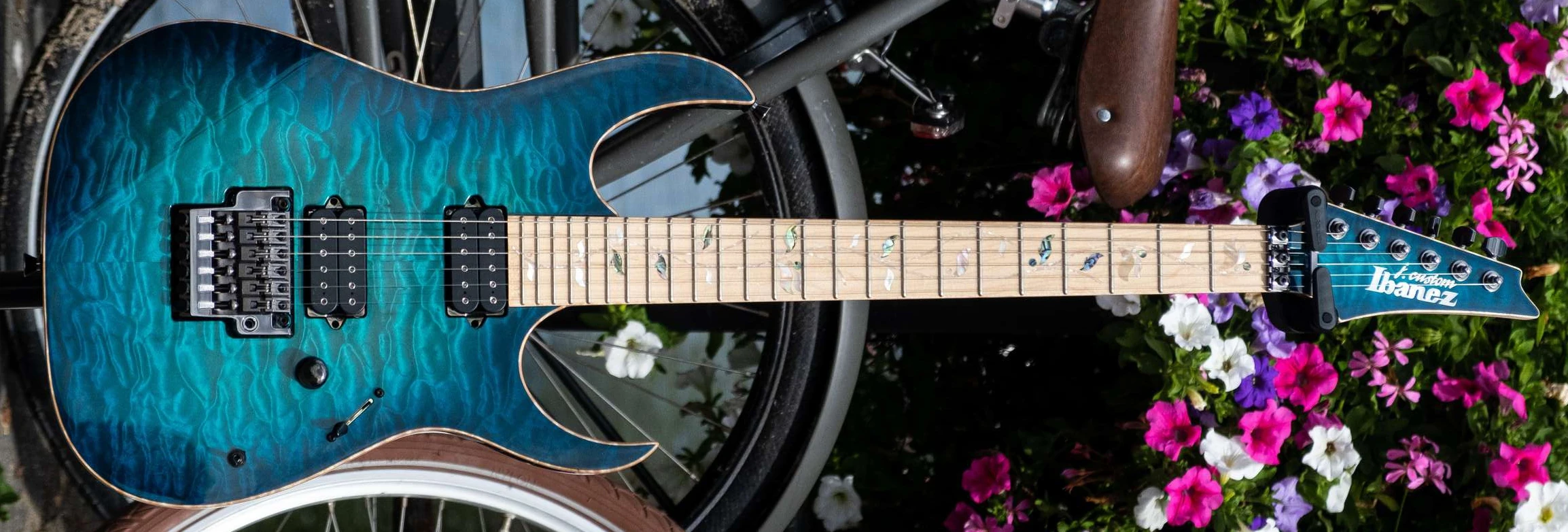

R3122B13J2-20A Transparent Turquoise Sunburst (more images) Red copyright sprite

The R3122B13J2 is an RG series solid body electric guitar model introduced by Ibanez for 2022. It was crafted in Japan by Sugi as part of the high-end J Custom line. It is a spot model which was sold exclusively by European music retailer Axe Palace. It is also referred to as the R3122B13J2-20A.

The R3122B13J2 features a 5A quilted maple top an African mahogany body bolted to a maple and purpleheart neck with a 24-fret maple fingerboard with pearl and abalone Tree of Life inlays and Luminlay side dots. The headstock has a veneer to match the body and a white pearl brand logo and silver silk J. Custom logo. Components include a pair of DiMarzio Fusion Edge humbucking pickups, a Lo-Pro Edge double locking tremolo bridge, and Gotoh tuning machines.

The R4122C13H7 is a similar model with a flamed top and different pickups.

Only a single R3122B13J2 was produced.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for R3122B13J2 / R3122B13J2-20A
Model name: R3122B13J2 / R3122B13J2-20A
Year(s) offered: 2022
Sold in: Europe
Made in: Japan
Price: SMAP: €6,999.99
Finish(es): Transparent Turquoise Sunburst (TTS)
Body
Body type:
Solid body
Body material:
African mahogany w/ AAAAA quilted maple top
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Knob style:
Gotoh VK1-19 (knurled metal dome)
Hardware color:
Cosmo black
Neck
Neck type:
JCRG Super Wizard
Neck material:
3-piece maple/ purpleheart
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Pearl/ abalone Tree of Life
Luminlay side dots
Frets:
24 / jumbo nickel silver (J. Custom edge treatment)
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio Fusion Edge (H) passive/ ceramic
Neck pickup:
DiMarzio Fusion Edge (H) passive/ ceramic
Controls:
Master volume / 3-way lever pickup selector / coil-split toggle
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

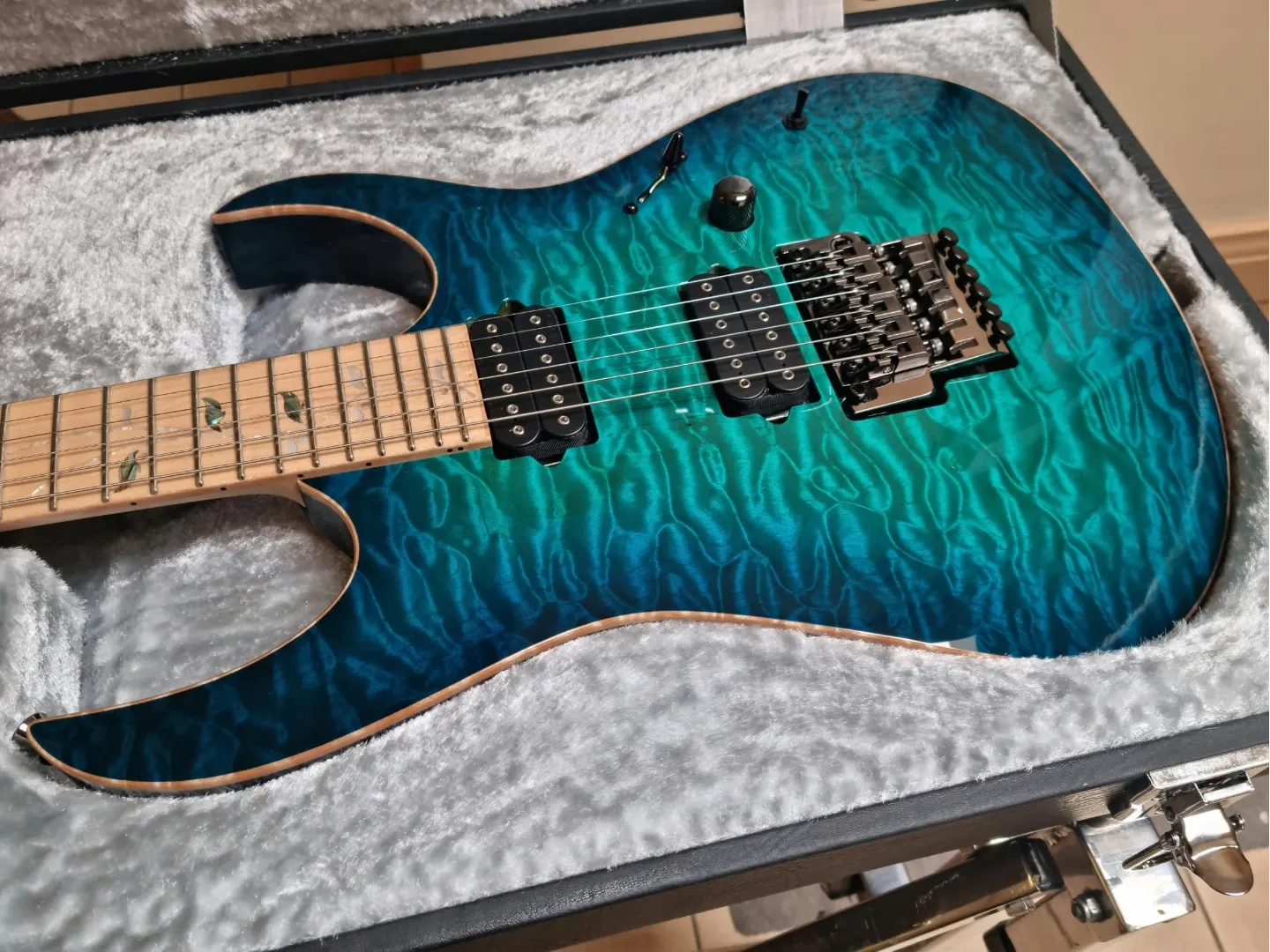

2022 R3122B13J2 top
AAAAA quilted maple top
HH 3-way-toggle coil-split-toggle
Pickup switching
Controls V3L coil-split-toggle
Control layout

Documents[]

'

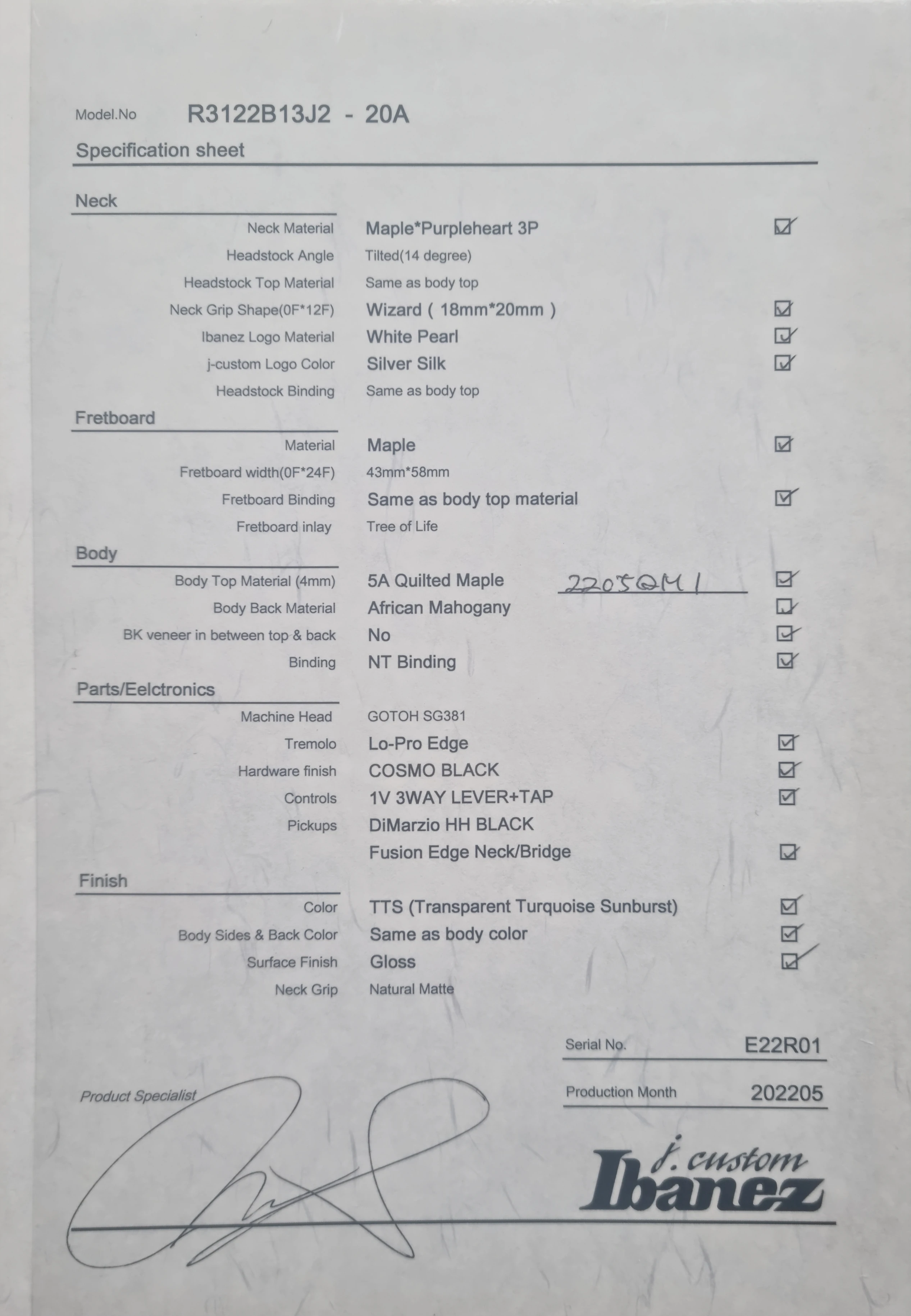

2022 R3122B13J2 spec-sheet
Specifications

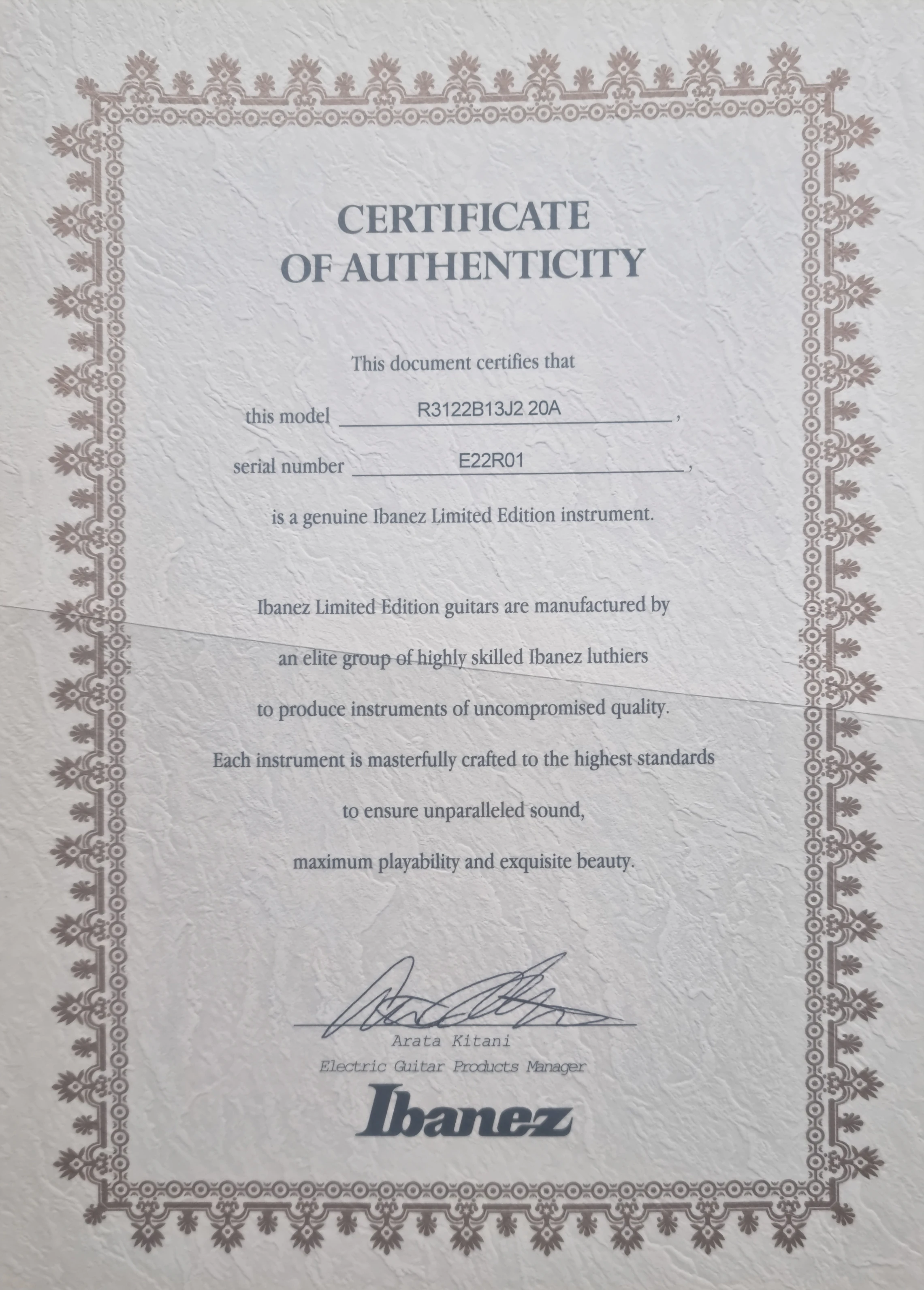

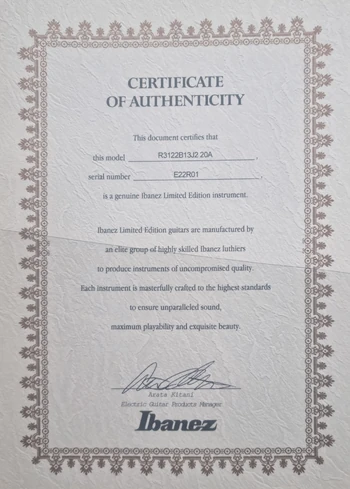

2022 R3122B13J2 CoA
Certificate of Authenticity
