2021 QX54QM BSM
QX54QM Blue Sphere Burst Matte (more images) Red copyright sprite

The QX54QM is a Q series headless, multi-scale, solid body electric guitar model introduced by Ibanez in 2021. It is produced in Indonesia as part of the Standard range.

The QX54QM features a quilted maple top on an ergonomic, compact, light-weight and resonant nyatoh body bolted to a roasted maple and bubinga neck with a 24-fret roasted birdseye maple fingerboard with mother of pearl step off-set dot position markers and luminescent side dots. Components include an Ibanez Q58 humbucking pickup at the bridge and a pair of Ibanez R1 single-coils mounted in a black pickguard in the middle and neck positions all with brushed stainless steel covers, individually mounted Mono-Tune bridges with integrated tuning mechanisms, a plastic nut, and a custom string lock.

For 2022 the magnets in the R1 & Q58 pickups were changed from alnico to ceramic. For 2024 the frets were changed from Jescar EVO gold to stainless steel.

Controls consist of a single volume and tone and a 5-way pickup selector with a dyna-MIX9 switching system with an Alter toggle. The video below offers a sample of some of the tones available.

While the QX54QM is not a true multi-scale guitar, its frets, nut and bridge are slanted at a constant angle across the fretboard to better maintain a natural angle of the player's wrist.

The Q54 is a similar model with traditional perpendicular frets. The QX52 is a related model with a pair of humbucking pickups.

Specifications[]

Related content: Q series | Models-icon
Specifications for QX54QM
Model name: QX54QM
Year(s) offered: 2021–2025
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA & Canada
Made in: Indonesia
Price: MSRP: ¥ 146,600 pre-tax (2021–2022)[1][2] / US$1,515.54 (2022–2025)[3][4] / ¥ 173,400 (2023–2024)[5][6] / 1,199 (2024–2025)[7][8] / ¥ 190,000 (2025)[9] / US$1,653.32 (2025)[10] • SMAP: US$1,099.99 (2022–2025)[3][4] / US$1,199.99 (2025)[10]
Finish(es): Blue Sphere Burst Matte (BSM)
Body
Body type:
Solid body
Body material:
Nyatoh w/ quilted maple top
Neck joint:
AANJ
Bridge:
Mono-Tune (10.8mm string spacing)
Pickguard:
Black
Strap buttons:
Metal button w/ felt washer
Knob style:
Knurled metal flat head dome
Hardware color:
Cosmo black
Neck
Neck type:
Parallel Wizard
Neck material:
3-piece roasted maple/ bubinga
Scale length:
648mm/ 25½"
Fingerboard material:
Roasted birdseye maple
Fingerboard inlays:
Mother of pearl step off-set dot/
Luminescent side dot
Frets:
2021–2023: 24 / jumbo Jescar EVO gold
2024–2025: 24 / jumbo stainless steel
Nut:
Black plastic (42mm)
String gauge (factory):
.010/.013/.017/.026/.036/.046 (D'Addario EXL110)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics/ case
Pickup configuration:
HSS
Bridge pickup:
2021: Q58 w/ brushed stainless steel cover (H) passive/alnico
2022–2024: Q58 w/ brushed stainless steel cover (H) passive/ceramic
Middle pickup:
2021: R1 w/ brushed stainless steel cover (S) passive/alnico
2022–2024: R1 w/ brushed stainless steel cover (S) passive/ceramic
Neck pickup:
2021: R1 w/ brushed stainless steel cover (S) passive/alnico
2022–2024: R1 w/ brushed stainless steel cover (S) passive/ceramic
Controls:
Master volume / master tone / dyna-MIX9 switching system w/ "Alter switch" toggle
Output jack:
¼" stereo barrel (side mounted)
Recommended case:
MR350C
Included gig bag:
yes

Images[]

Additional details

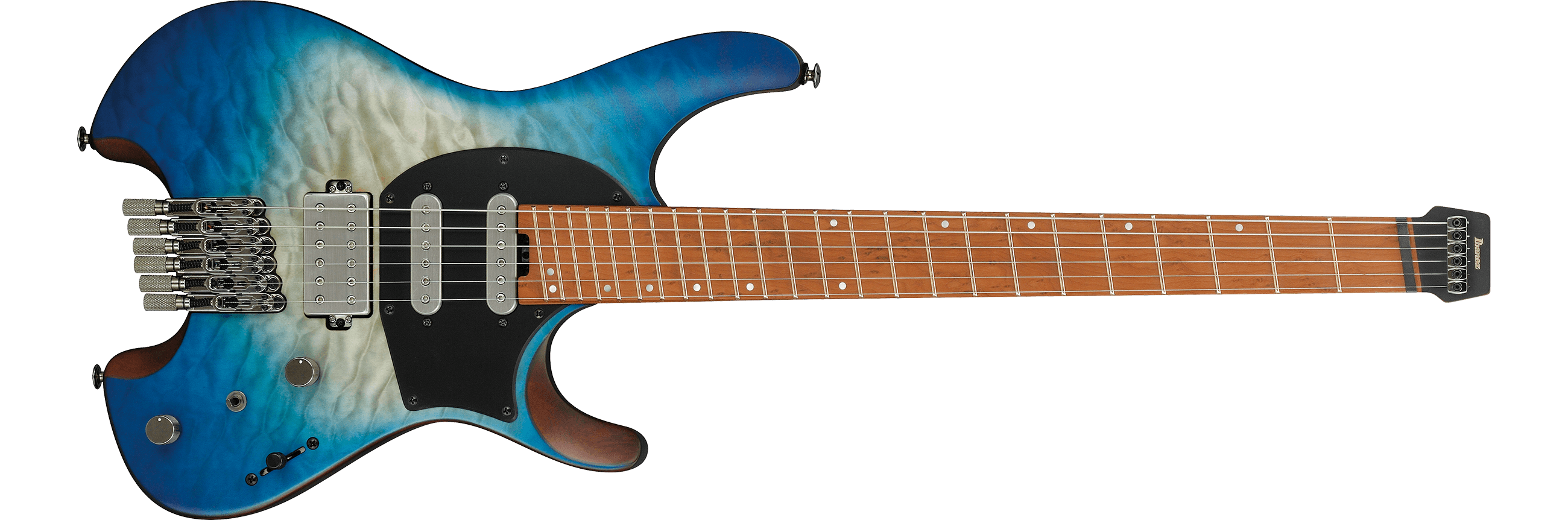

P region QX54QM BSM 1P 01 sub 1
Front of body
P region QX54QM BSM 1P 01 sub 2
Rear of body

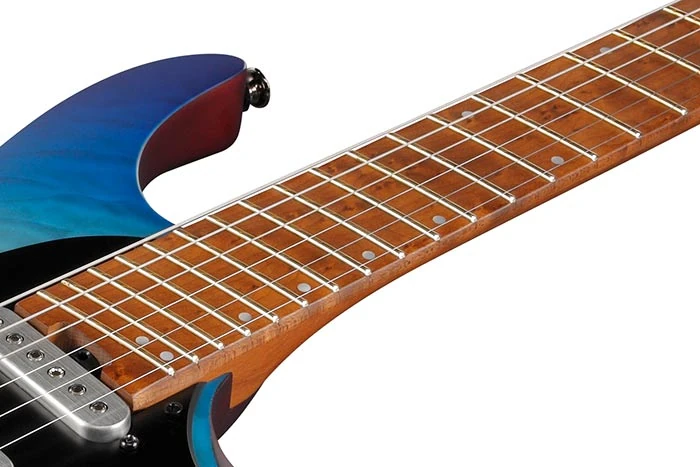

Feat QX54QM slantfret
Fretboard

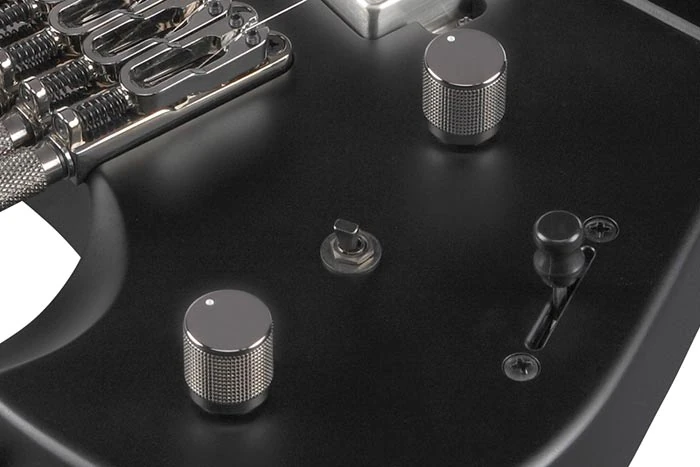

Q54 sw
Controls
Q control 99
Controls layout
Q puswitch
dyna-MIX9 switching system

Video[]

Quest_Series_Pickup_Combinations-_dyna-MIX9_switching_system
Quest Series Pickup Combinations- dyna-MIX9 switching system


Ibanez_QX54QM_featuring_Manuel_Gardner_Fernandes
QX54QM demo/ review by Manuel Gardner Fernandes
