2021 QX527PB.png
QX527PB Antique Brown Stained (more images) Red copyright sprite.png

The QX527PB is an Q series seven strings headless solid body electric guitar model introduced by Ibanez in 2021. It is made in Indonesia.

The QX527PB features an ergonomic, compact and light-weight, resonant Nyatoh body bolted to a 5pc Roasted Maple/Bubinga, Parallel Wizard-7 neck with, 24 Jescar EVO Gold Jumbo frets, a Roasted Birdseye Maple fingerboard with Mother of Pearl Step off-set dots & Luminescent side dots inlays. Components include a pair of Q58-7 Humbuckers Passive/Alnico pickups for the neck & bridge, controls are Master volume / master tone / 5-way lever pickup selector / dyna-MIX8 w/ Alter Switch & Ibanez Mono-Tuners.

The QX52 is a similar model with six strings & Black Flat (BKF) finish.

Specifications for QX527PB
Model name: QX527PB
Year(s) produced: 2021
Sold in: Worldwide
Made in: Indonesia
Finish(es): Antique Brown Stained (ABS)
Body
Body type:
Solid body
Body material:
Nyatoh
Neck joint:
AANJ
Bridge:
Mono-Tune (10.8m string spacing)
Hardware color:
Cosmo Black
Neck
Neck type:
Parallel Wizard-7
Neck material:
5pc Roasted Maple/Bubinga
Scale length:
648mm/ 25½"
Fingerboard material:
Roasted Birdseye Maple
Fingerboard inlays:
Mother of Pearl Step off-set dot / Luminescent side dot
Frets:
24 / Jumbo Jescar EVO Gold
Nut:
Custom (47mm)
Machine heads:
Ibanez
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Q58-7 Passive/Alnico (H)
Neck pickup:
Q58-7 Passive/Alnico (H)
Controls:
Master volume / master tone / 5-way lever pickup selector / dyna-MIX8 w/ Alter Switch
String gauge (factory):
.010/.013/.017/.026/.036/.046/.059 D'Addario XL110-7
Factory tuning:
1E,2B,3G,4D,5A,6E,7B
Portal: QX | Q series | Guitar models Models-icon.png

Images

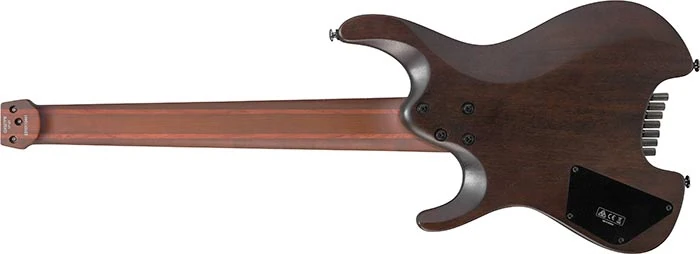

QX527PB back.jpg
2021 Ibanez QX527PB-ABS ( Rear : Nyatoh body, AANJ with 5pc Roasted Maple/Bubinga - Parallel Wizard-7 neck ) Red copyright sprite.png
Additional details

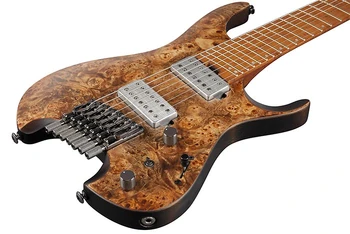

QX527PB body.jpg
Front of body

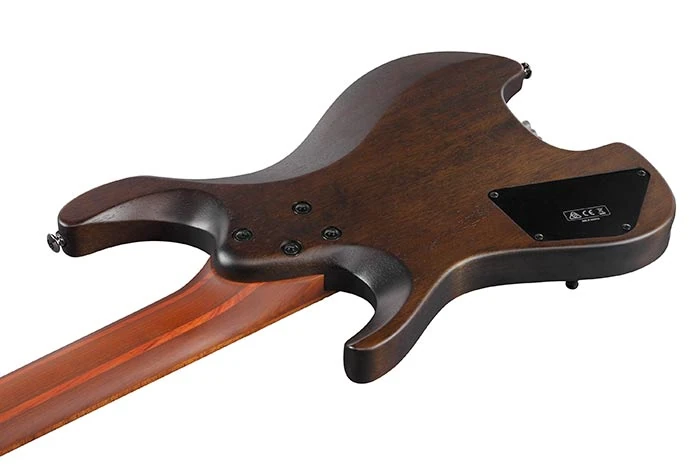

QX527PB rear.jpg
Rear of body

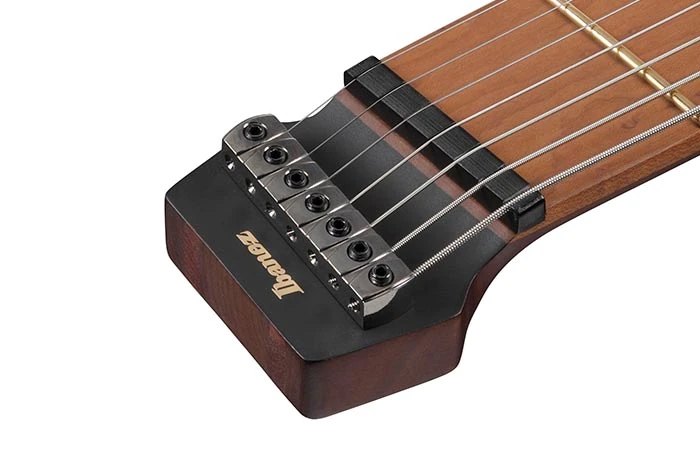

QX527PB stringlock.jpg
Custom string lock

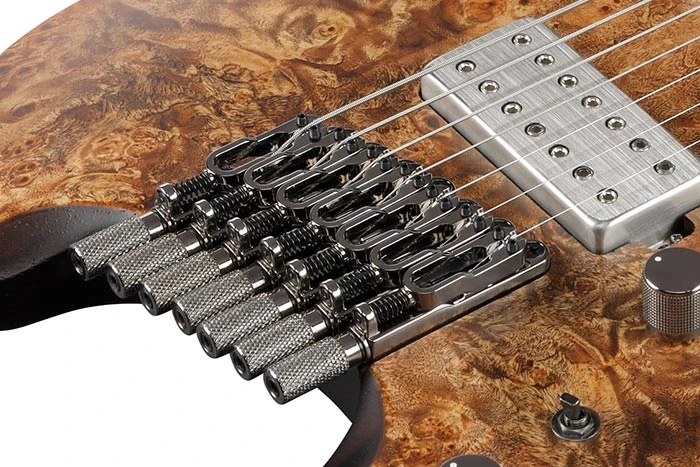

QX527PB bridge.jpg
Mono-Tuners

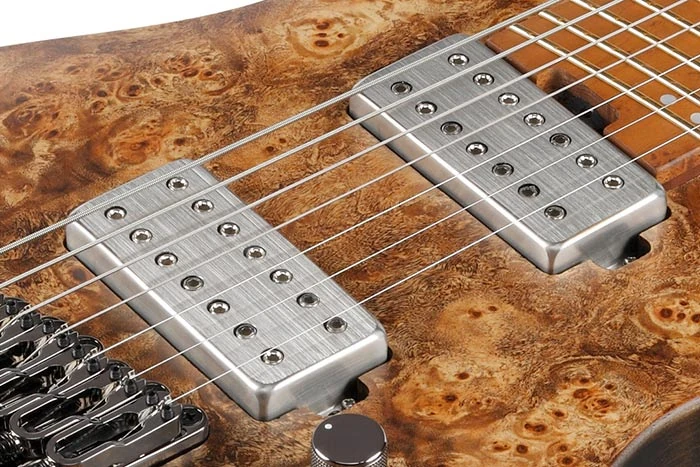

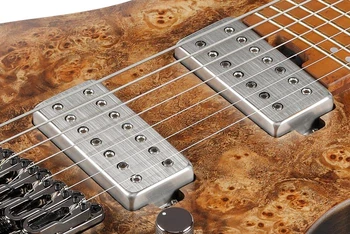

QX527PB pu.jpg
Q58-7 Humbuckers
Q control 99.jpg
Control layout
Q puswitch.png
Switching diagram

Video

2021 Ibanez QX527PB-ABS ( Demo by Lee Wrathe )
