2019 PN1MH NT 3U 05
PN1MH Natural Gloss Red copyright sprite

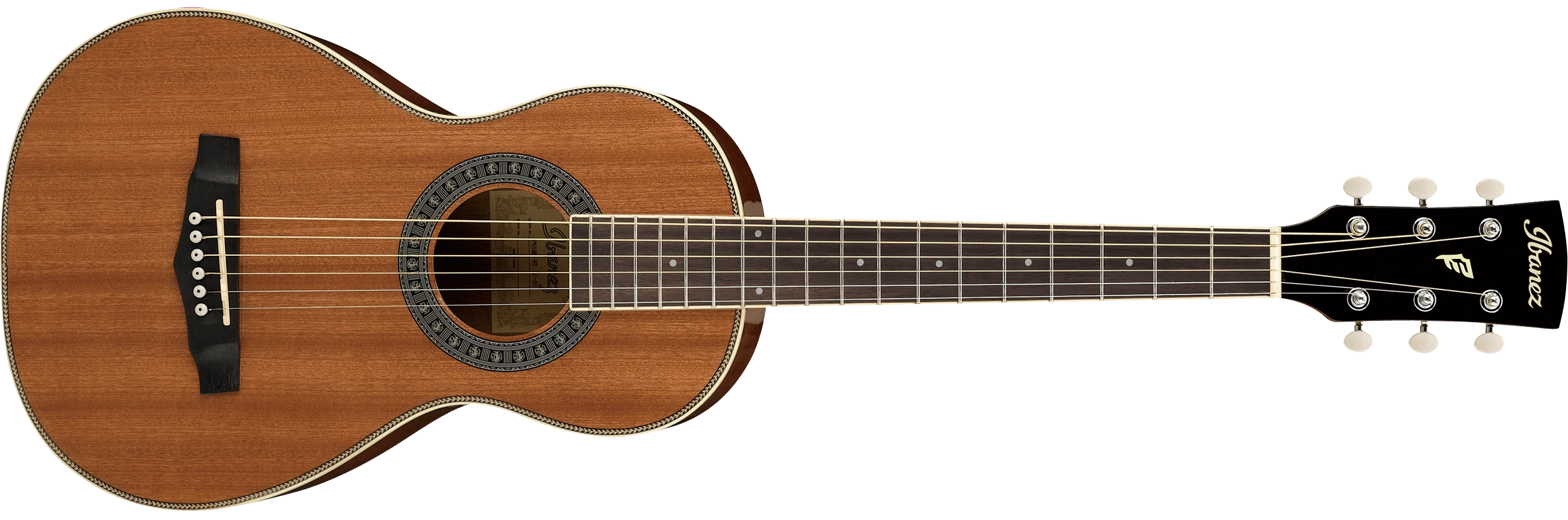

The PN1MH is a Performance series acoustic guitar model introduced by Ibanez for 2017. It is made in China.

The PN1MH features a parlor body with a laminated mahogany top edged with herringbone purfling and ivory binding on mahogany back and sides with a gloss finish. The round soundhole has a black and white classical mosaic rosette. The mahogany neck has an 18-fret rosewood fingerboard with binding and small white dot position markers. Components include a compensated plastic saddle in a rosewood bridge with ivory Ibanez Advantage bridge pins, a plastic nut, and chrome Ibanez open gear tuning machines with ivory buttons.

For 2018 the top, back and sides were replaced with sapele and the rosewood fretboard and bridge were replaced with nandu wood. For 2019 the back, sides and neck was changed to nyatoh.

The PN1 is a similar model with a spruce top.

Specifications

Specifications for PN1MH
Years: 2017–2020
Areas: USA
Made in: China
Finishes: Natural Gloss (NT)
Body
Body type:
Acoustic
Body shape:
Parlor 2
Dimensions:
  Length: 460mm/ 18⅛"
  Width: 305mm/ 12"
  Depth: 95mm/ 3¾" (90mm at neck/ 110 mm at body end)
Top:

  Material: 2017: Mahogany (laminated)
                2018–2020: Sapele (laminated)
  Bracing: X
  Finish: Gloss
  Binding: Herringbone purfling and ivory binding

Back/sides:

  Material: 2017: Mahogany
                2018: Sapele
                2019–2020: Nyatoh
  Finish: Gloss

Soundhole shape:
Round
Soundhole rosette:
Classical mosaic
Neck
Neck profile:
PN
Neck material:
2017–2018: 1-piece mahogany
2019–2020: 1-piece nyatoh
Neck finish:
Satin
Scale length:
620mm/ 24.4"
Fingerboard:
2017: Rosewood
2018–2020: Nandu wood
Inlays:
Small white dot
Frets:
18 / medium
Nut:
Plastic (42mm)
Machine heads:
Ibanez covered w/ ivory plastic buttons
Components
Bridge:
2017: Rosewood
2018–2020: Nandu wood (11mm string spacing)
Bridge pins:
Ibanez Advantage (ivory w/ black dot)
Saddle:
Plastic (compensated)
Hardware color:
Chrome
Pickguard:
Black
Strings (factory):
.012/.016/.024/.032/.042/.053 (Ibanez IACS6C coated)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
