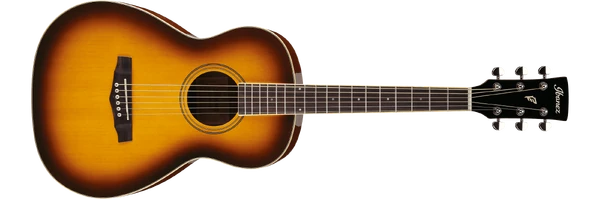

2019 PN15 BS 3U 06

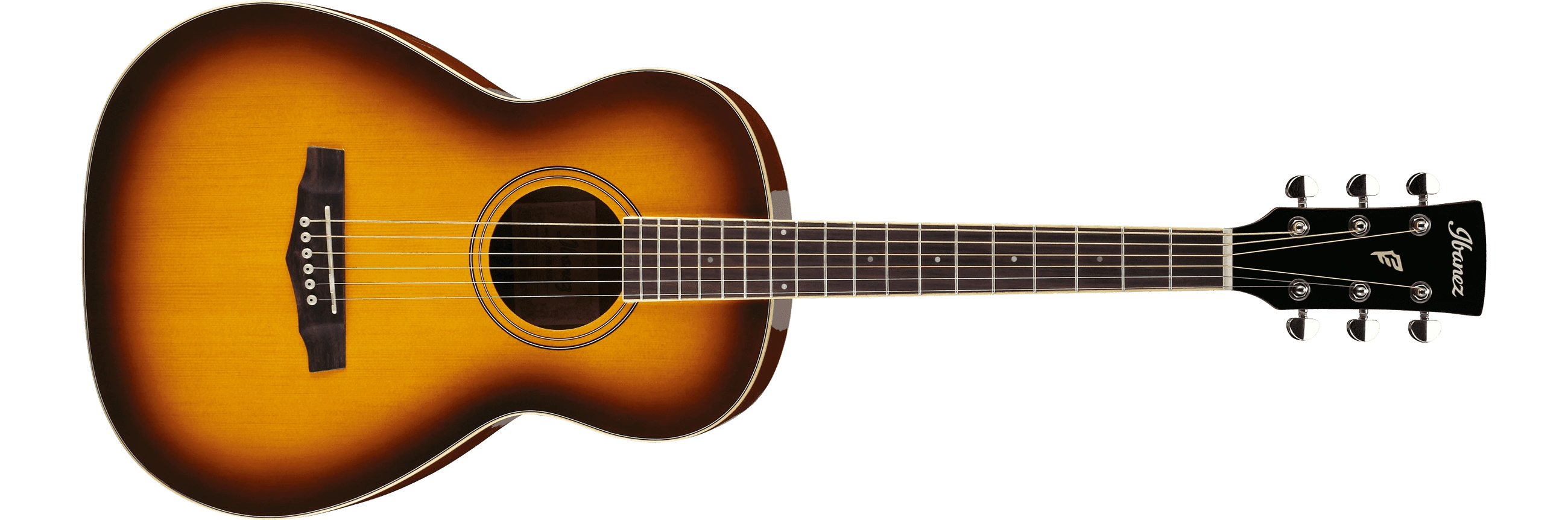

PN15 Brown Sunburst High Gloss (more images) Red copyright sprite

The PN15 is a Performance series acoustic guitar model introduced by Ibanez for 2013. It is made in China.

The PN15 features a parlor body with a laminated spruce top on mahogany back and sides. The round soundhole has a black and white acrylic rosette. The mahogany neck has an 18-fret rosewood fingerboard with small white dot position markers. Components include a compensated plastic saddle in a rosewood bridge with ivory Ibanez Advantage bridge pins, a plastic nut, and chrome Ibanez tuning machines.

For 2018 the back and sides were replaced with sapele and the rosewood fretboard and bridge were replaced with nandu wood. For 2019 the neck was changed from mahogany to nyatoh and the back and sides and neck were changed to nyatoh.

The PN15MH is a similar model with a mahogany top. The PN15E is a similar acoustic/ electric model. The PF15 and PC15 are related models with, respectively, dreadnought and grand concert bodies. The PN19 is a related model with different wood species for the back, sides, neck, fretboard and bridge.

Specifications

Specifications for PN15
Years: 2013–2020
Areas: Asia & Africa 2013–2019 / Europe 2013–2019 / North & South America and Oceania 2013–2019 / USA
Made in: China
Finishes: Antique Natural High Gloss (ATN) 2013–2017 / Brown Sunburst High Gloss (BS)
Body
Body type:
Acoustic
Body shape:
Parlor
Dimensions:
  Length: 495mm/ 19½"
  Width: 362mm/ 14¼"
  Depth: 102mm/ 4"
Top:

  Material: Spruce (laminated)
  Bracing: X
  Finish: High gloss
  Binding: Ivory

Back/sides:

  Material: 2013–2017: Mahogany
                2018: Sapele
                2019–2020: Nyatoh
  Finish: High gloss

Soundhole shape:
Round
Soundhole rosette:
Black & white multi
Neck
Neck profile:
PN
Neck material:
2013–2018: 1-piece mahogany
2019–2020: 1-piece nyatoh
Scale length:
620mm/ 24.4"
Fingerboard:
2013–2017: Rosewood w/ binding
2018–2020: Nandu wood w/ binding
Inlays:
Small white dot
Frets:
18 / medium
Nut:
Plastic (43mm)
Machine heads:
Ibanez die-cast
Components
Bridge:
2013–2017: Rosewood
2018–2020: Nandu wood (11mm string spacing)
Bridge pins:
Ibanez Advantage (ivory w/ black dot)
Saddle:
Plastic compensated
Hardware color:
Chrome
Strings (factory):
2013–2016: .012/.016/.024/.032/.042/.053 (D'Addario EXP11) coated 80/20 bronze
2017–2018: .012/.016/.024/.032/.042/.053
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes

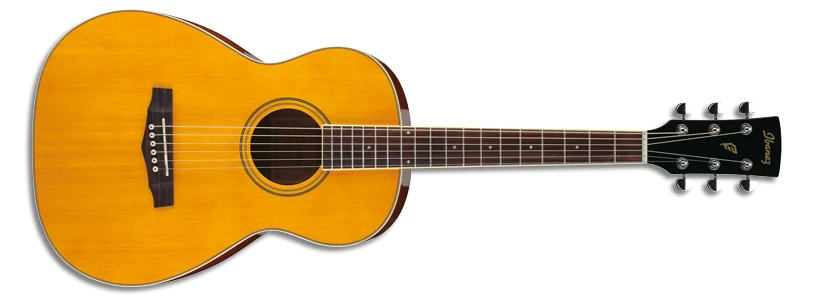

2017 PN15 ATN 3U 02
Antique Natural High Gloss
