2020 PN12MHE OPN

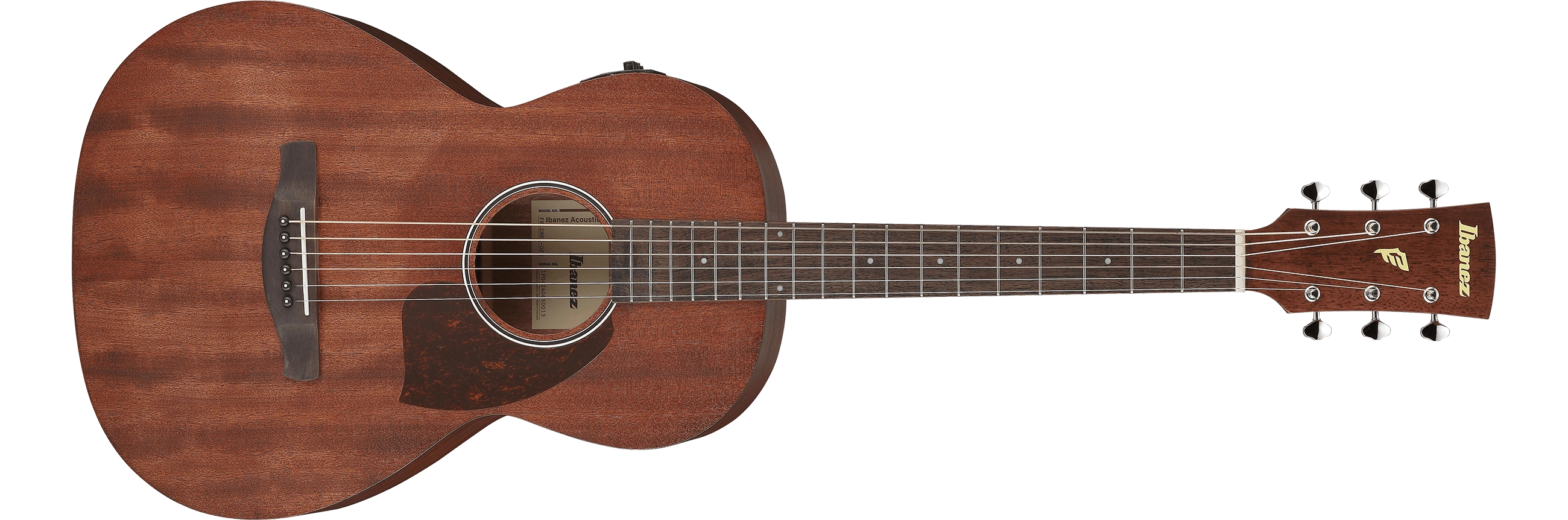

PN12MHE Open Pore Natural Red copyright sprite

The PN12MHE is a Performance series acoustic guitar model introduced by Ibanez in 2020. It is made in China.

The PN12MHE features a parlor body with a laminated okoume top on okoume back and sides with an open pore finish. The round soundhole has a black and white acrylic rosette and a black pickguard. The nyatoh neck has an 18-fret laurel fingerboard with small white dot position markers. Components include a compensated plastic saddle in a laurel bridge with ivory Ibanez Advantage bridge pins, a plastic nut, and chrome Ibanez tuning machines. Electronics consist of an Ibanez under saddle pickup connected to an AEQ2T preamp with on-board tuner powered by a 9V battery and a 1/4" stereo end pin output jack.

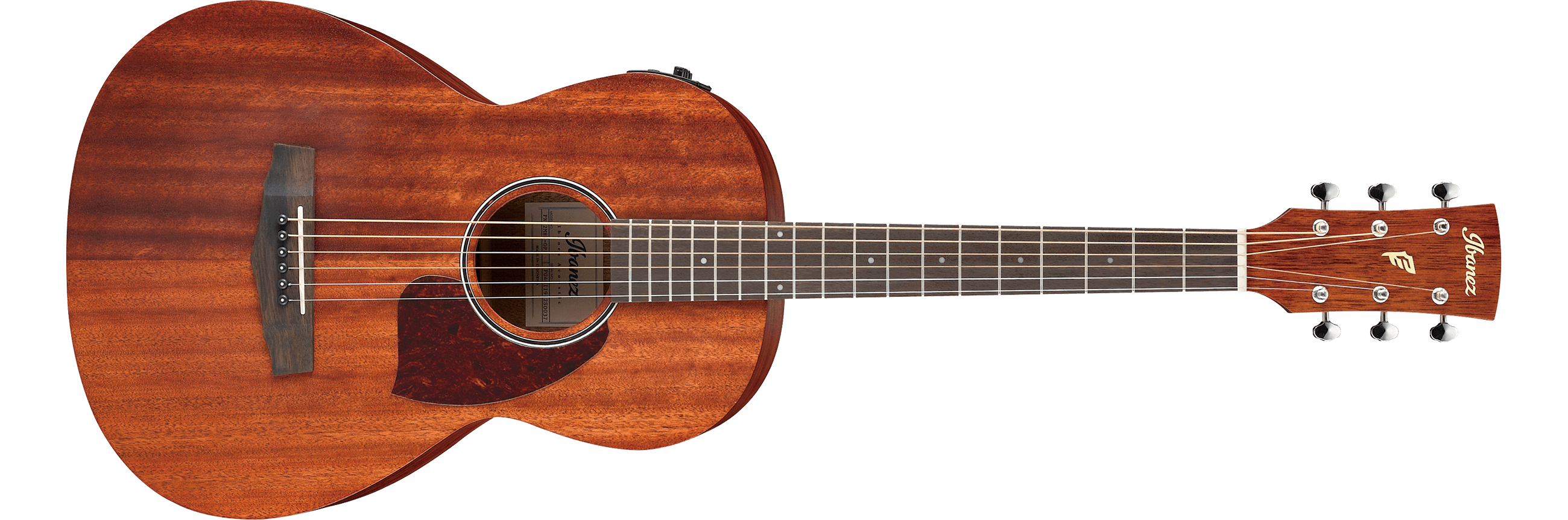

The PN12E is a similar model with a mahogany or sapele body with a high gloss finish.

Specifications

Specifications for PN12MHE
Years: 2020
Sold in: Japan
Made in: China
Finishes: Open Pore Natural (OPN)
Body
Body type:
Acoustic
Body shape:
Parlor
Dimensions:
  Length: 495mm/ 19½"
  Width: 362mm/ 14¼"
  Depth: 102mm/ 4"
Top:

  Material: Okoume (laminated)
  Finish: Open pore
  Binding: Ivory

Back/sides:

  Material: Okoume
  Finish: Open pore

Soundhole shape:
Round
Soundhole rosette:
Black & white multi
Neck
Neck profile:
PN
Neck material:
1-piece nyatoh
Scale length:
628.7mm/ 24.8"
Fingerboard:
Laurel
Inlays:
Small white dot
Frets:
18 / medium
Nut:
Plastic (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Components
Pickup:
Ibanez Undersaddle
Preamp:
Ibanez AEQ-2T w/ on-board tuner
Output jack(s):
¼" stereo end pin
Battery:
9V
Bridge:
Laurel (11mm string spacing)
Bridge pins:
Ibanez Advantage (ivory w/ black dot)
Saddle:
Plastic compensated
Hardware color:
Chrome
Pickguard:
Black
Strings (factory):
.012/.016/.024/.032/.042/.053 (Ibanez IACS6C coated)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
Ibanez AEQ-2T diagram
AEQ2T preamp controls
