2019 PN1 NT 3U 07

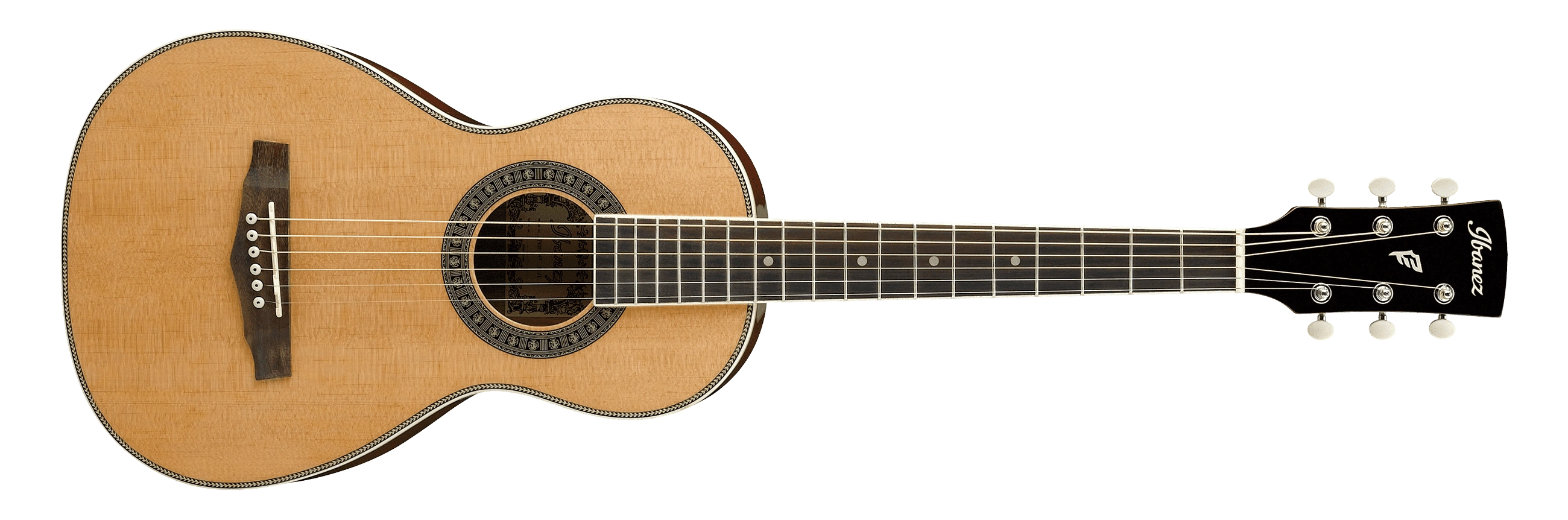

PN1 Natural High Gloss Red copyright sprite

The PN1 is a Performance series acoustic guitar model introduced by Ibanez for 2015. It was produced in China.

The PN1 features a parlor body with a laminated spruce top edged with herringbone purfling and ivory binding on mahogany back and sides with a gloss finish. The round soundhole has a black and white classical mosaic rosette. The mahogany neck has an 18-fret rosewood fingerboard with binding and small white dot position markers. Components include a compensated plastic saddle in a rosewood bridge with ivory Ibanez Advantage bridge pins, a plastic nut, and chrome Ibanez open gear tuning machines with ivory buttons.

For 2018 the back and sides were replaced with sapele and the rosewood fretboard and bridge were replaced with nandu wood. For 2019 the back, sides and neck was changed to nyatoh.

The PN1MH is a similar model with a mahogany or sapele top.

The PN1 was discontinued after 2024

Specifications[]

Related content: Performance series | Models-icon
Specifications for PN1
Name: PN1
Year(s) offered: 2015–2024
Sold in: Americas & Oceania 2015–2019 / USA
Made in: China
Finishes: Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
Parlor 2
Dimensions:
  Body length:
    2015–2017: 464mm/ 18¼"
    2018–2024: 460mm/ 18⅛"
  Width: 305mm/ 12"
  Depth: 95mm/ 3¾" (90mm at neck/ 110 mm at body end)
Top:
  Material: Spruce (laminated)
  Bracing: X
  Finish: High gloss
  Binding: Herringbone purfling & ivory binding
Back/sides:
  Material: 2015–2017: Mahogany (laminated)
                2018: Sapele (laminated)
                2019–2024: Nyatoh (laminated)
  Finish: High gloss
Soundhole shape:
Round
Soundhole rosette:
Classical mosaic
Neck
Neck profile:
PN
Neck material:
2015–2018: 1-piece mahogany
2019–2024: 1-piece nyatoh
Neck finish:
Satin
Scale length:
620mm/ 24.4"
Fingerboard:
2015–2017: Rosewood
2018–2024: Nandu wood
Inlays:
Small white dot
Frets:
18 / medium
Nut:
Plastic (42mm)
Machine heads:
Ibanez covered
Strings (factory):
2015–2022: .012/.016/.024/.032/.042/.053 (Ibanez IACS6C coated)
2023–2024: .012/.016/.024/.032/.042/.053
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Components
Bridge:
2015–2017: Rosewood
2018–2024: Nandu wood
Bridge pins:
Ibanez Advantage bridge pins (ivory w/ black dot)
Saddle:
Plastic compensated (11mm string spacing)
Hardware color:
Chrome
Pickguard:
Black

Sources[]

  • PN1 product page, Ibanez USA, archived February 2015
  • 2017 Americas & Oceania catalog (p. 65)
  • 2018 USA catalog (p. 115)
  • PN1 product page, Ibanez USA, archived December 2019
  • PN1 product page, Ibanez USA, archived January 2020
  • PN1 product page, Ibanez USA, archived January 2021
  • PN1 product page, Ibanez USA, archived June 2022
  • PN1 product page, Ibanez USA, archived January 2023
  • PN1 product page, Ibanez USA, archived January 2024
