2019 PM200 NT 00 01 en 1

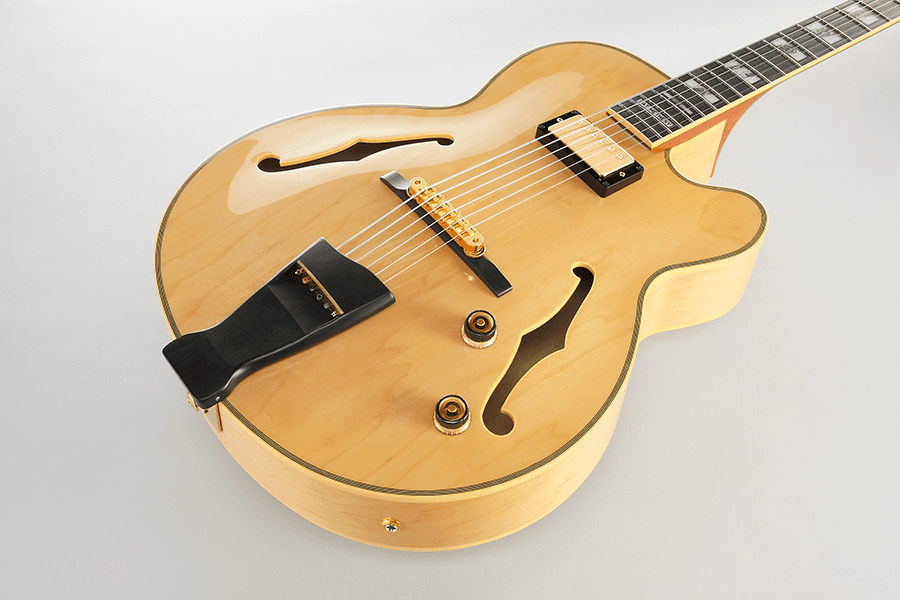

PM200 Natural Red copyright sprite

The PM200 is a hollow body electric guitar model introduced by Ibanez in 2013. It is a signature model for American jazz guitarist and composer Pat Metheny. It is made in Japan by FujiGen and replaced the PM120 as the Metheny's flagship model.

The PM200 features a full-sized, single cutaway, full hollow body design with a maple top with ƒ holes and multi-layer binding and maple back and sides mated to a set-in mahogany neck with a 22-fret ebony fingerboard with binding and pearl/acrylic and abalone split block position markers. Components include a single Ibanez Silent 58 humbucking pickup with gold cover mounted at the neck, a Gotoh Tune-o-matic style bridge floating on a wood base with a custom tailpiece, a bone nut, Sure Grip knobs, a stereo output jack and Gotoh tuning machines.

For 2015 the pearl and abalone inlays were replaced with acrylic and abalone. For 2018 the wood species used for the neck was clarified as African mahogany.

The PM2 is a more affordable Chinese-made version.

Specifications

Specifications for PM200
Year(s) produced: 2013–2020
Sold in: Worldwide
Made in: Japan
Finish(es): Natural (NT)
Body
Body type:
Hollow body
Dimensions:
  Length: 508mm / 20"
  Width: 419mm / 16½"
  Depth: 108mm / 4¼"
Top:

  Material: Maple
  Binding: Multi-layer cream/black

Back/sides:

  Material: Maple

Neck joint:
Set-in
Bridge:
Gotoh GE103B w/ wood base (10.4mm string spacing)
Tailpiece:
PM200
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
PM Prestige
Neck material:
2013–2017: 1-piece mahogany
2018–2020: 1-piece African mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ binding
Fingerboard inlays:
2013–2014: Pearl and abalone split block
2015–2019: Acrylic and abalone split block
Frets:
22 / medium (Prestige edge treatment)
Nut:
Bone (43mm)
Machine heads:
Gotoh SGL510
Electronics/ Strings
Pickup configuration:
H
Neck pickup:
Ibanez Silent 58 (H) passive/alnico
Controls:
Master volume / master tone
Output jack:
¼" stereo box (side mounted)
String gauge (factory):
.011/.015/.022w/.030/.040/.050 flatwound
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
Controls VT
Control layout
