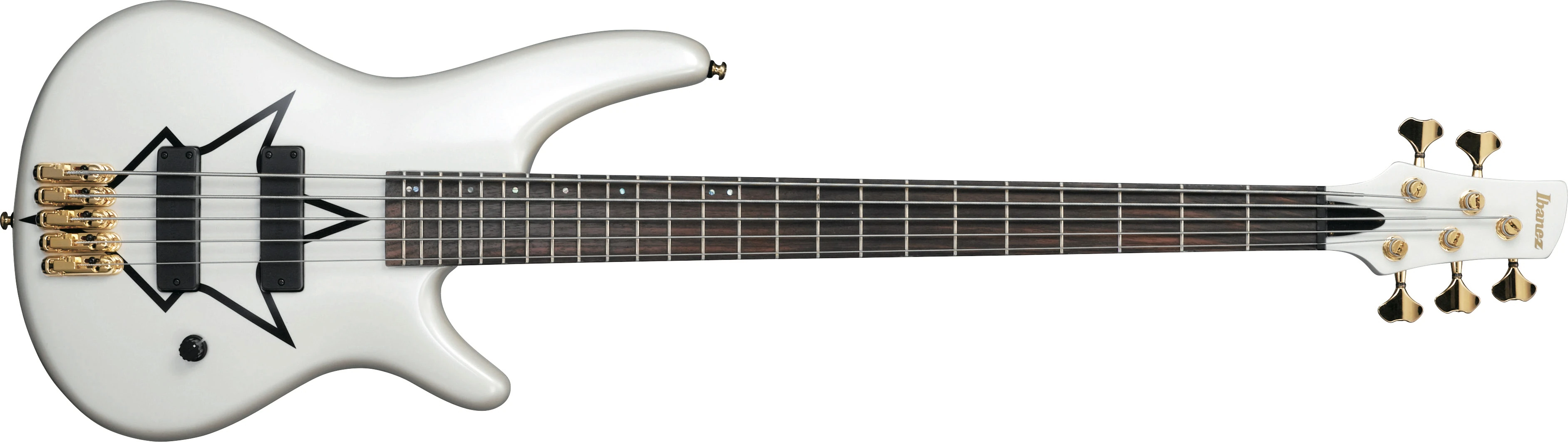

2013 PIB2 PW.jpg
PIB2 Pearl White Red copyright sprite.png

The PIB2 is a five string solid body electric bass model introduced by Ibanez for 2011. It is a signature model for Swedish bassist Peter Iwers. It was produced in Indonesia, replacing the PIB1.

The PIB2 features a Soundgear series double-cutaway maple body with a pearl white finish with a striking signature graphic overlay. This body is bolted to a maple and bubinga neck with a 24 fret rosewood fingerboard with offset dot position markers starting at the twelfth fret. Components include a pair of Bartolini Custom passive humbucking bass pickups with a VM-3 HQ preamp, a set of MR-4 Mono-rail bridges with a 16.5mm string spacing, a plastic nut and Gotoh tuners. The only control is a single volume.

The PIB2 was discontinued after 2013 and replaced by the PIB3

Specifications

Specifications for PIB2
Model name: PIB2
Year(s) produced: 2011–2013
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: Indonesia
Finish(es): Pearl White (PW)
Body
Body type:
Solid body
Body material:
Maple
Neck joint:
Neck-thru
Bridge:
MR-4 Mono-rail (16.5mm string spacing)
Knob style:
Plastic B20 (black)
Hardware color:
Gold
Neck
Neck type:
PIB
Neck material:
5-piece maple/ bubinga
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
PIB special
Frets:
24 / medium
Nut:
Black plastic (45mm)
Machine heads:
Gotoh GB707
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Bartolini Custom neck (H) passive
Neck pickup:
Bartolini Custom neck (H) passive
Electronics:
VM-3 HQ preamp
Controls:
Single volume
Battery:
9V
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.045/.065/.085/.105/.120
Factory tuning:
1D#,2A#,3F,4C,5A#
Portal: SR series | Peter Iwers series | Signature series | Bass models Models-icon.png

Images

Additional details

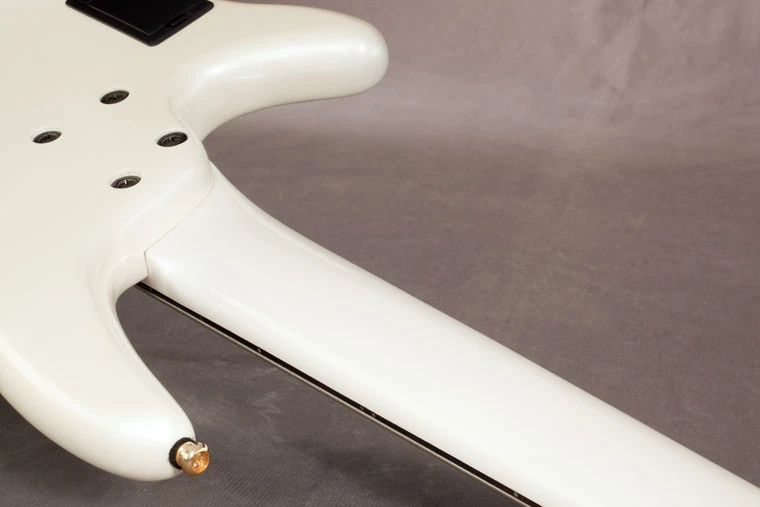

2012 PIB2PW painted neck.jpg
Painted neck and neck joint
