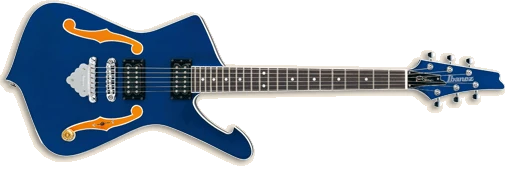

The PGM600 is a PGM series solid body electric guitar model introduced by Ibanez in 1994. It is a signature model of American guitarist Paul Gilbert.

Unlike most PGM models, it is based on the Ibanez Iceman shape and has some specifications which are unusual for the PGM series. For example the set-in 22-fret neck, dual-humbucker pickup configuration and the mahogany body. It does feature Paul Gilbert's signature painted F-holes and eschews a tone control.

The PGM600 was introduced along with another odd-shaped PGM, the PGM700. Both were available for a limited time in Japan only. The PGM600 was discontinued in 2006.

Specifications

Specifications for PGM600
Year(s) produced: 1996
Sold in: Japan
Made in: Japan
Finish(es): Jewel Blue (JB)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
Set-in
Bridge:
Gibraltar fixed (10.5mm string spacing)
Tailpiece:
Quik Change w/ "cloud" ornament
Knob style:
Speed (gold)
Hardware color:
Chrome
Neck
Neck type:
IC
Neck material:
3-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Dot
Frets:
22 / jumbo
Machine heads:
Gotoh SG38
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio Super Distortion (H)
Neck pickup:
DiMarzio Super Distortion (H)
Controls:
Master volume / 5-way lever pickup selector
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle.png
Pickup switching diagram
Controls V5.png
Control layout
