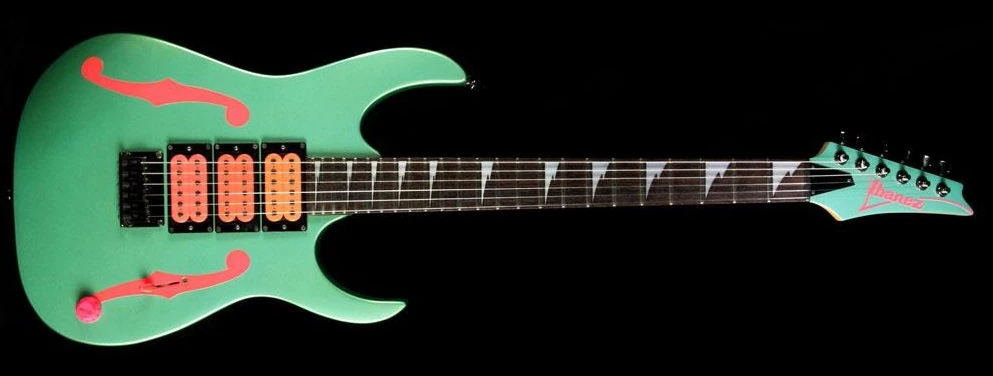

PGM200 FB
PGM200 Fountain Blue (more images) Red copyright sprite

The PGM200 is a PGM series solid body electric guitar model introduced by Ibanez in 1990. It is a signature model of American guitarist Paul Gilbert. It is the second PGM model following the PGM100 which was introduced the previous year.

One distinctive feature of this model is the triple humbucking pickup configuration. Other features include a basswood body, a Wizard neck, a standard hard-tail bridge and Paul Gilbert's signature painted F-holes.

The PGM200 was available only in Japan.

Paul Gilbert himself played a couple of custom guitars similar to the PGM200, including a red and blue triple humbucking hard-tail guitar and an HSH tremolo-equipped guitar featuring the PGM200 color scheme, which he later also converted into a hard-tail.

Specifications[]

Specifications for PGM200
Model name: PGM200
Year(s) offered: 1990–1991
Sold in: Japan
Made in: Japan
Finish(es): Fountain Blue (FB)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Gotoh GTC101 fixed
Knob style:
Top hat (pink)
Hardware color:
Cosmo black
Neck
Neck type:
Wizard
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Sharktooth
Frets:
24 / jumbo
Electronics
Pickup configuration:
HHH
Bridge pickup:
DiMarzio PAF Pro (H)
Middle pickup:
DiMarzio PAF Pro (H)
Neck pickup:
DiMarzio PAF Pro (H)
Controls:
Master volume / 5-way lever pickup selector

Images[]

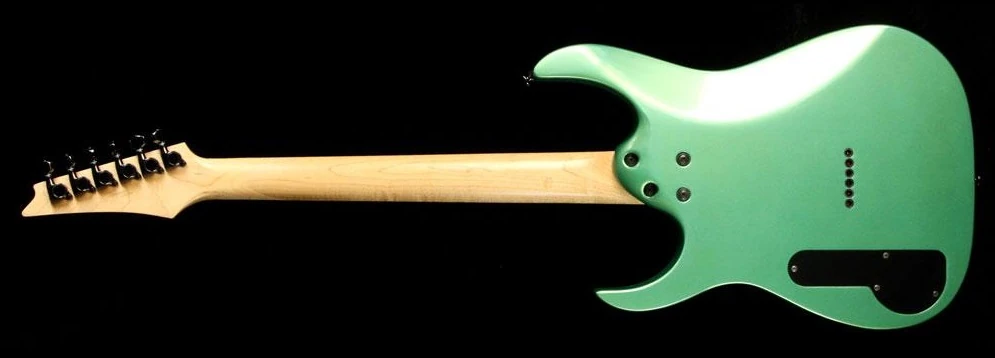

PGM200 rear
1990 Ibanez PGM200 ( Rear of body ) Red copyright sprite
Additional details

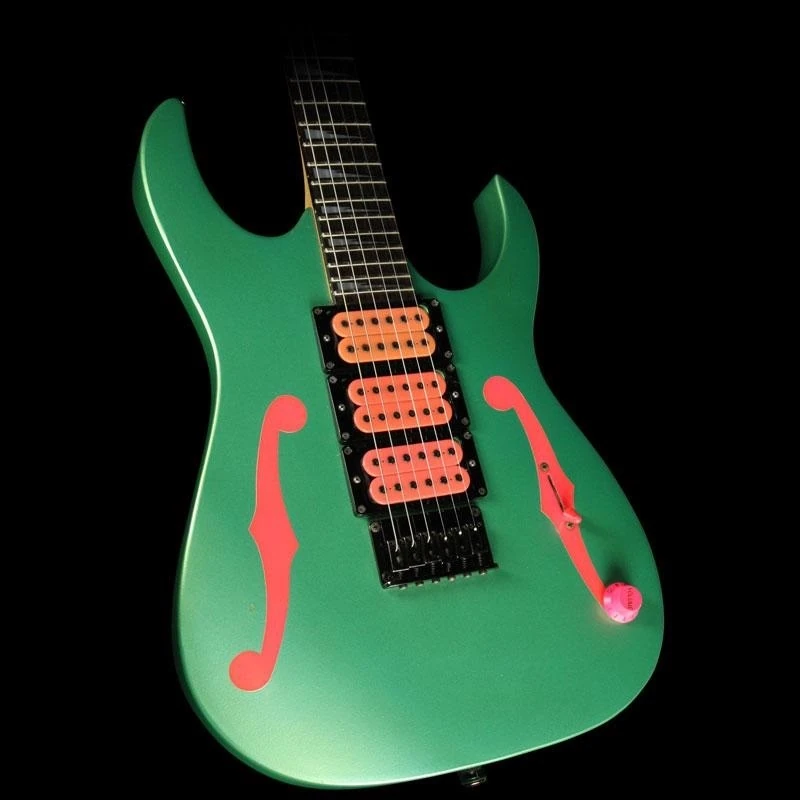

PGM200 body
Front of body

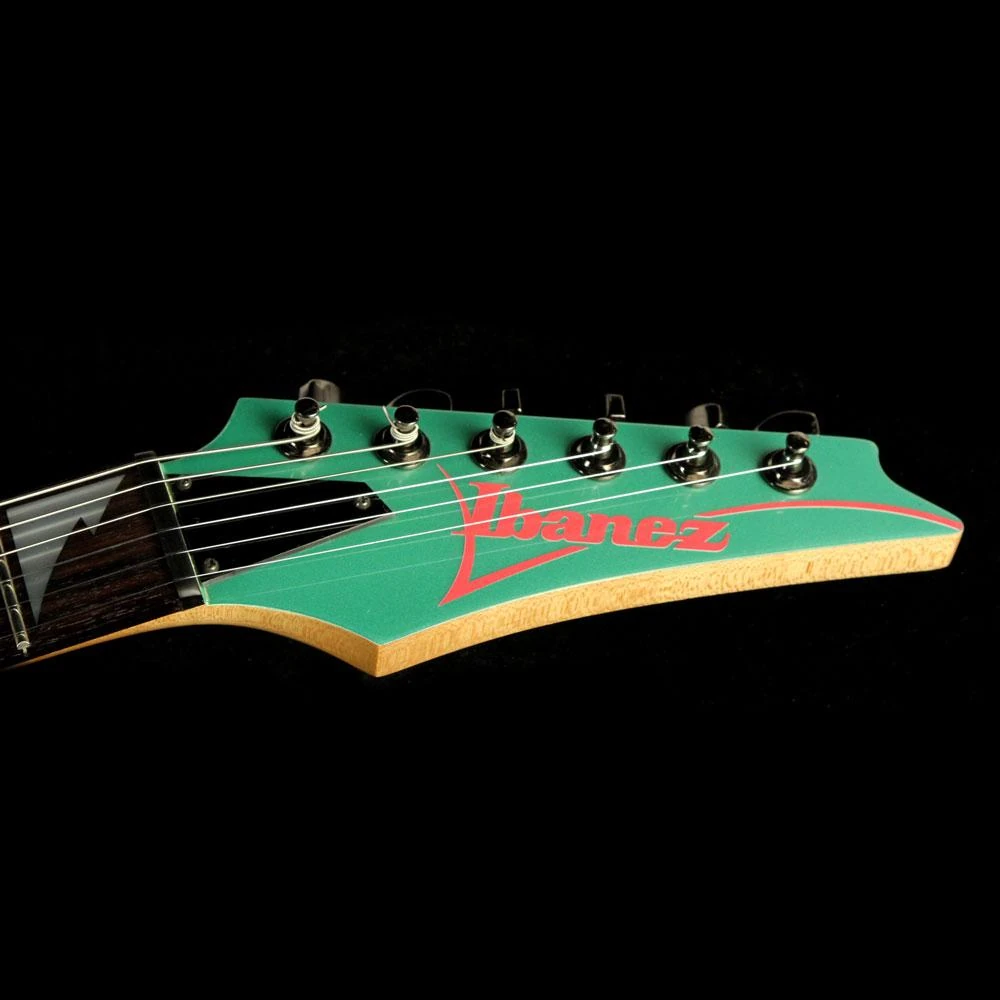

PGM200 headstock
Headstock

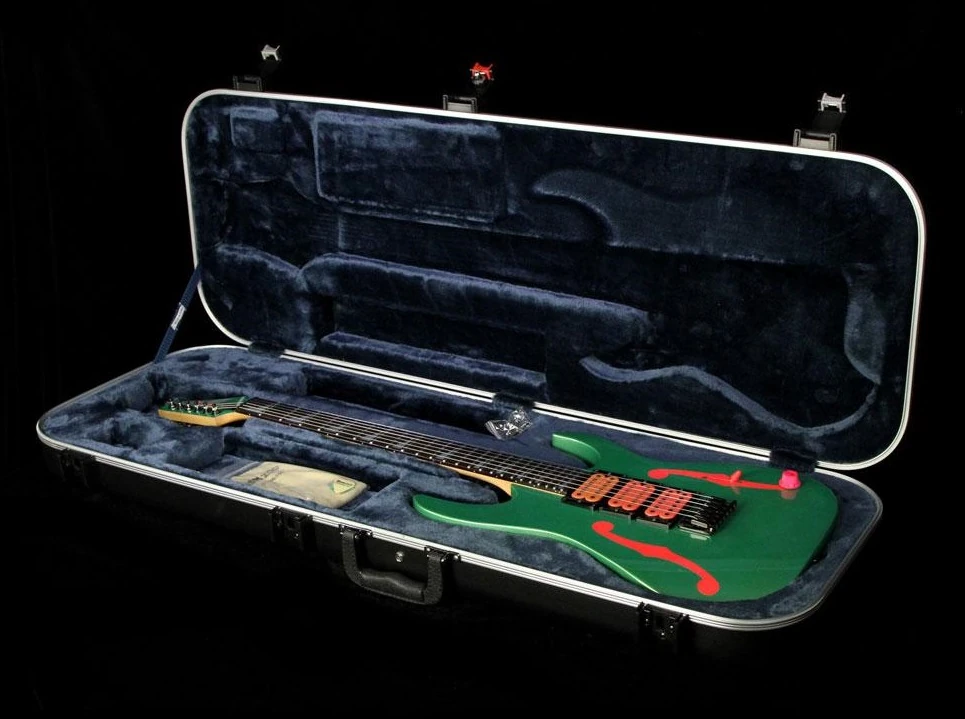

PGM200 Full
1990 Ibanez PGM200 ( Full set ) Red copyright sprite
