The PGB1L is a left-handed, four string solid body electric bass model introduced by Ibanez for 2007. It is a signature model for American bassist Paul Gray who was known primarily for his work with the American heavy metal band Slipknot. It was produced initially in South Korea; production moved to Indonesia for 2009.

The PGB1L features an ATK series double-cutaway swamp ash body bolted to a maple and walnut neck with a 22 fret rosewood fingerboard with special inlays at the second and twelfth frets. Components include a single Ibanez ATK triple-coil pickup, an ATK4 bridge, a plastic nut and Ibanez tuners with clover buttons.

For 2009, when production moved to Indonesia, several changes were introduced: the body material was changed to light ash, the finish was changed to burgundy wine, the neck was changed to laminated maple and the battery box was changed.

The PGB1 is a right-handed version (Gray was a left-handed player).

The PGB1L was discontinued shortly after Gray's untimely death in 2010.

Specifications

Specifications for PGB1L
Model name: PGB1L
Year(s) produced: 2007–2010
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: South Korea / Indonesia
Finish(es): Burgundy Wine (BGW) 2009–2010 / Transparent Black 2007–2008
Body
Body type:
Solid body
Body material:
2007–2008: Swamp ash
2009–2010: Light ash
Neck joint:
Five bolt AANJ
Bridge:
ATK4
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
PGB4
Neck material:
2007–2008: 5-piece maple/ walnut
2009–2010: 3-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
PGB special at 2nd & 12th frets
Frets:
22 / jumbo
Nut:
Black plastic (45mm)
Machine heads:
Ibanez w/ clover keys
Electronics/ Strings
Bridge pickup:
Ibanez ATK Triple-coil passive
Electronics:
Ibanez ATK 3-band EQ
Controls:
Single volume / 3-band EQ (bass, mid, & treble boost/cut) / pickup coil selector toggle
Battery:
9V
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.050/.070/.090/.110 (D'Addario)
Factory tuning:
1D,2A,3E,4B (B std.)

Images

Additional finishes/ details

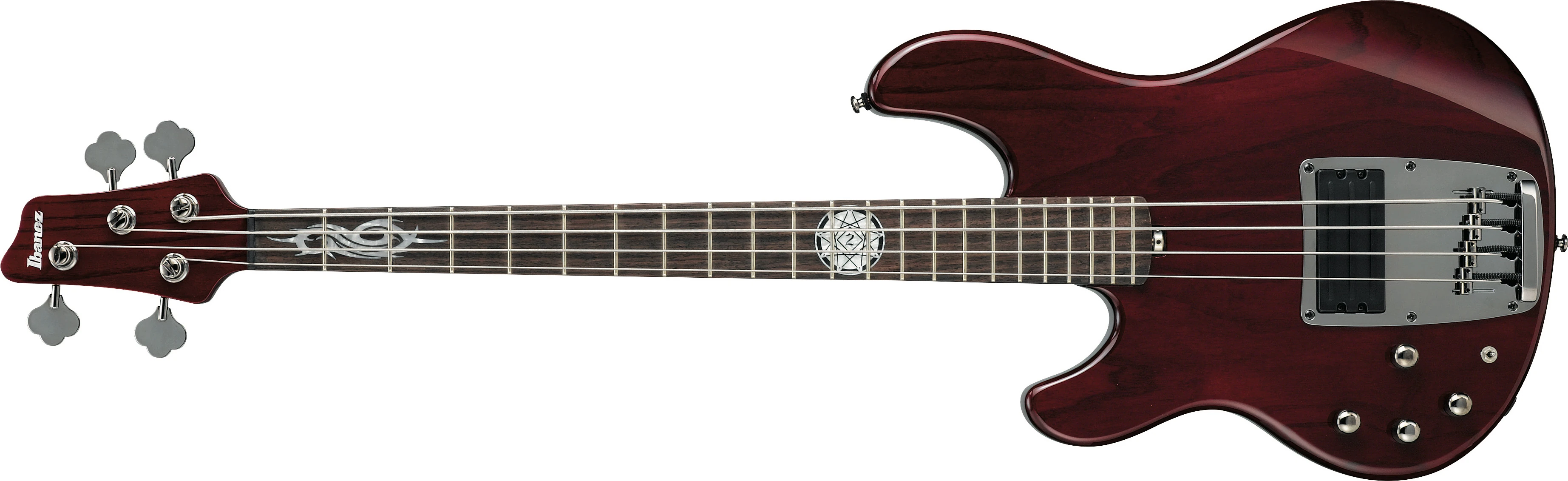

2009 PGB1L BGW.jpg
Burgundy Wine finish
PGB1TK PAINTEDNECK-BACK.jpg
Painted neck & 5-bolt joint

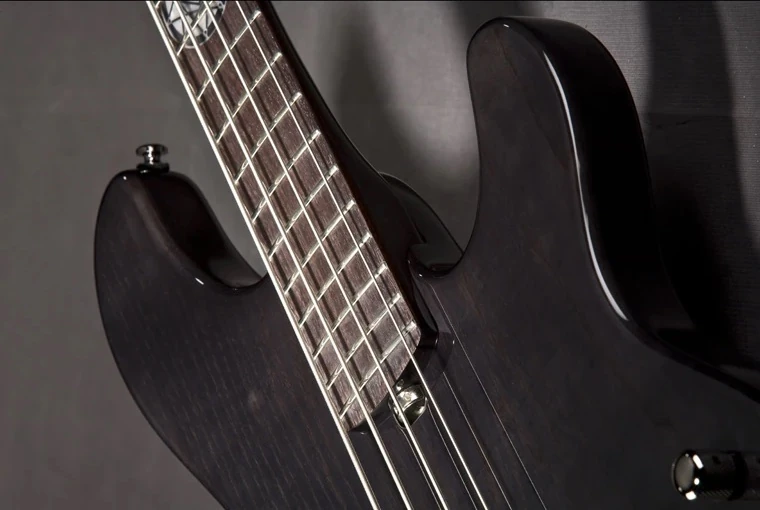

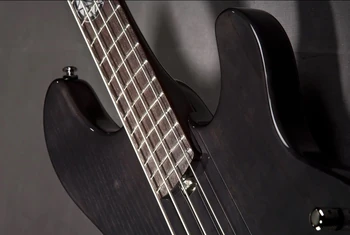

Pgb1tk finish.jpg
Truss rod adjuster at body end

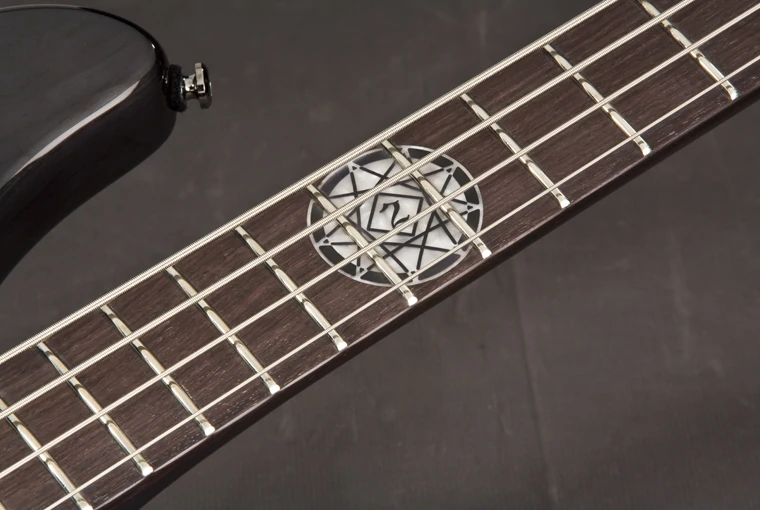

Pgb1rtk inlay.jpg
Twelfth fret "2" inlay

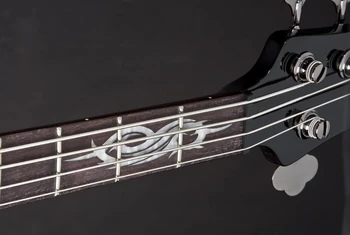

Pgb1rtk inlay2.jpg
Second fret Slipknot "S" logo inlay
PGB1L cavity-cover.jpg
Cavity cover with printed "Paul 2" autograph

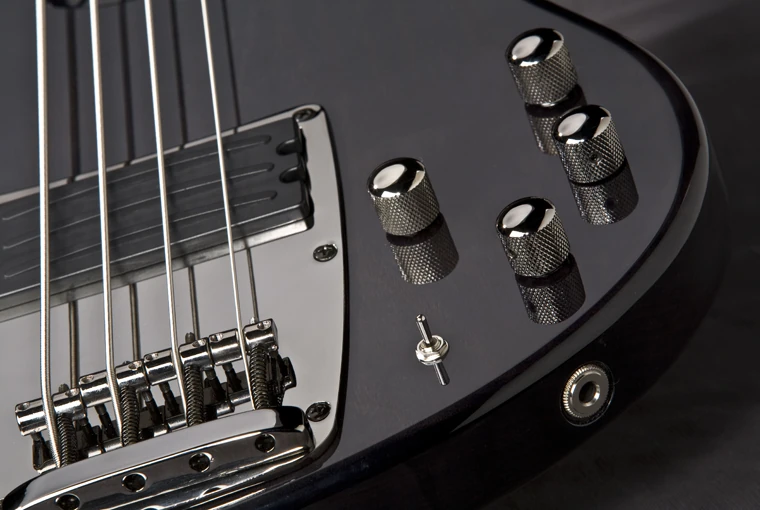

Pgb1tk eq.jpg
Bridge, pickup, controls & output

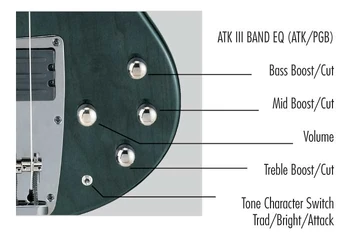

PGB-ATK controls-layout.jpg
Controls layout

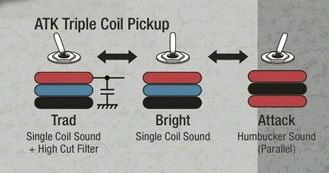

ATK TripleCoilPickup switching.png
Coil-selector switch
ATK-3-bandEQ freq-resp.jpg
EQ frequency response
