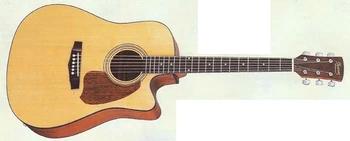

2003 PF5CE-NT
PF5CE Natural "2003–2004" (more images) Red copyright sprite

The PF5CE is a Performance series acoustic/ electric guitar model introduced by Ibanez for 1993. It was made in South Korea but production moved to China in 2000.

The PF10CE features a dreadnought body with a venetian cutaway and a laminated spruce top on mahogany back and sides with a high gloss finish. The round soundhole has a black & white acrylic rosette and a black pickguard. The maple neck has a 20-fret rosewood fingerboard with pearl dot position markers. Components include a compensated plastic saddle in a rosewood bridge with white bridge pins, a plastic nut, and Ibanez chrome die-cast tuning machines. Electronics consist of an Ibanez piezo pickup with volume and tone controls.

For 1994 the neck material was changed to mahogany and the body to nato wood. For 1995 the bridge pins were changed to black. For 1998 the electronics were updated with an AEQ30 "APC-PRO" active 3-band equalizer. For 2000 the body material was changed to mahogany and the electronics were updated with a Fishman AEQ40 4-band equalizer preamp. For 2003 a special rosette design was added.

The PF5 is a related acoustic model missing the cutaway and the piezo pickup.

The PF5CE was discontinued after 2004.

Specifications[]

Related content: Performance series | Models-icon
Specifications for PF5CE
Name: PF5CE
Year(s) offered: 1993–2004
Sold in: Europe 1995–1999 / USA
Made in: South Korea / China
Finishes: Natural (NT)
Body
Body type:
Acoustic
Body shape:
Dreadnought w/ Venetian cutaway
Dimensions:
  Length: 511mm/ 20⅛"
  Width: 400mm/ 14¾"
  Depth: 127mm/ 5"
Top:
  Material: Spruce (gloss)
  Bracing: X
  Finish: High gloss
  Binding: black and white
Back/sides:
  Material: "1993 ; 2000–2004": Mahogany
                 "1994–1999": Nato
  Finish: High gloss
Soundhole shape:
Round
Soundhole rosette:
"1993–2002": Black & white multi purfling
"2003–2004": Special design
Neck
Neck profile:
PF
Neck material:
"1993": 1-piece maple
"1994–2004": 1-piece mahogany
Scale length:
648mm/ 25½"
Fingerboard:
Rosewood w/ black binding
Inlays:
Pearl dot
Frets:
20 / medium nickel silver
Nut:
Plastic (48mm)
Machine heads:
Ibanez die-cast
Electronics/ Components
Pickup:
Piezo
Preamp:
"1993–1997": passive
"1998–1999": AEQ30 3-Band EQ
"2000–2004": AEQ40 4-Band EQ
Output jack(s):
¼" stereo end pin
Battery:
9V
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
"1993–1994 ; 1998–2004": white w/ black dots
"1995–1997": black w/ white dots
Saddle:
Plastic compensated
Hardware color:
Chrome
Pickguard:
"1993–1997": black
"1998–2004": Tortoise shell
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

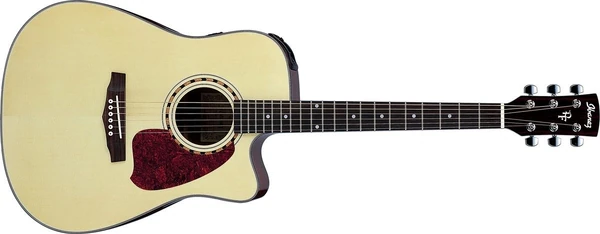

1998 PF5CE-NT
Natural "1998–2002"

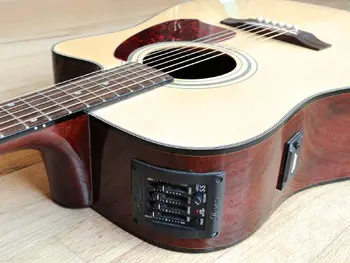

1999 AEQ30
AEQ30 (APC PRO) preamp
AEQ40
AEQ40 (AEQ-SS) preamp
