1990 PF40-12

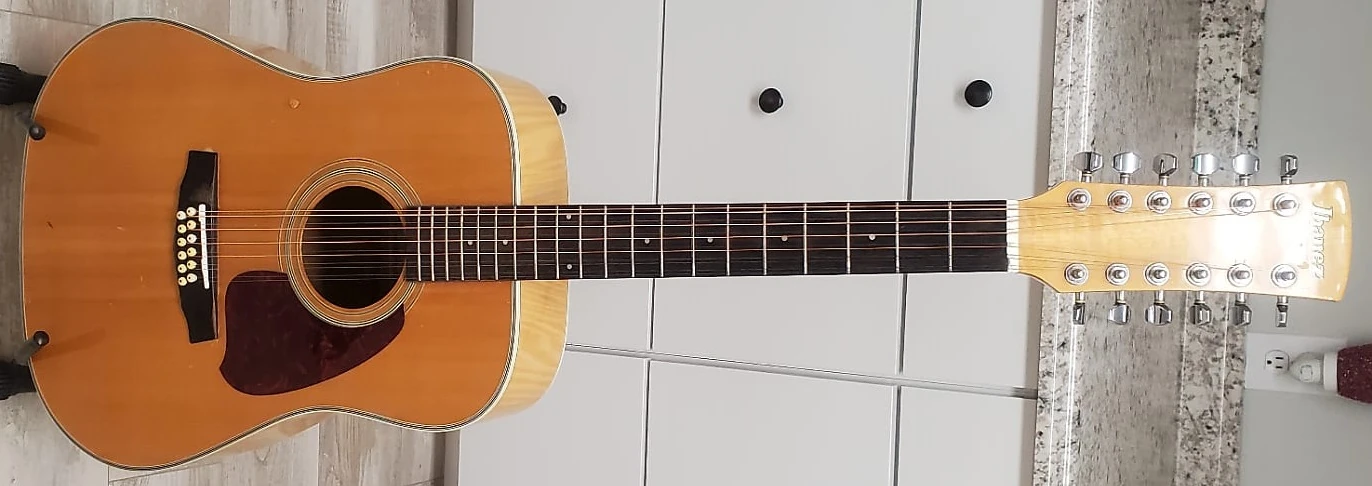

PF40-12 Natural (more images) Red copyright sprite

The PF40-12 is an Performance series 12-string acoustic guitar model introduced by Ibanez for 1990. It was made in Korea.

The PF40-12 features a dreadnought body with spruce top on flamed maple back and sides. The round soundhole is trimmed with black and white multi-line rosette and it has a shell color pickguard. The nato neck has a 20-fret rosewood fingerboard with small pearl dot position markers and a blonde headstock. Components include a plastic saddle on a rosewood bridge, a synthetic nut, and chrome plated machine heads.

The PF40 is a similar six-string model.

The PF40-12 was discontinued after 1990.

Specifications[]

Related content: Performance series | Models-icon
Specifications for PF40-12
Name: PF40-12
Year(s) offered: 1990
Sold in: Europe
Made in: South Korea
Finishes: Natural (NT)
Body
Body type:
Acoustic
Body shape:
Dreadnought
Dimensions:
  Body length: 19¾"
  Width: 16"
  Depth: 4½"
Top:
  Material: Spruce
  Finish: Natural (NT)
  Binding: black and white
Back/sides:
  Material: Flamed maple
  Strip inlay: black center stripe
  Finish: laminate
Soundhole shape:
Round
Soundhole rosette:
black and white multi-line purfling
Neck
Neck profile:
hand-shaped
Neck material:
1-piece nato
Neck joint:
dovetail
Scale length:
650mm
Fingerboard:
Rosewood w/ black and white binding
Inlays:
small pearl dots w/ white side dots
Frets:
20 / medium
Nut:
synthetic (48mm)
Machine heads:
Chrome covered
Components
Bridge:
rosewood (11mm string spacing)
Bridge pins:
white w/ black dots
Saddle:
plastic
Hardware color:
chrome
Pickguard:
Shell color
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

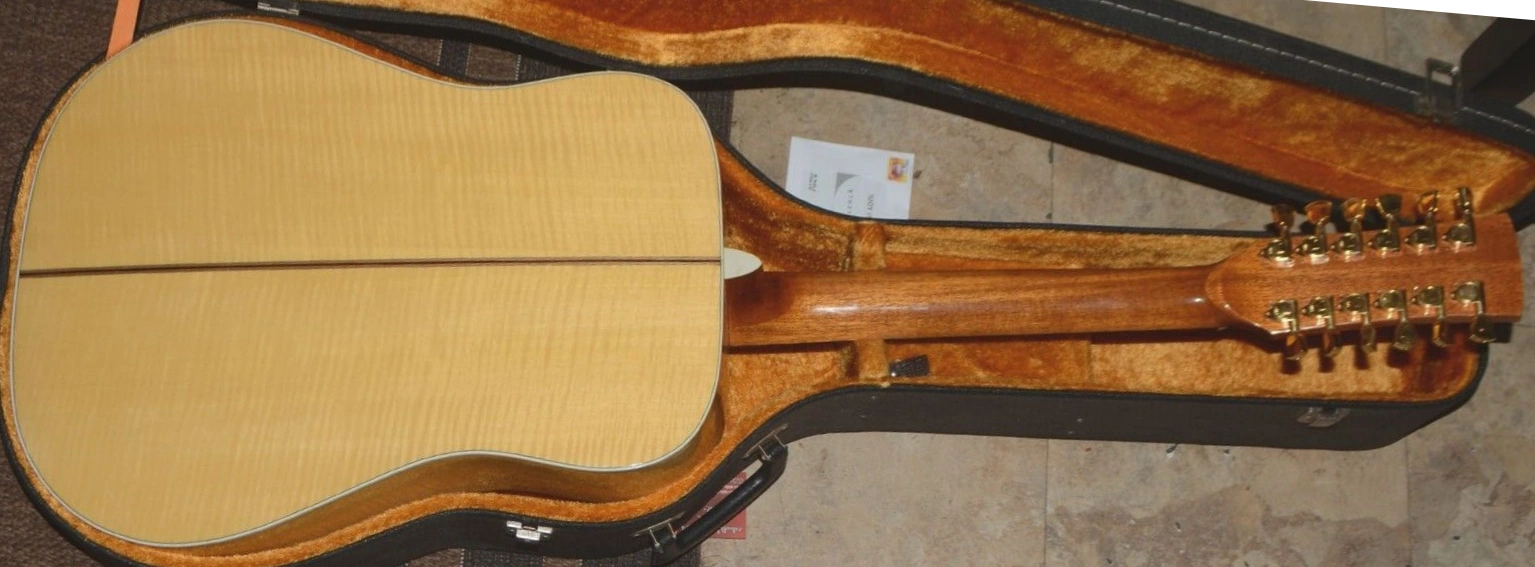

1990 PF40-12 rear
Body rear
