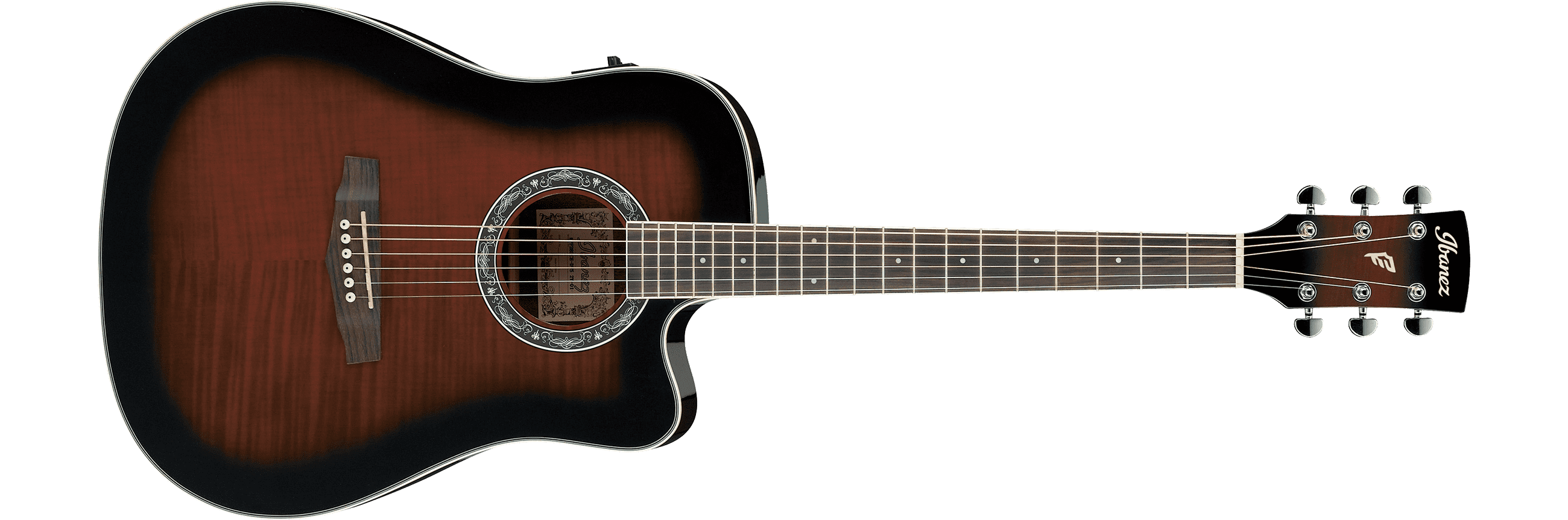

2019 PF28ECE DVS 2Y 06
PF28ECE Dark Violin Sunburst High Gloss Red copyright sprite

The PF28ECE is a Performance series acoustic/electric guitar model introduced by Ibanez for 2012. It is made in China.

The PF28ECE features a dreadnought body shape with a Venetian cutaway and a laminated flamed maple top with black and ivory multi-binding on mahogany back and sides with a high gloss finish. The round soundhole has a decorated waterslide decal rosette. The mahogany neck has a 20-fret rosewood fingerboard with binding and small white dot position markers. Components include a compensated Ivorex II saddle in a rosewood bridge with white Ibanez Advantage bridge pins, an Ivorex II nut, and chrome Ibanez tuning machines. Electronics consist of a Fishman Sonicore undersaddle pickup connected to an Ibanez AEQ-SST Shape Shifter preamp with onboard tuner powered by a 9V battery, and balanced XLR and ¼" stereo outputs.

For 2013 the Ivorex II saddle and nut were replaced with plastic. For 2016 the preamp was replaced with the Ibanez AEQ-SP2. For 2018 the mahogany back and sides were replaced with sapele and the rosewood fretboard and bridge were replaced with purpleheart. For 2019 the mahogany neck was replaced with okoume.

Specifications

Specifications for PF28ECE
Years: 2012–2020
Areas: USA
Made in: China
Finishes: Dark Violin Sunburst High Gloss (DVS) / Transparent Red Sunburst High Gloss (TRS) / Vintage Violin Sunburst High Gloss (VV) 2012
Body
Body type:
Acoustic
Body shape:
Dreadnought w/ Venetian cutaway
Dimensions:
  Length: 508mm/ 20"
  Width: 400mm/ 15¾"
  Depth: 111mm/ 4⅜"
Top:

  Material: Flamed maple (laminated)
  Finish: Open pore
  Binding: Black & ivory multi

Back/sides:

  Material: 2012–2017: Mahogany
2018–2020: Sapele
  Finish: Open pore

Soundhole shape:
Round
Soundhole rosette:
Waterslide decal
Neck
Neck profile:
PF
Neck material:
2012–2018: 1-piece mahogany
2019–2020: 1-piece okoume
Neck joint:
Dovetail
Scale length:
650mm/ 25.6"
Fingerboard:
2012–2017: Rosewood w/ binding
2018–2020: Purpleheart w/ binding
Inlays:
Small white dot
Frets:
20
Nut:
2012: Ivorex II
2013–2020: Plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Components
Pickup:
Fishman Sonicore
Preamp:
2012–2015: Ibanez AEQ-SST ShapeShifter w/ onboard tuner
2016–2020: Ibanez AEQ-SP2 w/ onboard tuner
Output jack(s):
Balanced XLR & ¼" stereo
Battery:
2012–2015: Two AA
2016–2020: 9V
Bridge:
2012–2017: Rosewood
2018–2020: Purpleheart (11mm string spacing)
Bridge pins:
Ibanez Advantage (white w/ black dots)
Saddle:
2012: Ivorex II compensated
2013–2020: Plastic compensated
Hardware color:
Chrome
Strings (factory):
2012–2016: .012/.016/.024/.032/.042/.053 (D'Addario EXP16)
2017–2020: .012/.016/.024/.032/.042/.053 (Ibanez IACS6C coated)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

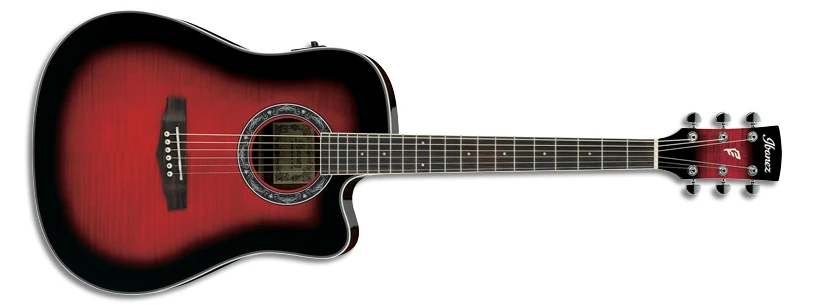

2018 PF28ECE TRS 2Y 05
Transparent Red Sunburst High Gloss

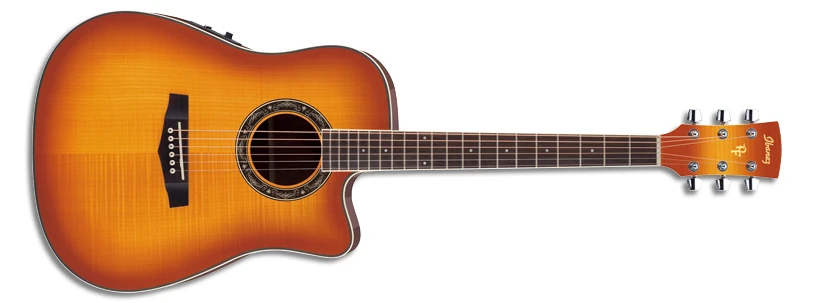

2012 PF28ECE VV 3R 01
Vintage Violin High Gloss

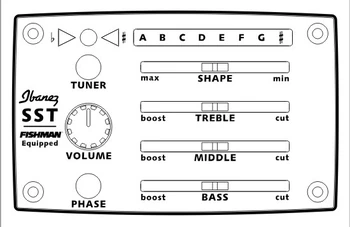

Ibanez SST preamp diagram
SST Shape Shifter preamp diagram

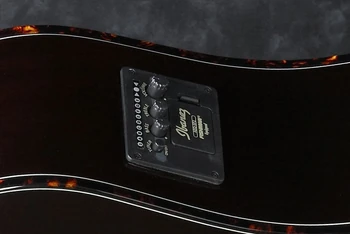

AEQ-SP2 preamp
AEQ-SP2 preamp controls

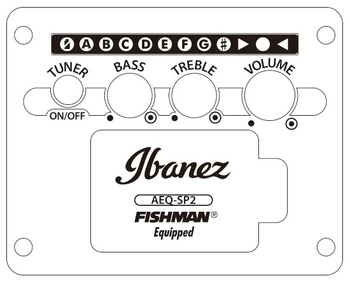

AEQ-SP2 preamp diagram
AEQ-SP2 preamp diagram
