2020 PF1512ECE NT 1P 04

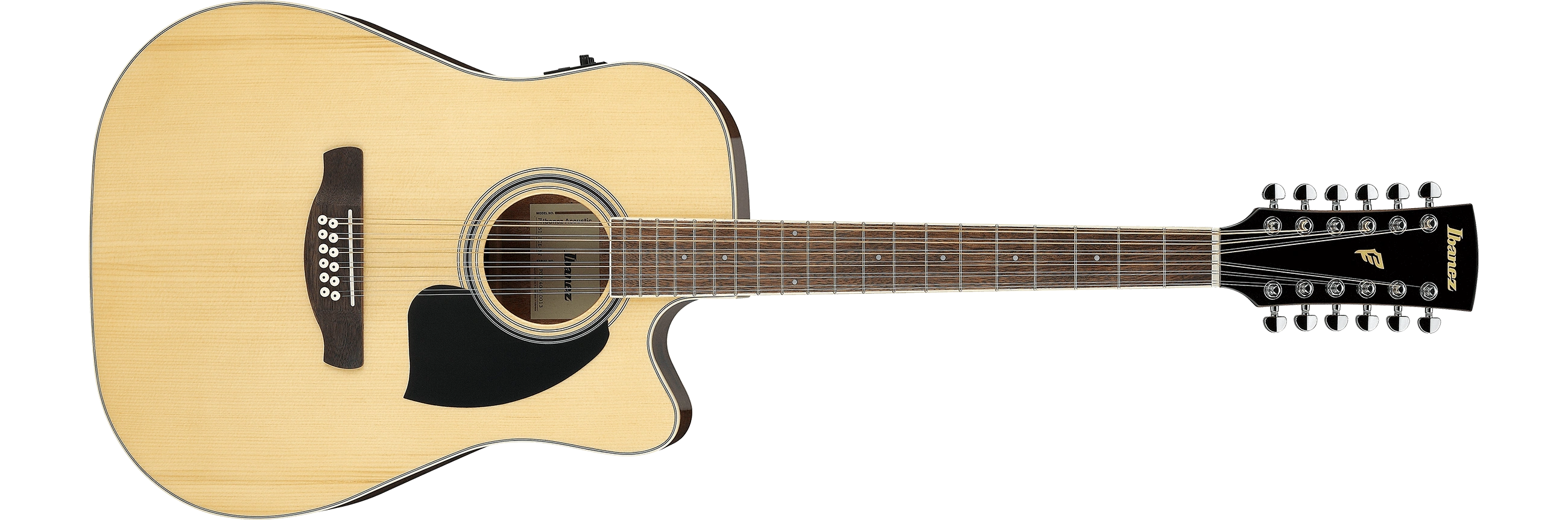

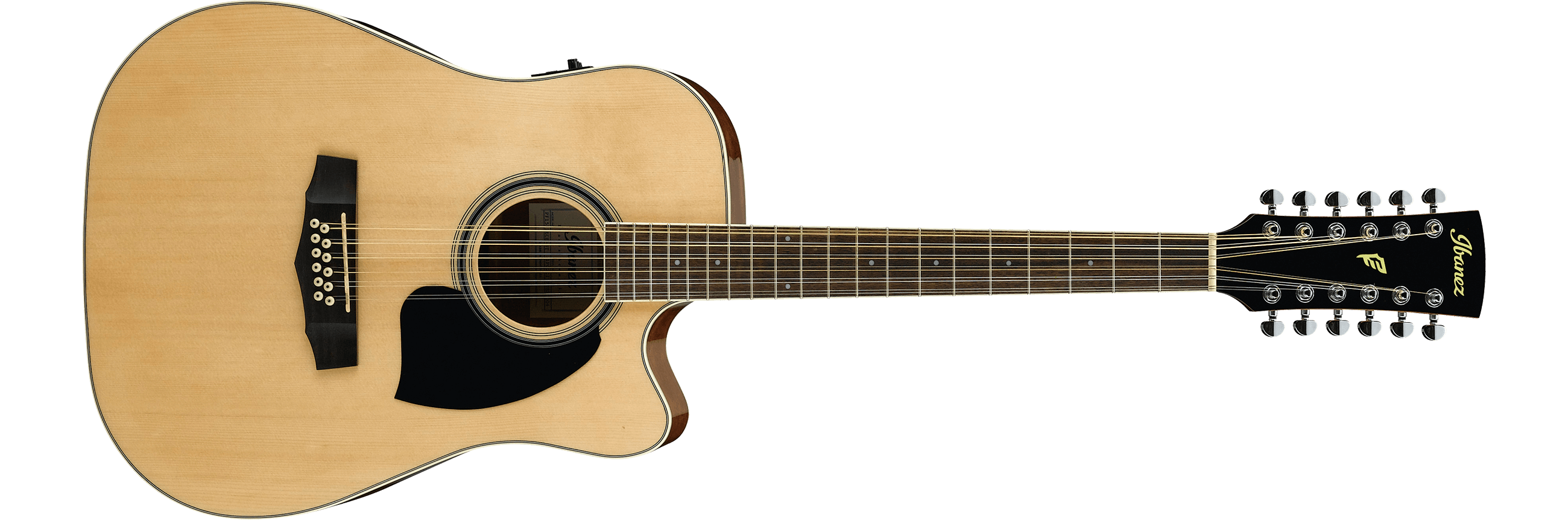

PF1512ECE Natural (more images) Red copyright sprite

The PF1512ECE is a Performance series acoustic/ electric guitar model introduced by Ibanez for 2018. It is made in Indonesia.

The PF15ECE features a dreadnought body with a Venetian cutaway and a laminated spruce top on African mahogany back and sides with a high gloss finish. The round soundhole has a black and white acrylic rosette and a black pickguard. The mahogany neck has a 20-fret laurel fingerboard with small white dot position markers. Components include a compensated plastic saddle in a laurel bridge with ivory Ibanez Advantage bridge pins, a plastic nut, and chrome Ibanez tuning machines. Electronics consist of an Ibanez undersaddle pickup connected to an AEQ200T preamp with on-board tuner powered by a 9V battery and a 1/4" stereo end-pin output jack.

For 2019 the back, sides and neck were changed to okoume and the neck was changed to nyatoh.

The PF15ECE is a six string version. The PF1512 is a similar acoustic model without a cutaway.

Specifications

Specifications for PF1512ECE
Years: 2018–2020
Areas: Asia & Africa / Europe / North & South America and Oceania
Made in: Indonesia
Finishes: Black High Gloss (BK) 2018 / Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
Dreadnought w/ Venetian cutaway
Dimensions:
  Length: 502mm/ 19¾"
  Width: 400mm/ 15¾"
  Depth: 127mm/ 5"
Top:

  Material: Spruce (laminated)
  Bracing: X
  Finish: High gloss
  Binding: Ivory

Back/sides:

  Material: 2018: African mahogany
                2019–2020: Okoume

Soundhole shape:
Round
Soundhole rosette:
Black & white multi
Neck
Neck profile:
PF
Neck material:
2018: 1-piece mahogany
2019–2020: 1-piece nyatoh
Scale length:
648mm/ 25½"
Fingerboard:
Laurel w/ ivory binding
Inlays:
Small white dot
Frets:
20 / medium
Nut:
Plastic (43mm)
Machine heads:
Ibanez die-cast w/ butterbean buttons
Electronics/ Components
Pickup:
Ibanez Under Saddle
Preamp:
Ibanez AEQ-2T w/ on-board tuner
Output jack(s):
¼" stereo end pin
Battery:
9V
Bridge:
Laurel (11mm string spacing)
Bridge pins:
Ibanez Advantage (ivory w/ black dot)
Saddle:
Plastic compensated
Hardware color:
Chrome
Pickguard:
Black
Strings (factory):
.010/.010, .014/.014. .023/.008, .030/.012, .039/.018, .047/.027 (Ibanez IACS12C coated)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details
Black High Gloss
AEQ200T preamp
AEQ200T preamp controls
Ibanez AEQ-2T diagram
AEQ2T preamp controls
Wimage An image for this article is missing!
An image of the PF1512ECE Black (BK) is wanted for this article. You can help by finding, uploading and adding it!
