For the later model with the same name, see PF10 .

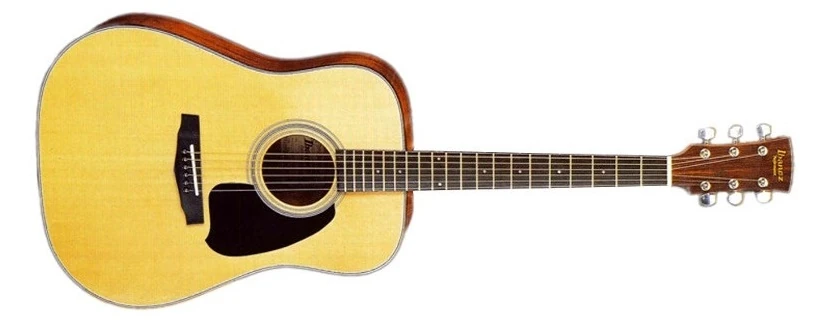

1986 PF10-NT
PF10 Natural (more images) Red copyright sprite

The PF10 is a Performance series acoustic guitar model introduced by Ibanez for 1986. It was made in Korea.

The PF10 features a dreadnought body with a spruce top on mahogany back and sides with a low gloss finish. The round soundhole has a black and white rosette and a black pickguard. The mahogany neck has a 20-fret rosewood fingerboard with small white dot position markers. Components include a plastic saddle in a rosewood bridge with black bridge pins, a plastic nut, and chrome Ibanez die-cast tuning machines.

For 1989 the neck material was changed to nato wood. For 1994 the materials on the back and sides of the body changed to nato wood and the neck to mahogany. For 1997 the material on the back and sides are mahogany and the bridge pins to white with black dots.

The PF10L is a left-handed version. The PF10-12 is a similar 12-string model. The PF10CE is an electric / acoustic version.

The PF10 was discontinued after 1998.

Specifications[]

Related content: Performance series | Models-icon
Specifications for PF10 (1986–1998)
Name: PF10 (1986–1998)
Year(s) offered: 1986–1998
Sold in: Europe / USA
Made in: South Korea
Finishes: Black (BK) 1990–1997 / Marine Sunburst (MS) 1998 Europe only / Natural (NT) / Tobacco Sunburst (TS) 1998 Europe only
Body
Body type:
Acoustic
Body shape:
Dreadnought
Dimensions:
  Body length: 502mm/ 19¾"
  Width: 394mm/ 15½"
  Depth: 127mm/ 5"
Top:
  Material: Spruce (laminated)
  Bracing: X
  Finish: Low gloss
  Binding: Black and white
Back/sides:
  Material: "1986–1993": Mahogany
                 "1994–1996": Nato
                 "1997–1998": Mahogany
  Finish: Low gloss
Soundhole shape:
Round
Soundhole rosette:
Black and white
Neck
Neck profile:
PF
Neck material:
"1986–1989": 1-piece mahogany
"1989–1993": 1-piece nato
"1994–1998": 1-piece mahogany
Neck finish:
Satin
Scale length:
650mm
Fingerboard:
Rosewood w/ binding
Inlays:
Small white dot
Frets:
20 / medium
Nut:
Plastic (43mm)
Machine heads:
Ibanez die-cast
Components
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
"1986–1996": black w/ white dots
"1997–1998" white w/ black dots
Saddle:
Plastic
Hardware color:
Chrome
Pickguard:
Black
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Other available finishes

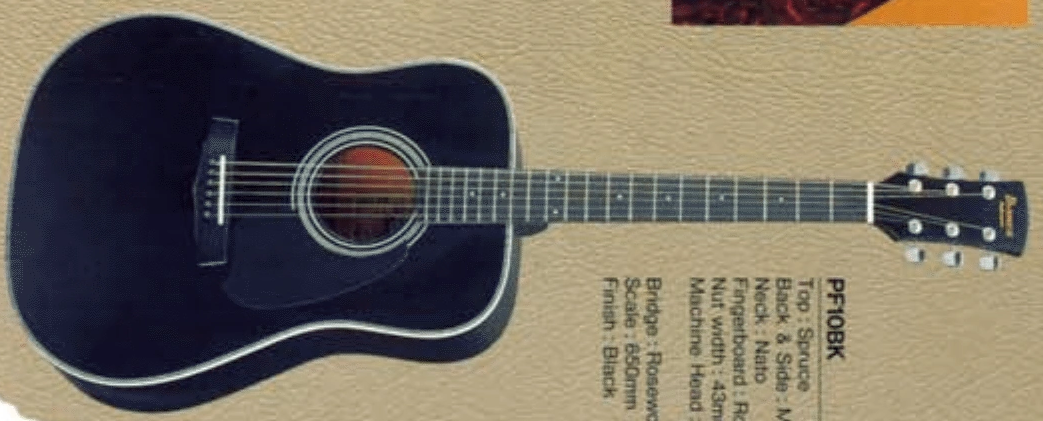

1991 PF10-BK
Black
1998 PF10-MS
Marine Sunburst
1998 PF10-TS
Tobacco Sunburst
