For the other models with the same name, see PF10 (disambiguation) .

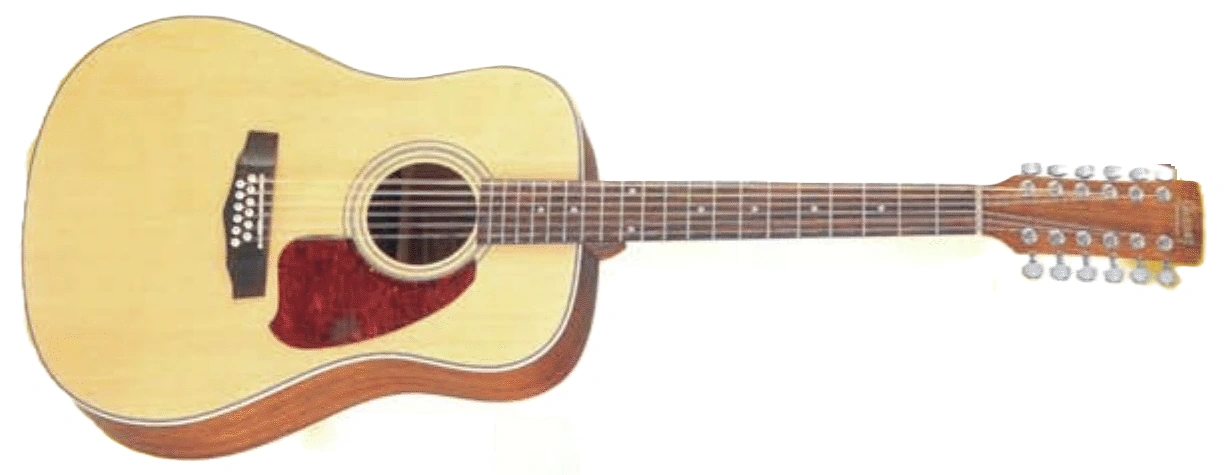

1986 PF10-12 NT
PF10-12 Natural (more images) Red copyright sprite

The PF10-12 (also reffered as the PF1012) is an Performance series 12-string acoustic guitar model introduced by Ibanez for 1986. It was made in Korea.

The PF10-12 features a dreadnought body with spruce top on mahogany back and sides. The round soundhole is trimmed with black and white multi-line rosette and a black pickguard. The mahogany neck has a 20-fret rosewood fingerboard with small pearl dot position markers and a matching headstock. Components include a plastic saddle on a rosewood bridge, a bone nut, and chrome covered machine heads.

For 1990 the neck material was changed to nato wood and a new black finish was added. For 1997 the bridge pins was changed to white with black dots and the pickguard to tortoise shell and the neck material was changed to mahogany.

The PF10 is a similar six-string model.

The PF10-12 was discontinued after 1998.

Specifications[]

Related content: Performance series | Models-icon
Specifications for PF10-12 / PF1012
Name: PF10-12 / PF1012
Year(s) offered: 1986—1998
Sold in: Europe / USA
Made in: South Korea
Price: MSRP: US$:259.95 (1990)
Finishes: Black (BK) 1990—1993 Europe only / Natural (NT)
Body
Body type:
Acoustic
Body shape:
Dreadnought
Dimensions:
  Body length: 19¾"
  Width: 16"
  Depth: 4½"
Top:
  Material: Spruce
  Finish: Natural (NT)
  Binding: black and white
Back/sides:
  Material: Mahogany
  Strip inlay: black center stripe
  Finish: laminate
Soundhole shape:
Round
Soundhole rosette:
black and white multi-line purfling
Neck
Neck profile:
hand-shaped
Neck material:
"1986—1989": 1-piece mahogany
"1990—1996": 1-piece nato
"1997—1998": 1-piece mahogany
Neck joint:
dovetail
Scale length:
650mm
Fingerboard:
Rosewood w/ black and white binding
Inlays:
small pearl dots w/ white side dots
Frets:
20 / medium
Nut:
Bone (48mm)
Machine heads:
chrome covered
Components
Bridge:
rosewood (11mm string spacing)
Bridge pins:
"1986—1996": black w/ white dots
"1997—1998": white w/ black dots
Saddle:
plastic
Hardware color:
chrome
Pickguard:
"1986—1996": black
"1997—1998": tortoise shell
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details / finishes

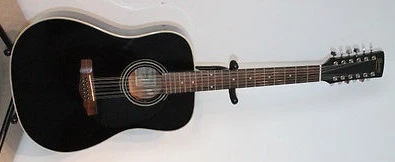

PF10-12 BK
Black

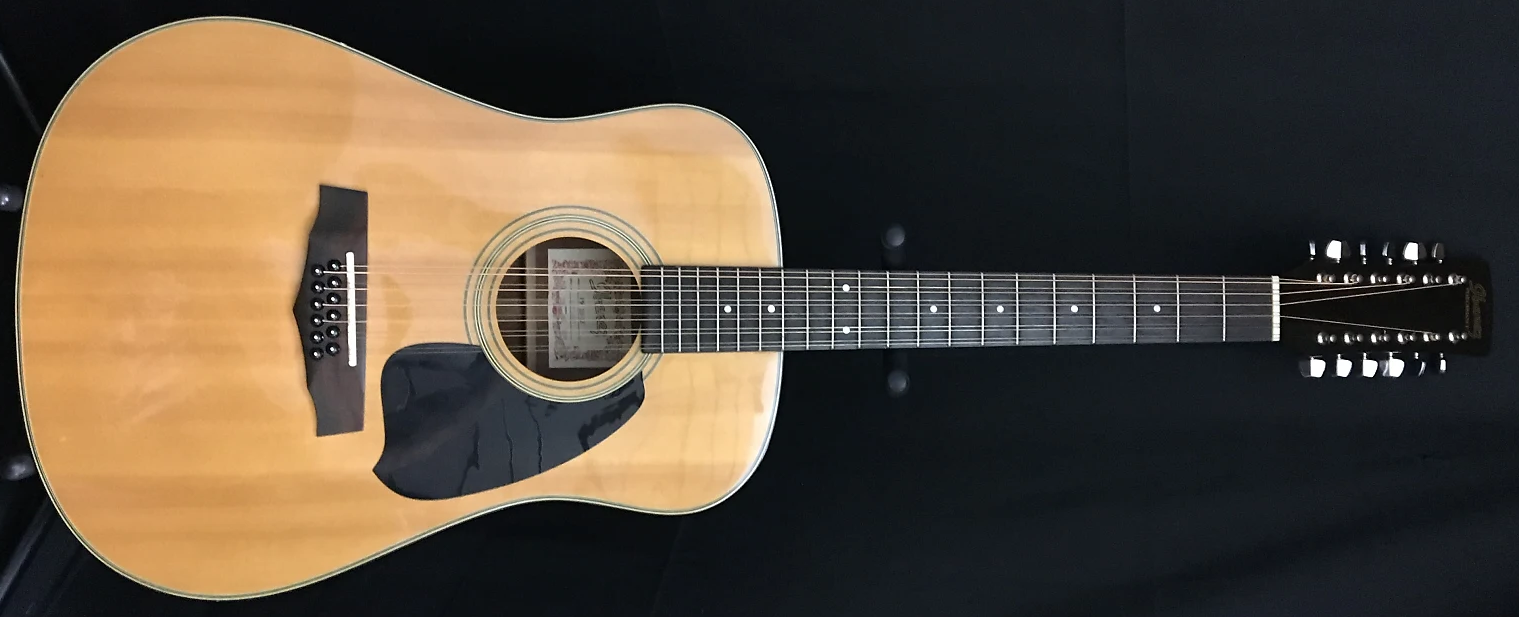

1997 PF10-12 NT
Natural (1997-1998)
