The HS1, an humbucker-sized, single-coil pickup on the DN400 Enlarge sprite

Other pickups made by Ibanez which don't belong to any regular line. Most of them are pickups from the late 80's, mid 90's and not much is known about them.

Some of them are very exclusive pickups which are found on non-standard series.

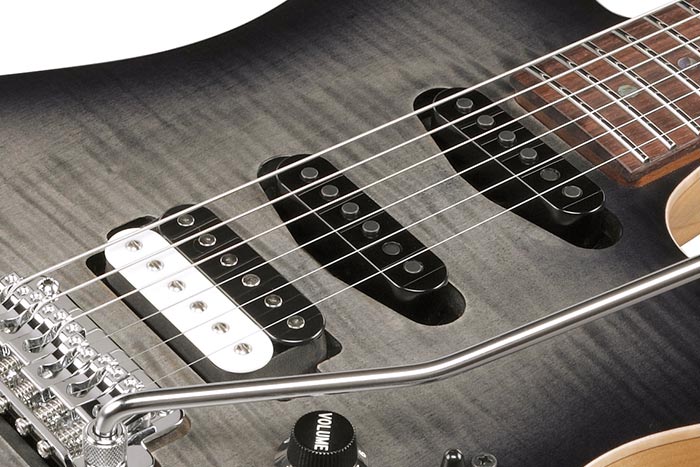

List of pickups

1970s through 1990s pickups

AH Special

AH Special
Brand:Ibanez
Year introduced:1985
Construction:Humbucker
Position:Bridge/ neck
Magnet:Alnico
Used in:AH10, AH20
AH Special pickup
Description:Custom wound for Allan Holdsworth's signature guitars. Features alnico magnets and custom coil winding for a clear, smooth, warm tone. All twelve polepieces are adjustable to allow maximum control over string-to-string volume.


GB Special

GB Special bridge
Brand:Ibanez
Model no.:3PU1J1GB2G
Year introduced:1977
Construction:Humbucker
Position:Bridge
Magnet:Alnico
Used in:GB10
GB-Special bridge 3PU1J1GB2G 00 01
Description:Custom wound, floating pickups designed with George Benson. Delivers warm and well-rounded output with less feedback.[1]


GB Special neck
Brand:Ibanez
Model no.:3PU1J1GB1G
Year introduced:1977
Construction:Humbucker
Position:Neck
Magnet:Alnico
Used in:GB10
GB-Special neck 3PU1J1GB1G 00 01
Description:Custom wound, floating pickups designed with George Benson. Delivers warm and well-rounded output with less feedback.[1]


GRP90

GRP90
Brand:Ibanez
Year introduced:1995
Construction:Single coil pickup
Position:Neck/ Bridge
DC resistance:7.4 KΩ (measured)
Used in:GR220
Description:Soapbar P-90 style single-coil pickup with ivory covers.


HB2

HB2
Brand:Ibanez
Model no.:HB2
Year introduced:1991
Construction:Humbucker
Position:Bridge
Used in:RG565, ICJ100WZ, RBM1, RBM100, RBM400
Description:Has one traditional coil and one with a blade. Delivers a "fat", harmonically active sound. The most powerful lead pickup in the American-Designed series.


HB10

HB10
Model no.:HB10
Year introduced:1994
Construction:Humbucker
Position:Bridge
Used in:RBM10
Description:


IBZ

IBZ front
Brand:Ibanez
Model no.:YE108F[2]
Construction:Humbucker
Position:Neck
Magnet:Alnico
DC resistance:12.31 KΩ
Resonant frequency:3.60 kHz
Wiring:4 conductor
IBZ neck pickup
Description:Triple magnet pickup for a hot, fat sound. Delivers clean mid-range punch. Cast plastic cover.[2]


IBZ rear
Brand:Ibanez
Model no.:YE108R[2]
Construction:Humbucker
Position:Bridge
Magnet:Alnico
DC resistance:12.47 KΩ
Resonant frequency:3.95 kHz
Wiring:4 conductor
1985 Humbucker output graph
Description:Triple magnet pickup for a hot, fat sound. Delivers bright mid-range punch. Cast plastic cover.[2]


SB

SB
Brand:Ibanez
Year introduced:1983
Construction:Single coil pickup
Position:Any
Wiring:2 conductor
Used in:RS100
SB pickups
Description:Covered, blade style single coil. Offers excellent output without exerting a strong pull on the strings for a clear and pure tone.[3]


SB1

SB1
Brand:Ibanez
Construction:Humbucker
Position:Neck/ Middle
Used in:RG565, RBM1
Description:A single-coil-sized humbucker, twin blade, which often comes along with the HB2 humbucker (see above). Can be used in the neck position, like the RG565 or in the middle and neck positions as seen on the RBM series (Reb Beach signatures), like the RBM1.


SB2

SB2
Brand:Ibanez
Construction:Humbucker
Position:Neck/ Middle
Used in:542R, FGM400
Description:A single-coil-sized humbucker, twin blade like the SB1. Can be found in the neck/ mid position either with a SB1 in the bridge, or with Axis pickups in the bridge.


SB10

SB10
Brand:Ibanez
Model no.:SB10
Construction:Humbucker
Position:Neck/ Middle
Used in:RBM10
Description:A single-coil-sized humbucker, twin blade like the SB1.


SL Special

SL Special
Brand:Ibanez
Model no.:YE109[2]
Construction:Humbucker
Position:Bridge
DC resistance:13.72 KΩ
Resonant frequency:3.75 kHz
Wiring:2 conductor
Used in:RS1010SL
Description:Custom pickup for Steve Lukather signature guitar. Similar to the Super 58 but with additional windings for higher output.[4]


Super 5

Super 5
Brand:Ibanez
Model no.:YE153[2]
Construction:Single coil pickup
Position:Neck / middle
DC resistance:7.75 KΩ
Resonant frequency:5.25 kHz
Wiring:2 conductor
1985 Single-coil output graph
Description:Traditional molded pickup with six exposed polepieces. Cast inside to create a smooth, sharp tone.[2]


Super 6

Super 6
Brand:Ibanez
Year introduced:1983
Construction:Single coil pickup
Position:Any
Wiring:2 conductor
Used in:RS405
Super 6 pickups
Description:Ibanez claims these were the hottest single coils of their type. They have a new magnet structure and twice the windings of a traditional single coil of their era. They deliver high output with clarity, fullness and excellent top end.[5]


Super Power 6

Super Power 6
Brand:Ibanez
Year introduced:1983
Construction:Single coil pickup
Position:Any
Magnet:Alnico
Wiring:2 conductor
Used in:RS505, RS1500
Ibanez Super Power 6 pickup
Description:Hot single-coil pickup with a unique coil design which offers a wide frequency range.[6]


Super 7

Super 7 / Super 7F / Super 7FT
Brand:Ibanez
Model no.:YE154[2]
Construction:Single coil pickup
Position:Neck / middle
DC resistance:4.05 KΩ
Resonant frequency:6.05 kHz
Wiring:2 conductor
Used in:RS440
Super7F-Super7FT pickups
Description:Delivers warm, bright tone. 42 gauge wire and plastic cover. Offers powerful clear sound even at low volume. Polarity is reversed for middle pickup application.[2]

Offered with three separate covers with identical internals:
Super 7 has exposed pole pieces
Super 7F has a flat cover (hidden polepieces)
Super 7FT has a "tub" style direct-mount high tech cover which is designed to offer increased sustain.[7][8]


V2

V2
Brand:Ibanez
Year introduced:1979 (?)
Construction:Humbucker
Position:Bridge/ neck
Wiring:3 conductor
Used in:DT555, RS400
Ibanez V2 humbucker
Description:Hot, high-output humbucker.[9] Delivers a combination of high output and solid upper midrange response.[10]

V5

V5
Brand:Ibanez
Model no.:YE107[2]
Construction:Humbucker
Position:Bridge/ neck
DC resistance:16.5 KΩ
Resonant frequency:5.25 kHz
Wiring:4 conductor
Used in:RS440, DT250, DT350
V5 humbucker
Description:Delivers powerful mid-range punch.[2] Arched bladed bar (58mm x 5mm) balances each string and eliminate volume deterioration caused by string bending. Powerful magnetic field enables marvelous sustain and high output. Wax potting results in a smooth and warm distortion.[11]

The V7 is a single-coil pickup with a similar design.


V6F

V6F
Model no.:V6F
Construction:Humbucker
Position:Neck/ Bridge
Used in:RG1421F, others
Description:


V7 (single coil)

V7 / V7T
Brand:Ibanez
Model no.:YE155[2]
Construction:Single coil pickup
Position:Any
DC resistance:3.91 KΩ
Resonant frequency:6.15 kHz
Wiring:2 conductor
Used in:RS430
V7 single coil
Description:Delivers powerful, bright tone. 42 gauge wire.[2] Arched bladed bar (58mm x 5mm) balances each string and eliminate volume deterioration caused by string bending. Offers great lows and brilliant highs. Single-coil version of the V5 pickup.[12]

The V7T has identical internals as the V7 with a molded in-body direct mounting cover.[13]

This pickup is not related to the similarly named V7 humbucker.


2000s pickups

Classic Elite

Classic Elite
Brand:Ibanez
Model no.:3PUCEN1 (neck) / 3PUCEB1 (bridge)
Year introduced:2014
Type:Passive
Construction:Humbucker
Position:Neck/ Bridge
Magnet:Ceramic
DC resistance:9.5K / 11.0K
Used in:DT420, ARZ200, ARZ200FM, GART60FA and several hollow body models such as the AS73
Description:They offer rich, nuanced tone with fat low-end.


Core-Tone

Core-Tone humbucker
Brand:Ibanez
Model no.:3PU1PA0018 (neck) / 3PURCN4-BKN (4-conductor neck) / 3PURCCN4-CHN (4-conductor neck w/ chrome cover) / 3PU1PA0019 (bridge) / 3PURCB2-BKN (for 10.5mm bridge) / 3PURCCB2-CHN (for 10.5mm bridge w/ chrome cover) / 3PURCCB2-GDG (for 10.5mm bridge w/ gold cover) / 3PU1PA0112 (chrome covered bridge)
Year introduced:2012
Construction:Humbucker
Position:Bridge/ neck
Wiring:2-conductor or 4-conductor
Used in:CMM3, FR365 RC220, RC320, RC320M, RC365H, RC465HM, RC520, RC720, RC1720M
Description:Custom designed by Ibanez to provide a warm yet cutting sound.[14]


Core-Tone single coil
Brand:Ibanez
Model no.:3PU1PA0111 (chrome covered neck)
Year introduced:2014
Construction:Single-coil
Position:Neck
Used in:RC365H, RC465HM
Description:Custom designed by Ibanez to provide a warm yet cutting sound.[14]


G104

G104
Brand:Ibanez
Model no.:G104
Year introduced:2004
Construction:Humbucker
Position:Middle/ Neck
Magnet:Ceramic
Used in:AT200
Description:Single spaced humbucking pickup. Single-coil clarity with louder output.[15]


G109

G109
Brand:Ibanez
Model no.:G109
Year introduced:2004
Construction:Humbucker
Position:Bridge
Magnet:Alnico
Used in:AT200
Description:Warm tone with rich sustain.[15]


HS1

HS1 / SHA90
Brand:Ibanez
Model no.:3PU12A0009 (neck) / 3PU12A0010 (bridge)
Year introduced:2009
Construction:Single coil
Position:Neck/ Bridge
Magnet:Alnico
Used in:DN400, DN600

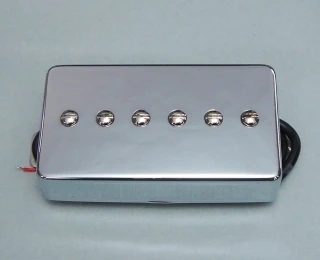

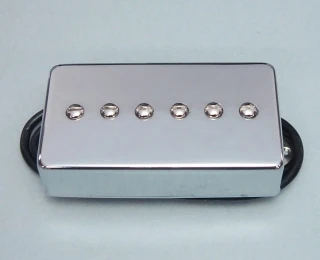

HS1 DN400
Description:Humbucker-sized, P90-style, single-coil pickups introduced in 2009 in the Darkstone series, along with the PP1 humbuckers. They produce loud and crunchy tones that cut through for hard rock and punk styles.


Magic Touch-Mini

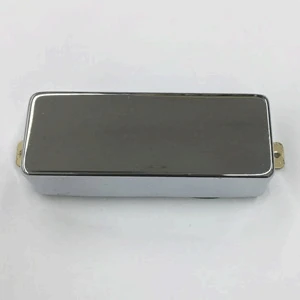

Magic Touch-Mini (bridge)
Brand:Ibanez
Model no.:3PUMTB4-GD (gold cover)
Year introduced:2017
Construction:Humbucker
Position:Bridge
Magnet:Alnico
Used in:AFC95, AFC125, AFC155

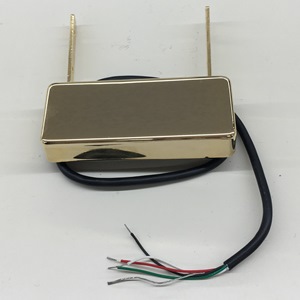

Magic Touch-Mini bridge
Description:Developed for the Contemporary Archtop series, the Magic Touch-Mini bridge pickup is mounted to the pickguard as a floating pickup above the guitar top. They provide a balance of classic tones, alongside clear articulation on both the top and bottom of the sound spectrum. Players can enjoy the clean response on the top end, presenting fast melodies or complex chord progressions with clarity and precision.[16]


Magic Touch-Mini (neck)
Brand:Ibanez
Model no.:3PUMTN4-GD (gold cover)
Year introduced:2017
Construction:Humbucker
Position:Neck
Magnet:Alnico
Used in:AFC95, AFC125, AFC151, AFC155, SS401F

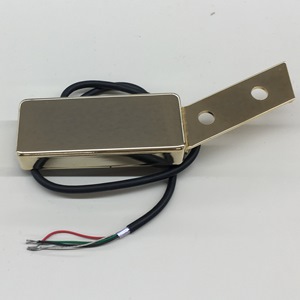

Magic Touch-Mini neck
Description:Developed for the Contemporary Archtop series, the Magic Touch-Mini meck pickup is mounted to the neck as a floating pickup above the guitar top. They provide a balance of classic tones, alongside clear articulation on both the top and bottom of the sound spectrum. Players can enjoy the clean response on the top end, presenting fast melodies or complex chord progressions with clarity and precision.[16]


PP1

PP1-N, PP1-B
Brand:Ibanez
Year introduced:2009
Construction:Humbucker
Position:Neck/ Bridge
Magnet:Alnico
Used in:DN500

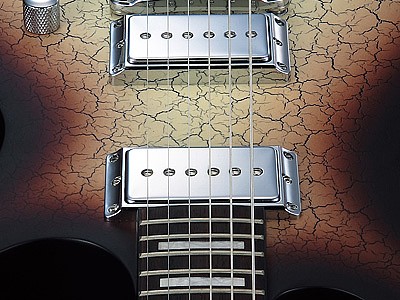

HS1 DN400
Description:The tube pole-piece construction of the new pickups designed for the Darkstone series offers quick response, sparkling clarity and added harmonics for a humbucker sound.The PP1 were re-named CAP-PP1 in 2011.
