MTM20 WH

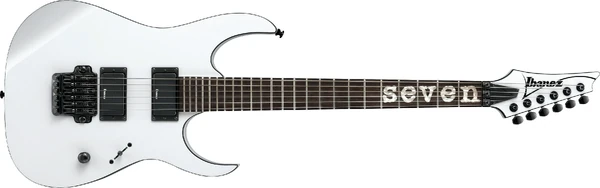

MTM20 in White Red copyright sprite

The MTM20 is a solid body electric guitar model introduced by Ibanez in 2014. It is a signature model of Mick Thomson, lead guitarist for the American band Slipknot and part of the MTM series. It is essentially the successor to the MTM2 which was discontinued after 2011. It was produced in Indonesia.

The MTM20 features a mahogany RG-style body bolted to a maple and walnut Wizard III neck with a reversed headstock and a 24-fret rosewood fingerboard with binding and special "Seven" inlays. Components include a pair of Seymour Duncan designed active humbucking pickups, an FX Edge III fixed bridge with fine tuners and a locking nut.

The MTM20 was discontinued in 2016 when Thomson left Ibanez to endorse Jackson guitars.[1]

Specifications[]

Specifications for MTM20
Model name: MTM20
Year(s) offered: 2014–2016
Sold in: Worldwide
Made in: Indonesia
Finish(es): White (WH)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
AANJ
Bridge:
Fixed Edge III
Hardware color:
Black
Neck
Neck type:
Wizard III
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Special "Seven"
Frets:
24 / jumbo
Nut:
Barless Top-Lok
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Duncan Designed HB-105MT active/ alnico (H)
Neck pickup:
Duncan Designed HB-105MT active/ alnico (H)
Controls:
Single volume / 3-way toggle pickup selector
String gauge (factory):
.011–.049
Factory tuning:
1C# 2G# 3E 4B 5F# 6B

Video[]

Slipknot's Mick Thomson and his Ibanez MTM20-WH


Sources[]

  1. Brown, Michael Astley. Slipknot's Mick Thomson joins Jackson Guitars. Music Radar. July 5, 2016. Archived from the original, September 2016.
