For the previous model of the same name, see MTM1 (2006–2011).

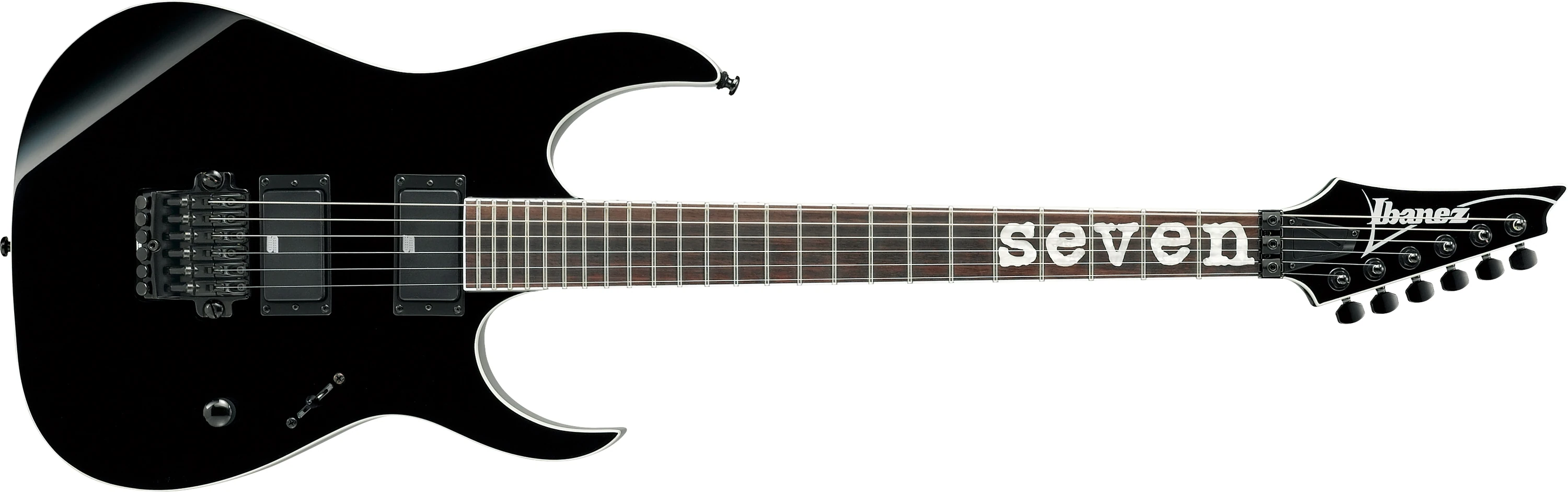

2016 MTM1 BK
MTM1 Black Red copyright sprite

The MTM1 is an MTM series solid body electric guitar model produced by Ibanez. It is a signature model of Mick Thomson, lead guitarist for American heavy metal band Slipknot. It was introduced in mid-2015 and was produced in Indonesia.

The MTM1 features a neck-thru construction with mahogany body wings and white binding on a maple and walnut Wizard II neck with a 24-fret bound rosewood fretboard. Components include dual Seymour Duncan humbucking pickups, an FX Edge III fixed bridge with fine tuners, a locking nut.

The MTM1 is a reintroduction of the RG-bodied MTM1 (2006–2011) which was the first Mick Thomson model. It is based on the RG series. It replaced the Glaive-style MTM100. The MTM20 is a mass-market version of the MTM1.

The MTM1 was discontinued in 2016 when Thomson left Ibanez to endorse Jackson guitars.[1]

Specifications[]

Specifications for MTM1 (2015–2016)
Model name: MTM1 (2015–2016)
Year(s) offered: 2015–2016
Sold in: Worldwide
Made in: Indonesia
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
Mahogany wings w/ white binding
Neck joint:
Neck-thru
Bridge:
FX Edge III fixed
Hardware color:
Black
Neck
Neck type:
Wizard II
Neck material:
5-piece maple/ walnut w/ KTS titanium rods
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Special "Seven"
Frets:
24 / jumbo
Nut:
Barless Top-Lok
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Seymour Duncan Blackouts EMTY (AHB3) (H)
Neck pickup:
Seymour Duncan Blackouts EMTY (AHB3) (H)
Controls:
Master volume / 3-way lever pickup selector
String gauge (factory):
.011–.049
Factory tuning:
1C# 2G# 3E 4B 5F# 6B

Sources[]

  1. Brown, Michael Astley. Slipknot's Mick Thomson joins Jackson Guitars. Music Radar. July 5, 2016. Archived from the original, September 2016.
