MRG8

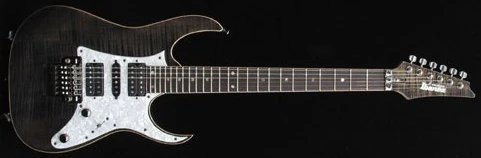

MRG8 Black Charcoal Red copyright sprite

The MRG8 is an RG series solid body electric guitar model introduced by Ibanez in 2008. It was made in Japan by FujiGen as part of the high end J Custom line. It was a spot model which was sold exclusively by musical instrument retailer Kurosawa Gakki in Japan.

The MRG8 features a flamed maple top on a chambered mahogany body bolted to a maple and walnut Super Wizard neck with a 24-fret dark rosewood fingerboard with flame maple binding and abalone dot position markers. Components include DiMarzio pickups mounted in a white pearloid pickguard with a pair of humbuckers flanking a single-coil, an Edge Zero double locking tremolo bridge with a removable ZPS3 tuning stabilizer and Gotoh tuning machines.

The MRG9 and MRG10 were released concurrently. The MRG8 was offered only in 2008 with a total of 48 examples produced.

Specifications

Specifications for MRG8
Year(s) produced: 2008
Sold in: Japan
Made in: Japan
Finish(es): Black Charcoal
Body
Body type:
Chambered solid body
Body material:
Mahogany body w/ AAA flamed maple top
Neck joint:
AANJ
Bridge:
Edge Zero tremolo
Pickguard:
White pearloid
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
Super Wizard
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Dark rosewood w/ flamed maple binding
Fingerboard inlays:
Abalone dot
Frets:
24 / jumbo
Nut:
Barless Top-Lok
Machine heads:
Gotoh SG381
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Tone Zone (H)
Middle pickup:
DiMarzio Blue Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever / push/pull coil-split on volume

Images

Additional details
HSH 5-way push-pull stacked-single
Pickup switching diagram
VT-5-way push-pull-coil-split-volume
Control layout
