MRG6 RY

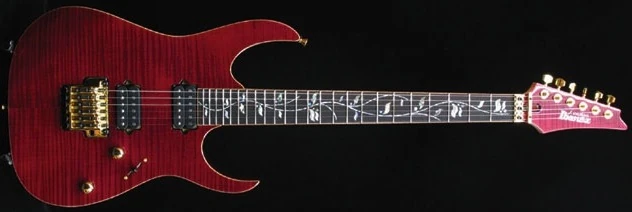

MRG6 Raspberry Red Red copyright sprite

The MRG6 is an RG series solid body electric guitar model introduced by Ibanez in 2007. It was made in Japan by FujiGen as part of the high end J Custom line. It was a spot model which was sold exclusively by musical instrument retailer Kurosawa Gakki in Japan.

The MRG6 features a flamed maple top on a chambered mahogany body bolted to a maple and walnut Super Wizard neck with a 24-fret dark rosewood fingerboard with flame maple binding and abalone Tree of Life vine inlays. Components include a pair of direct-mounted DiMarzio [[[humbucking pickup]]s, an Edge Pro double locking tremolo bridge and Gotoh tuning machines.

The MRG7 which was released concurrently is a similar model with a pickguard, added middle pickup and dot fretboard inlays.

The MRG6 was offered only in 2007.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for MRG6
Year(s) offered: 2007
Sold in: Japan
Made in: Japan
Finish(es): Raspberry Red (RY)
Body
Body type:
Chambered solid body
Body material:
Mahogany body w/ AAAA flamed maple top
Neck joint:
AANJ
Bridge:
Edge Zero tremolo
Knob style:
Knurled metal dome
Hardware color:
Gold
Neck
Neck type:
Super Wizard
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Dark rosewood w/ flamed maple binding
Fingerboard inlays:
Abalone Tree of Life
Frets:
24 / jumbo
Nut:
Barless Top-Lok
Machine heads:
Gotoh SG381
Electronics
Pickup configuration:
HH
Bridge pickup:
DiMarzio Tone Zone (H)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 3-way lever pickup selector / push/pull coil-split on volume

Images[]

Additional details
HH 3-way-toggle push-pull-coil-split
Pickup switching diagram

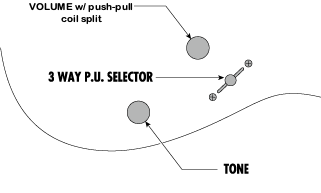

Controls VT3L push-pull-split vol
Control layout
