For other models with the same or similar name, see RG8520 (disambiguation).

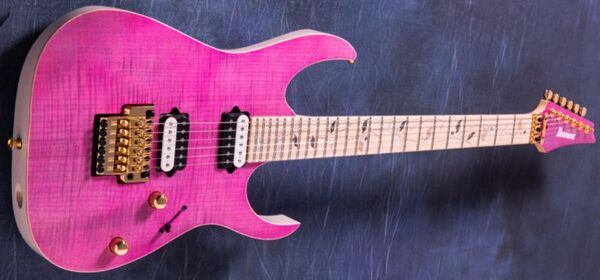

2020 MRG16 RPK
MRG16 Rhodenite Pink (more images) Red copyright sprite

The MRG16 is an RG series solid body electric guitar model introduced by Ibanez in late 2017. It is made in Japan by FujiGen as a spot model for sale exclusively by Japanese retailer Kurosawa Gakki. It is part of the high-end J Custom line and is also referred to as the RG8520M.

The MRG16 features a 4mm thick flamed maple top with natural binding on an ash body bolted to a maple and wenge neck with VelveTouch finish and a selected maple fingerboard with flame maple binding and Tree of Life inlays. Components include a Lo-Pro Edge double locking tremolo bridge, a pair of DiMarzio humbucking pickups with a mini-toggle coil split switch, Gotoh tuning machines and Gotoh locking strap pins.

A RG8520 is a related model with an African mahogany back, Macassar ebony fingerboard, different pickups and cosmo black hardware.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for MRG16 / RG8520M
Model name: MRG16 / RG8520M
Year(s) offered: 2020
Sold in: Japan
Made in: Japan
Finish(es): Rhodenite Pink (RPK)
Body
Body type:
Solid body
Body material:
Ash w/ 4mm AAA flamed maple top w/ natural binding
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Strap buttons:
Gotoh Free Lock-II
Knob style:
Gotoh VK1-19 knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
RG J Custom Super Wizard
Neck material:
5-piece maple/ wenge
Scale length:
648mm/ 25½"
Fingerboard material:
Maple w/ flamed maple binding
Fingerboard inlays:
Tree of life
Frets:
24 / jumbo (j.custom edge treatment)
Nut:
Top-Lok III (43mm)
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio The Tone Zone (H) passive/ Alnico V
Neck pickup:
DiMarzio Air Norton (H) passive/ Alnico V
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel / angled
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)

Images[]

Additional details
HH 5-way single-split
Pickup switching diagram
Controls VT5
Control layout
