MRG12 LST

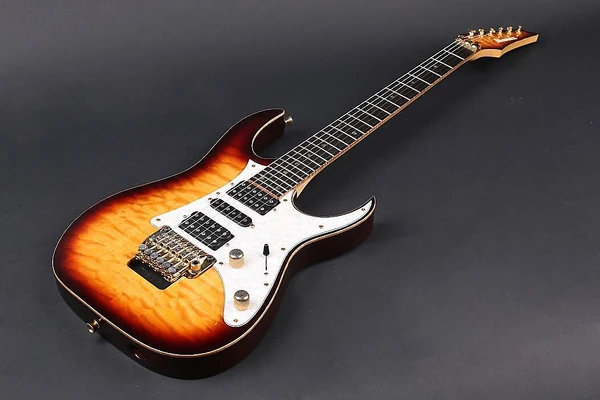

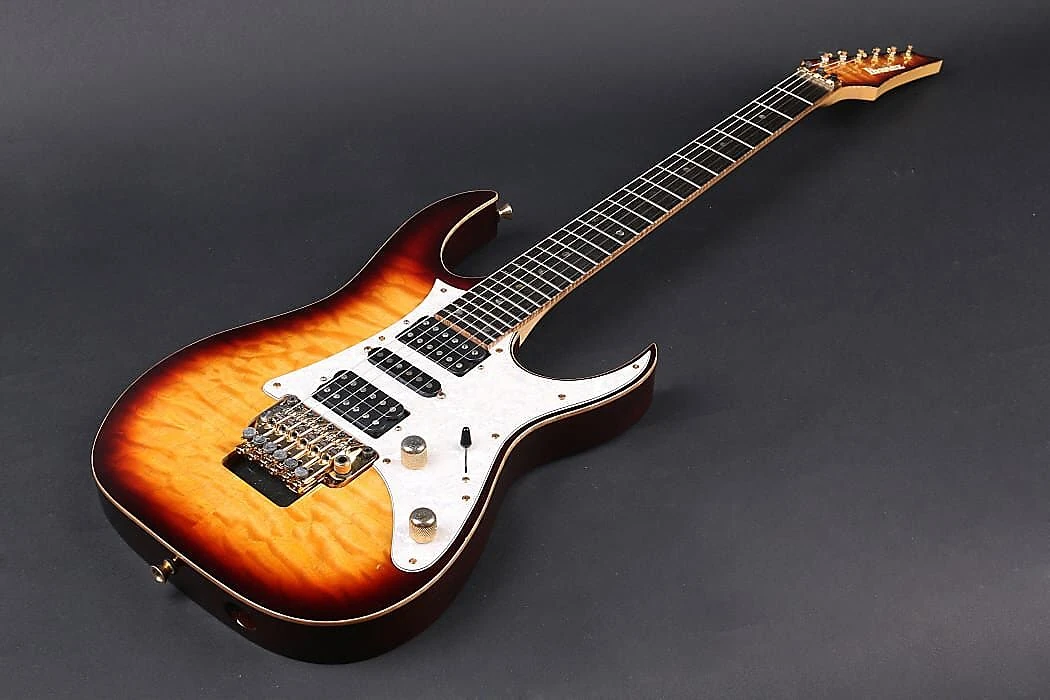

MRG12 Light Sunburst Red copyright sprite

The MRG12 is an RG series solid body electric guitar model introduced by Ibanez in 2010. It was made in Japan by FujiGen as part of the high end J Custom line. It was a spot model which was sold exclusively by musical instrument retailer Kurosawa Gakki in Japan.

The MRG12 features a quilted maple top with flamed maple binding on a chambered African mahogany body bolted to a maple and walnut Super Wizard neck with a 24-fret dark rosewood fingerboard with flame maple binding and pearl dot position markers. Components include DiMarzio pickups mounted in a white pearloid pickguard with a pair of humbuckers flanking a single-coil, an Edge Zero double locking tremolo bridge with a removable ZPS3 tuning stabilizer and Gotoh tuning machines.

The MRG12 is a re-creation of the MRG4 from 2004 with some minor modifications.

The MRG12 was offered only in 2010.

Specifications

Specifications for MRG12
Year(s) produced: 2010
Sold in: Japan
Made in: Japan
Finish(es): Light Sunburst (LST)
Body
Body type:
Chambered solid body
Body material:
African mahogany body w/ AAAAA quilted maple top & flamed maple binding
Neck joint:
AANJ
Bridge:
Edge Zero tremolo
Pickguard:
White pearloid
Knob style:
Knurled metal dome
Hardware color:
Gold
Neck
Neck type:
Super Wizard
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Dark rosewood w/ flamed maple binding
Fingerboard inlays:
Pearl dot
Frets:
24 / SBB 216-195
Nut:
Barless Top-Lok
Machine heads:
Gotoh SG381
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Tone Zone (H)
Middle pickup:
DiMarzio Blue Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever / push/pull coil-split on tone

Images

Additional details
HSH 5-way push-pull stacked-single
Pickup switching diagram
VT-5-way push-pull-coil-split-volume

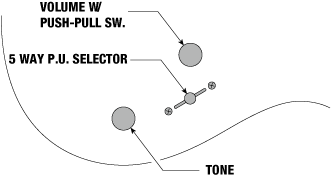

Control layout
