MRG11 HBT
MRG11 Heritage Burst Red copyright sprite

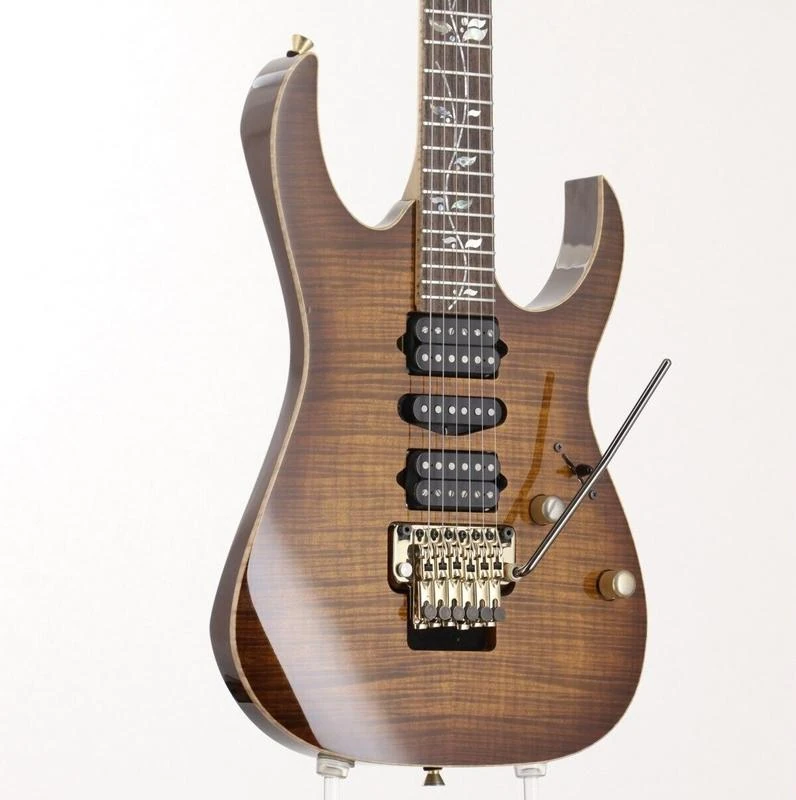

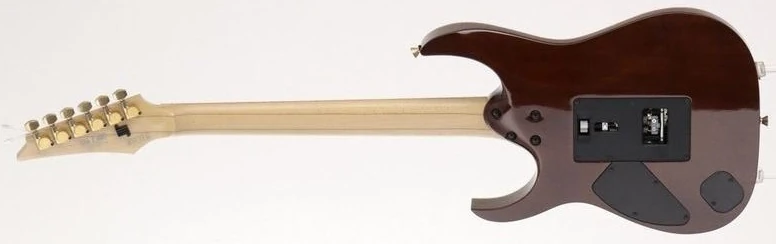

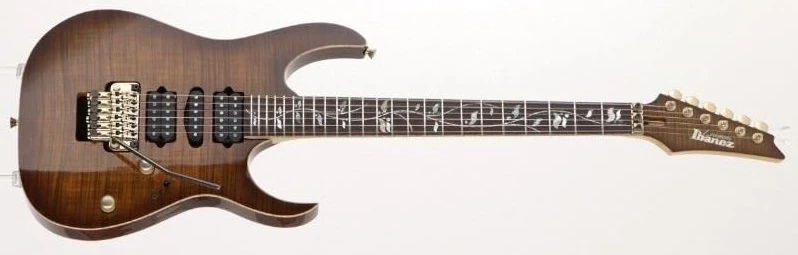

The MRG11 is an RG series solid body electric guitar model introduced by Ibanez in 2009. It was made in Japan by FujiGen as part of the high end J Custom line. It was a spot model which was sold exclusively by musical instrument retailer Kurosawa Gakki in Japan.

The MRG11 features a flamed maple top on a chambered African mahogany body bolted to a maple and walnut Super Wizard neck with a 24-fret dark rosewood fingerboard with flame maple binding and abalone Tree of Life vine inlays. Components include DiMarzio pickups with a pair of direct-mounted humbuckers flanking a single-coil, an Edge Zero double locking tremolo bridge with a removable ZPS3 tuning stabilizer and Gotoh tuning machines.

The MRG10, which was offered the previous year, is a similar model with a pickguard dot fretboard inlays.

The MRG11 was offered only in 2009.

Specifications

Specifications for MRG11
Year(s) produced: 2009
Sold in: Japan
Made in: Japan
Finish(es): Heritage Burst (HBT)
Body
Body type:
Chambered solid body
Body material:
African mahogany body w/ AAA flamed maple top
Neck joint:
AANJ
Bridge:
Edge Zero tremolo
Pickguard:
White pearloid
Knob style:
Knurled metal dome
Hardware color:
Gold
Neck
Neck type:
Super Wizard
Neck material:
5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Dark rosewood w/ flamed maple binding
Fingerboard inlays:
Abalone Tree of Life
Frets:
24 / jumbo
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Tone Zone (H)
Middle pickup:
DiMarzio Blue Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever / push/pull coil-split on volume

Images

Additional details
HSH 5-way push-pull stacked-single
Pickup switching diagram
VT-5-way push-pull-coil-split-volume
Control layout
