2022 MRC10 NT 1X 01
MRC10 Transparent Black Flat (more images) Red copyright sprite

The MRC10 is an acoustic-electric guitar model introduced by Ibanez in late 2022. It is the first signature acoustic model offered by Ibanez for Polish percussive, fingerstyle guitarist and composer Marcin Patrzalek, who is known simply as Marcin. It is produced in Indonesia.

The MRC10 features a AE acoustic body with a Venetian cutaway constructed of a solid Sitka spruce top with X-M Bracing and a reinforcing wood plate for body tapping on pau ferro back and sides with pearloid binding on both the top and back. The top and both feature pau ferro binding. The body is mated to a nyatoh Comfort Grip neck with a Macassar ebony fingerboard with rounded edges and specially designed mother of pearl position markers. The top has a round sound hole with a wooden and mother of pearl rosette and a thick Sitka spruce scratch pad which covers the entire lower "horn" and provides an alternative tone for tapping. Components consist of a compensated bone saddle in a Macassar ebony bridge, a 44mm wide bone nut, and chrome Gotoh tuning machines.

Electronics consist of a Fishman soundhole and mic combo pickup with a Fishman preamp that allows the player to blend the two sources feeding a ¼" endpin output jack. The active preamp is powered by two LR44 1.5V or a single 2L76 3V button cell.

Specifications[]

Specifications for MRC10
Name: MRC10
Year(s) offered: 2022–2025
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: Indonesia
Price: MSRP: ¥ 220,000 (2023[1]–2024[2]) • SMAP: US$ 1,499.99 (2025[3])
Finishes: Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
AE w/ Venetian cutaway
Dimensions:
  Body length: 511mm / 20⅛"
  Width: 413mm / 16¼"
  Depth: 121mm / 4¾"
Top:
  Material: Solid Sitka spruce
  Bracing: X-M Bracing with a reinforcing wood plate for body tapping
  Finish: Gloss
  Binding: Pau ferro
Back/sides:
  Material: Pau ferro (2-piece back)
  Finish: Gloss
Soundhole shape:
Round
Neck
Neck profile:
MRC
Neck material:
1-piece nyatoh
Scale length:
648mm/ 25½"
Fingerboard:
Macassar ebony w/ Comfort Grip rounded edge
Inlays:
Special designed mother of pearl
Frets:
20 nickel silver
Nut:
Bone (44mm)
Machine heads:
Gotoh SGS510Z
Electronics/ Components
Pickup:
Fishman Rare Earth Mic Blend Active Soundhole pickup & tap pickup
Preamp:
Fishman Rare Earth Mic Blend Active Soundhole pickup preamp
Output jack(s):
¼" endpin
Battery:
Two LR44 or one 2L76 (3V)
Bridge:
Macassar ebony (11mm string spacing)
Bridge pins:
Ibanez Advantage w/ red dots
Saddle:
Bone compensated
Hardware color:
Chrome
Pickguard:
Sitka spruce scratch pad
Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario XTAPB1253)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

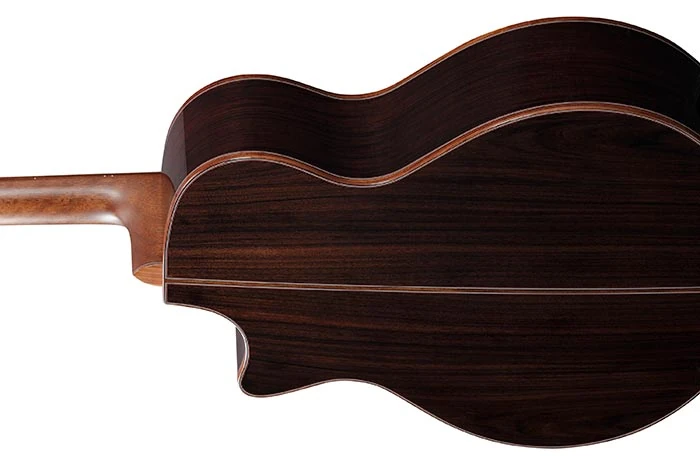

2022 MRC10 NT 1X 01 back
Back

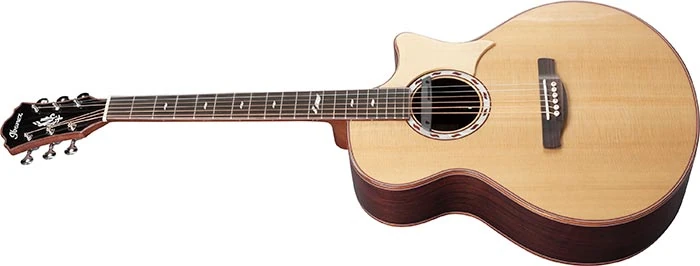

2022 MRC10 NT 1X 01 top-3q
Top ¾ view
2022 MRC10 NT 1X 01 rear-topside
Body back and top side
2022 MRC10 scratch-pad
Sitka spruce scratch pad offers a different percussive tone

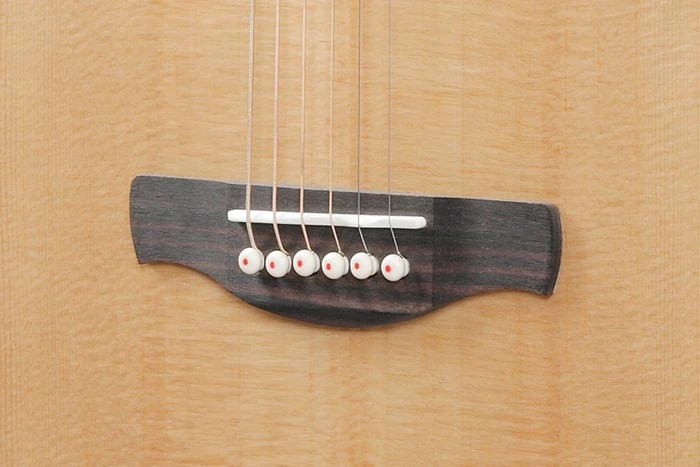

2022 MRC10 bridge
Macassar ebony bridge with special bridge pins with red dots

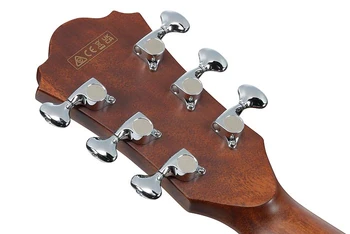

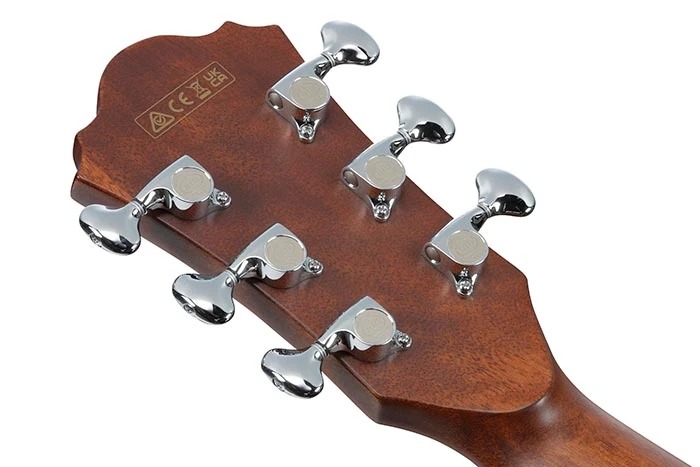

2022 MRC10 headstock-rear
Headstock rear with Gotoh tuners

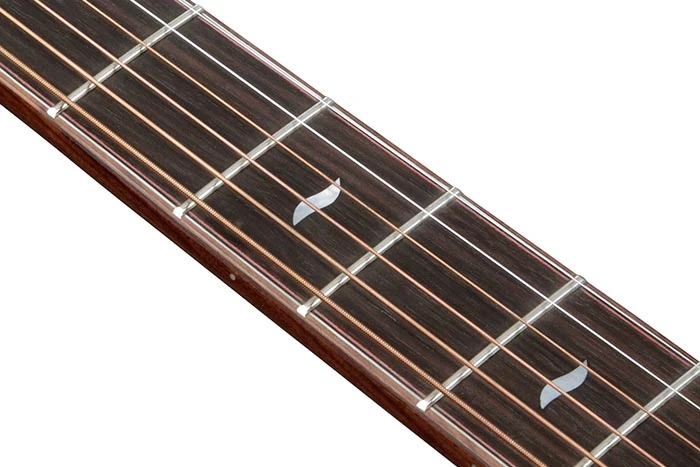

2022 MRC10 fretboard
Macassar ebony with Comfort Grip rounded edge and special inlays

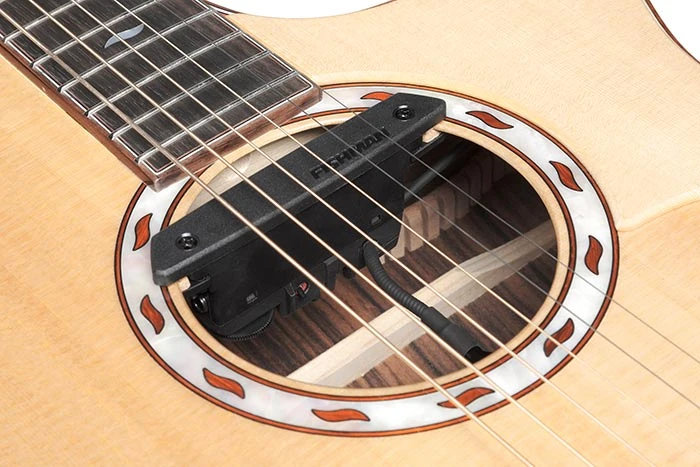

2022 MRC10 pickup
Fishman Rare Earth Mic Blend Active Soundhole pickup
Fishman® Rare Earth Mic Blend Active Soundhole Pickup preamp
Fishman preamp controls

Video[]

Marcin - Signature Guitar Ibanez MRC10
