MMM1 MOL.jpg
MMM1 Mahogany Oil (more images) Red copyright sprite.png

The MMM1 is a solid body electric guitar introduced by Ibanez for 2003. It is a signature guitar model of Mike Mushok, guitarist for the American rock band Staind. It is the sole model created by Ibanez for Mushok. It was produced in South Korea.

The MMM1 is based on the SZ series models, but is a baritone guitar with a 28-inch scale length. Other features include the neck through body construction, Ibanez made Super 58 Custom pickups and the Gibraltar Custom bridge specially introduced for the MMM1.

Mike Mushok switched from Ibanez to PRS Guitars in 2008 and now has a signature PRS SE baritone model.

Specifications

Specifications for MMM1
Model name: MMM1
Year(s) produced: 2003–2007
Sold in: Worldwide
Made in: South Korea
Finish(es): Mahogany Oil (MOL)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
Neck-thru
Bridge:
Gibraltar Custom fixed
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
MMM
Neck material:
3-piece mahogany/ purplewood
Scale length:
712mm/ 28"
Fingerboard material:
Rosewood w/ binding
Frets:
22 / jumbo
Nut:
Black plastic (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Super 58 Custom (H)
Neck pickup:
Super 58 Custom (H)
Controls:
Master volume / master tone / 3-way lever pickup selector
Output jack:
¼" stereo barrel (side mounted)
Factory tuning:
1B♭,2F,3D♭,4A♭,5E♭,6B♭ (B♭ Std.)[1] OR 1A,2D,3A,4D,5G,6B (Drop A)[2]

Images

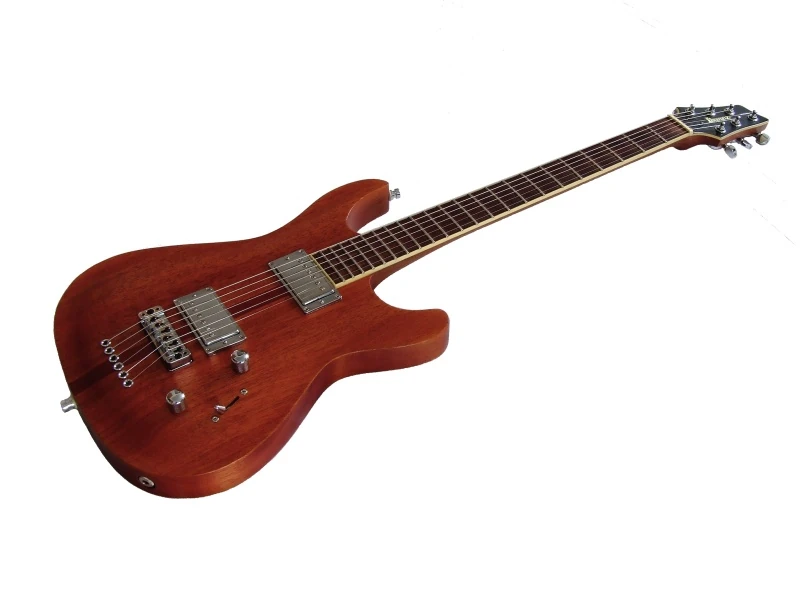

2003 Ibanez MMM1 (MOL) Red copyright sprite.png
Additional images

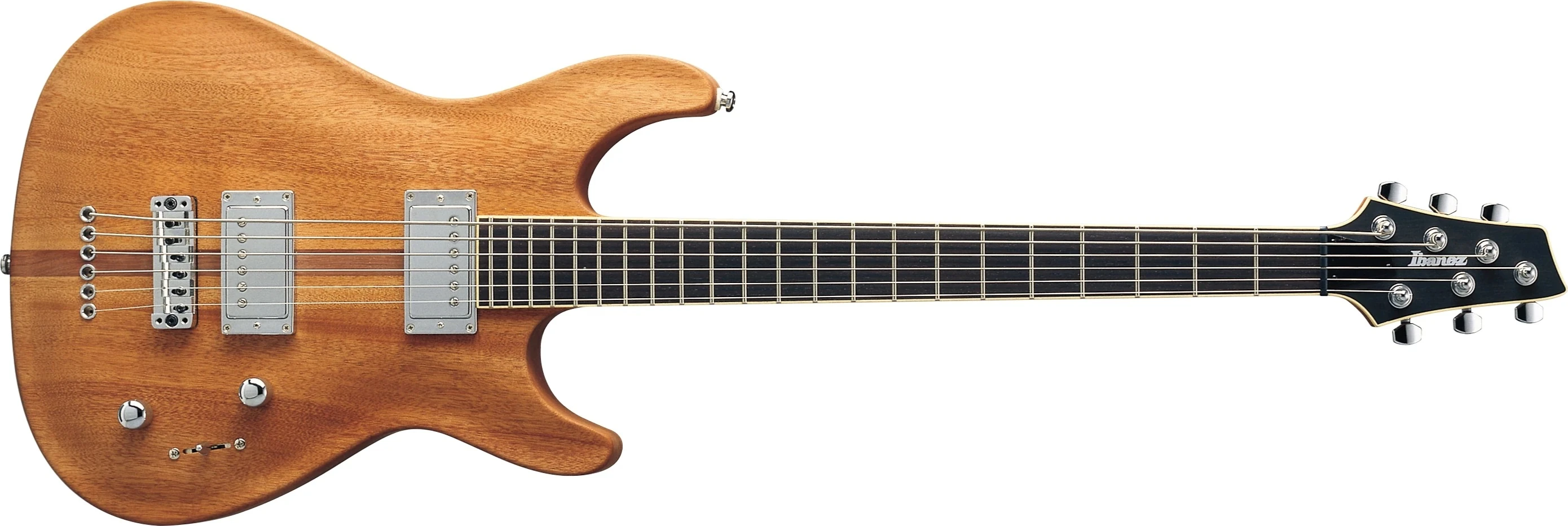

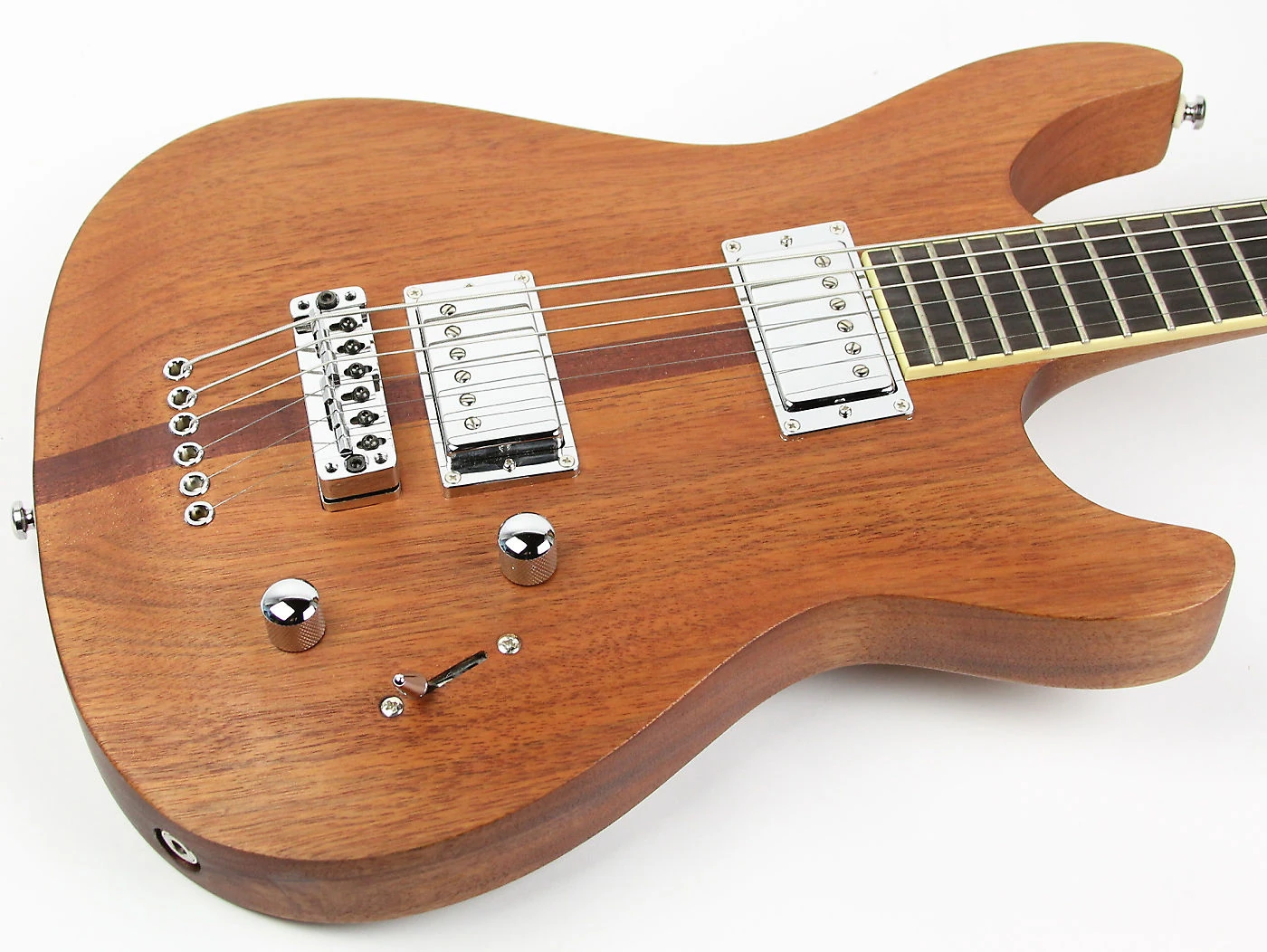

MMM1 front.jpg
Front of body

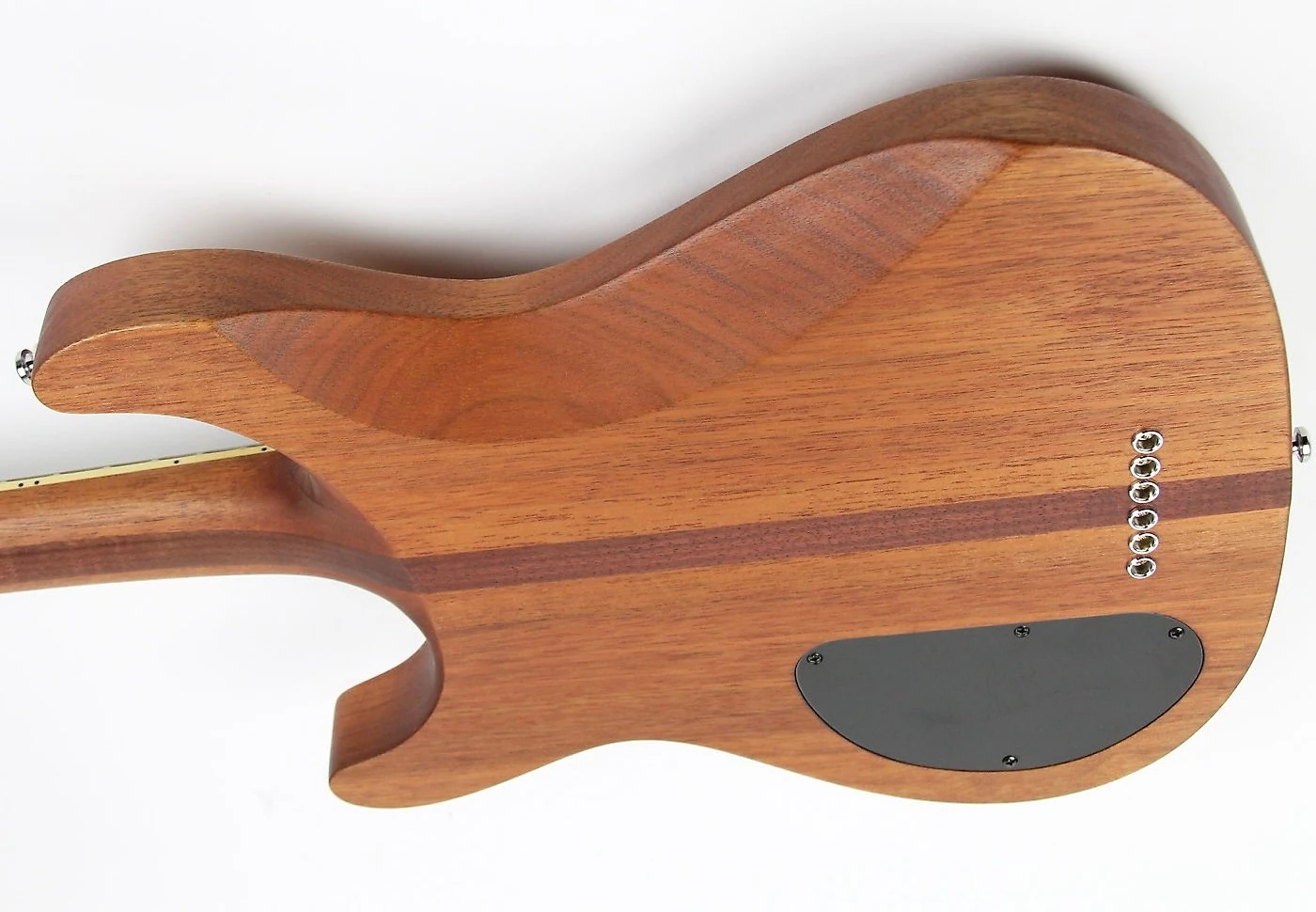

MMM1 rear.jpg
Rear of body

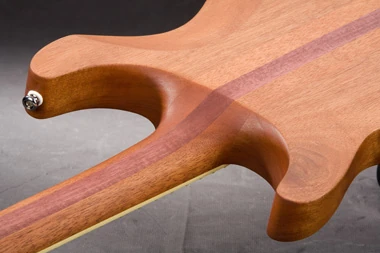

MMM1 neck-joint.jpg
Scooped neck joint

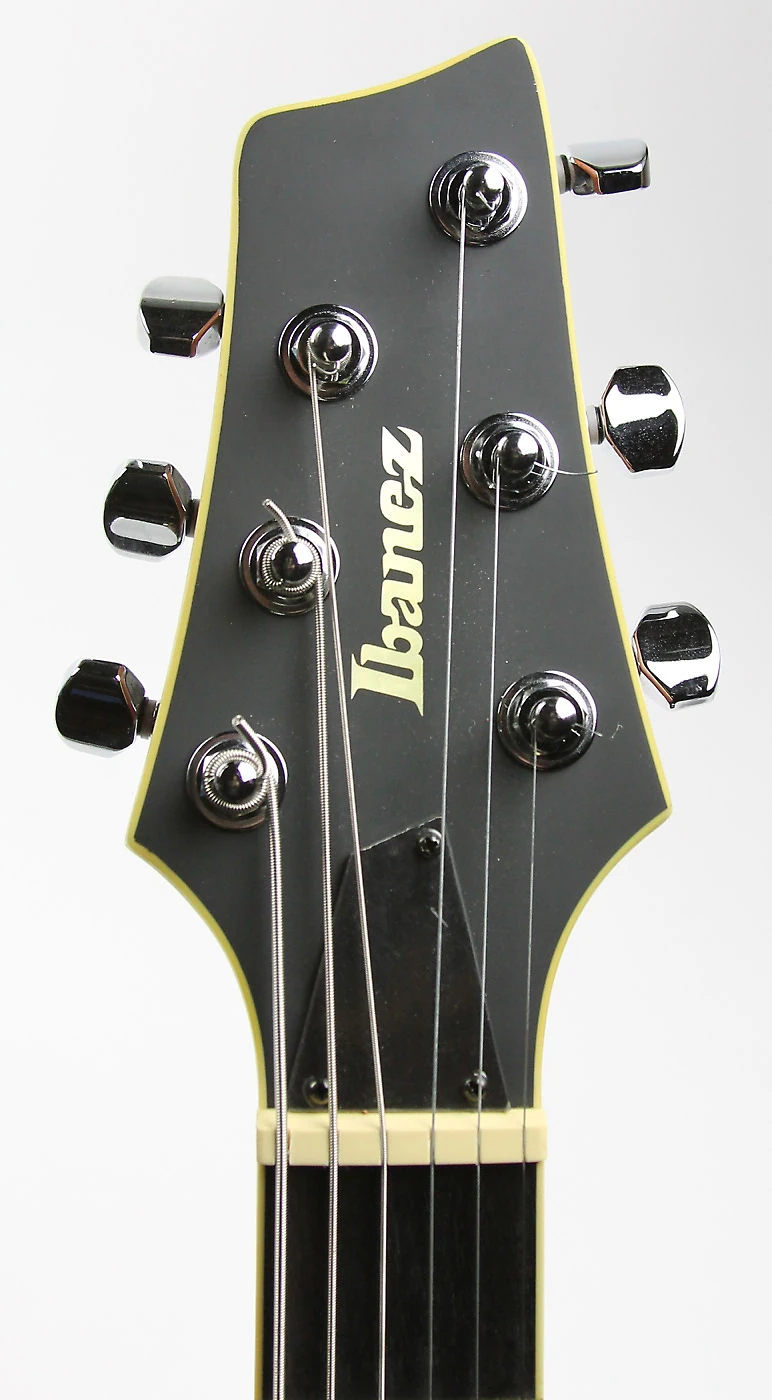

MMM1 headstock.jpg
Headstock
