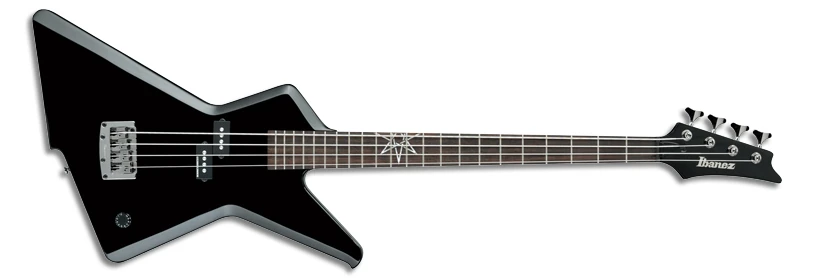

2015 MDB3 BK 1P 01
MDB3 Black Red copyright sprite

The MDB3 is a solid body electric bass model introduced by Ibanez for 2013. It is the third signature model for American bassist Mike D'Antonio who is best known for his work with the metalcore band Killswitch Engage. It was made in Indonesia.

The MDB3 replaced the SRX-derived MDB2. This model features a Destroyer series mahogany body bolted to a maple neck with a 22-fret rosewood fingerboard with a seven pointed star logo at the twelfth fret. Components include a pair of Seymour Duncan passive bass pickups with a J-bass pickup at the bridge and a P-bass pickup at the neck, an Accu-cast fixed bridge, a plastic nut and Ibanez tuning machines. Controls consist of a master volume and a balancer on the front along with a master tone control on the rear cavity cover.

The MDB3 was discontinued after 2015 and replaced by the MDB4.

Specifications[]

Specifications for MDB3
Model name: MDB3
Year(s) offered: 2013–2015
Sold in: Worldwide
Made in: Indonesia
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
Bolt-on
Bridge:
Accu-cast B200 fixed (19mm string spacing)
Knob style:
Speed (black)
Hardware color:
Cosmo black
Neck
Neck type:
MDB
Neck material:
3-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
MDB logo at 12th fret
Frets:
22 / medium
Nut:
Black plastic (42mm)
Machine heads:
Gotoh GB7 die-cast
Electronics/ Strings
Pickup configuration:
P
Neck pickup:
Seymour Duncan SPB-3 (P) passive
Controls:
Single volume / tone (on rear cavity cover)
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.055/.075/.095/.120
Factory tuning:
1F,2C,3G,4C

Images[]

Additional details

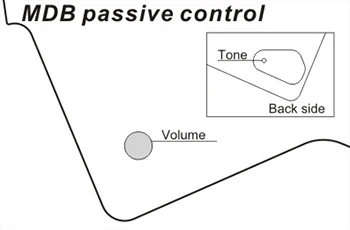

Controls MDB3
Controls layout
