1981 MC940-DS
MC940 Dark Stain (more images) Red copyright sprite

The MC940 is a fret-less Musician series solid body electric bass model introduced by Ibanez for 1980. It was produced in Japan.

The MC940 features neck-through-body construction on mahogany with bookmatched ash top attached to a maple and walnut neck with a fret-less ebony fingerboard with small offset white dot position markers and a darkened ash headstock. Components include an Accu-Cast B gold plated fixed bridge with brass, cylindrical saddles and 19mm string spacing, and a pair of Super 4 pickup's single-coil transducers controlled by a highly developed correction system with two parallel tracks: passive and active, a plastic nut, Velve Tune B tuning machines and chrome hardware.

For 1982 the body was changed to solid Ash and the pickup configuration to P/J with Super (J5/P5) pickups. For 1983 the bridge was changed to an Accu-Cast B II and the control knobs to Sure grip II.

The MC924 is a similar fretted model.

The MC940 was discontinued after 1984.

Specifications[]

Related content: Musician series | Models-icon
Specifications for MC940
Model name: MC940
Year(s) offered: 1980—1984
Sold in: Europe / Japan / USA
Made in: Japan
Price: MSRP: US$:790 "1980"/ DM: 1.540 "1981" / DM: 1.740 "1983" / JP¥:130,000 "1983"
Finish(es): Dark Stain (DS)
Body
Body type:
Solid body
Body material:
1980—1981: Mahogany and Ash
1982—1984: Ash
Neck joint:
Neck-thru
Bridge:
1980-1982: Accu-Cast B fixed gold plated
1983-1984: Accu-Cast B II gold plated (19mm string spacing)
Knob style:
Sure Grip, 3 plastic tone knobs w/ silver top and 2 switches
Hardware color:
Chrome plated
Neck
Neck type:
Musician
Neck material:
5-piece maple/ walnut w/ Tune response
Scale length:
864mm / 34"
Fingerboard material:
Ebony
Fingerboard inlays:
Small offset white dots
Nut:
Bone (38mm)
Machine heads:
1980—1982: Velve Tune B
1983—1984: Velve Tune BII
Electronics/ Strings
Bridge pickup:
1980—1981: Super 4 (S) alnico
1982—1984: Super J-5
Neck pickup:
1980—1981: Super 4 (S) alnico
1982—1984: Super P-5
Electronics:
3-Band EQ
Controls:
Master Volume / Master Tone / Boost-cut / EQ tone bass, EQ tone middle, EQ tone treble and an on/off EQ switch.
Battery:
9V
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

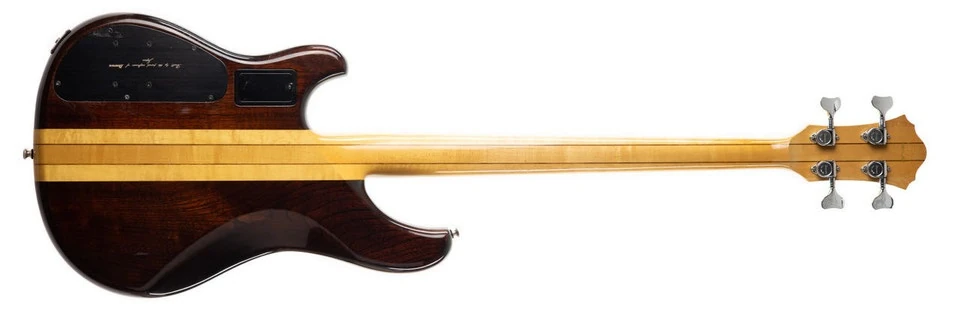

1981 MC940-DS rear
1981 Ibanez MC940 ( Rear: Neck-through-body construction on Ash and mahogany attached to a 5-piece maple/ walnut w/ Tune response and Velve Tune B II machine heads ) Red copyright sprite
Additional details

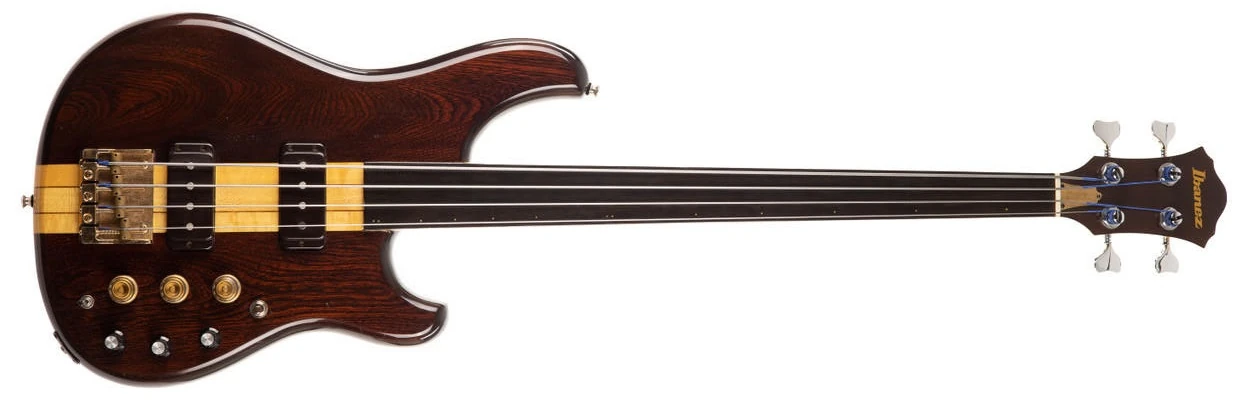

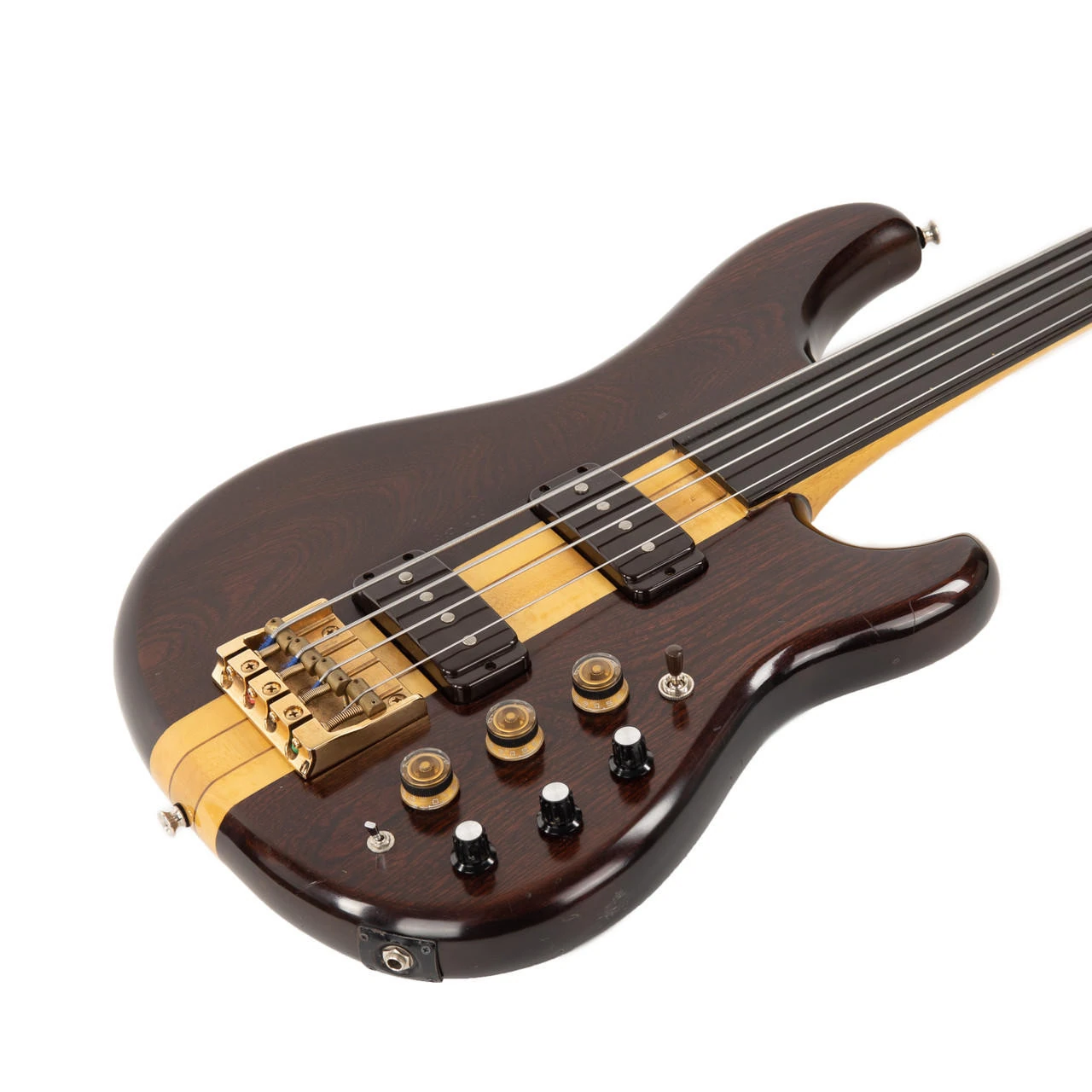

1981 MC940-DS front
Front of body

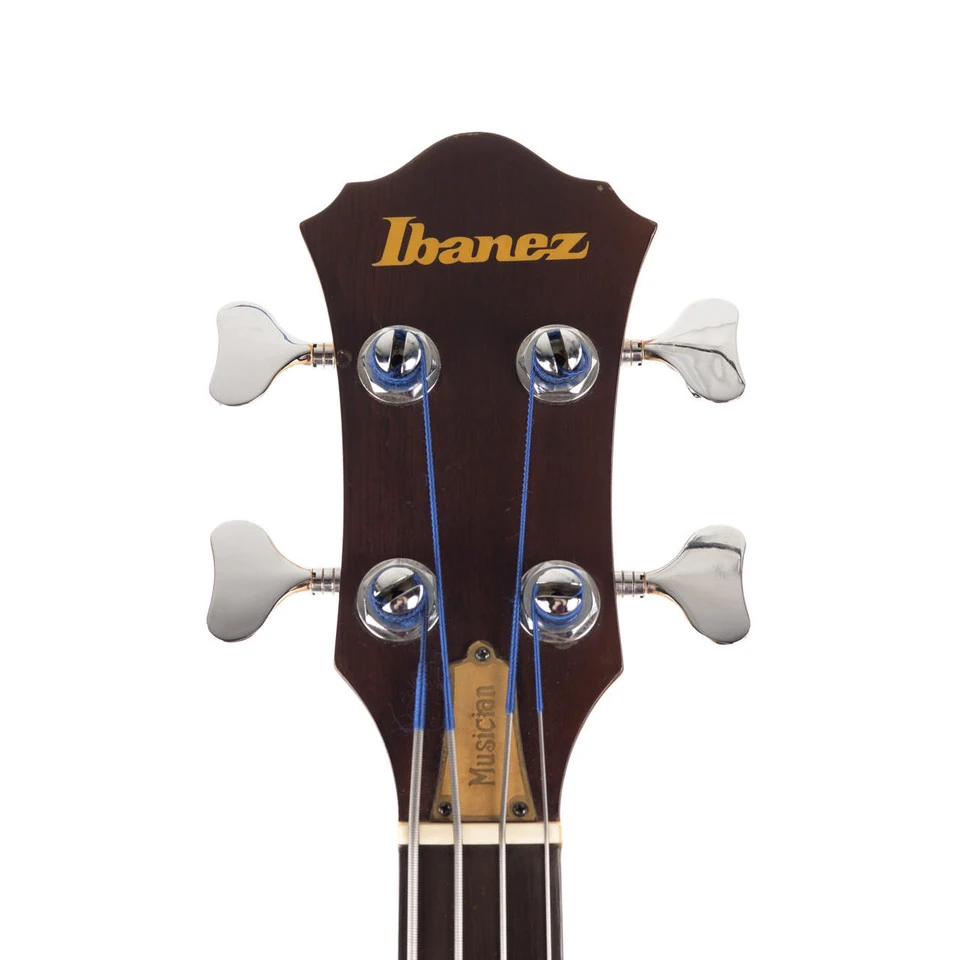

1981 MC940-DS headstock
Headstock

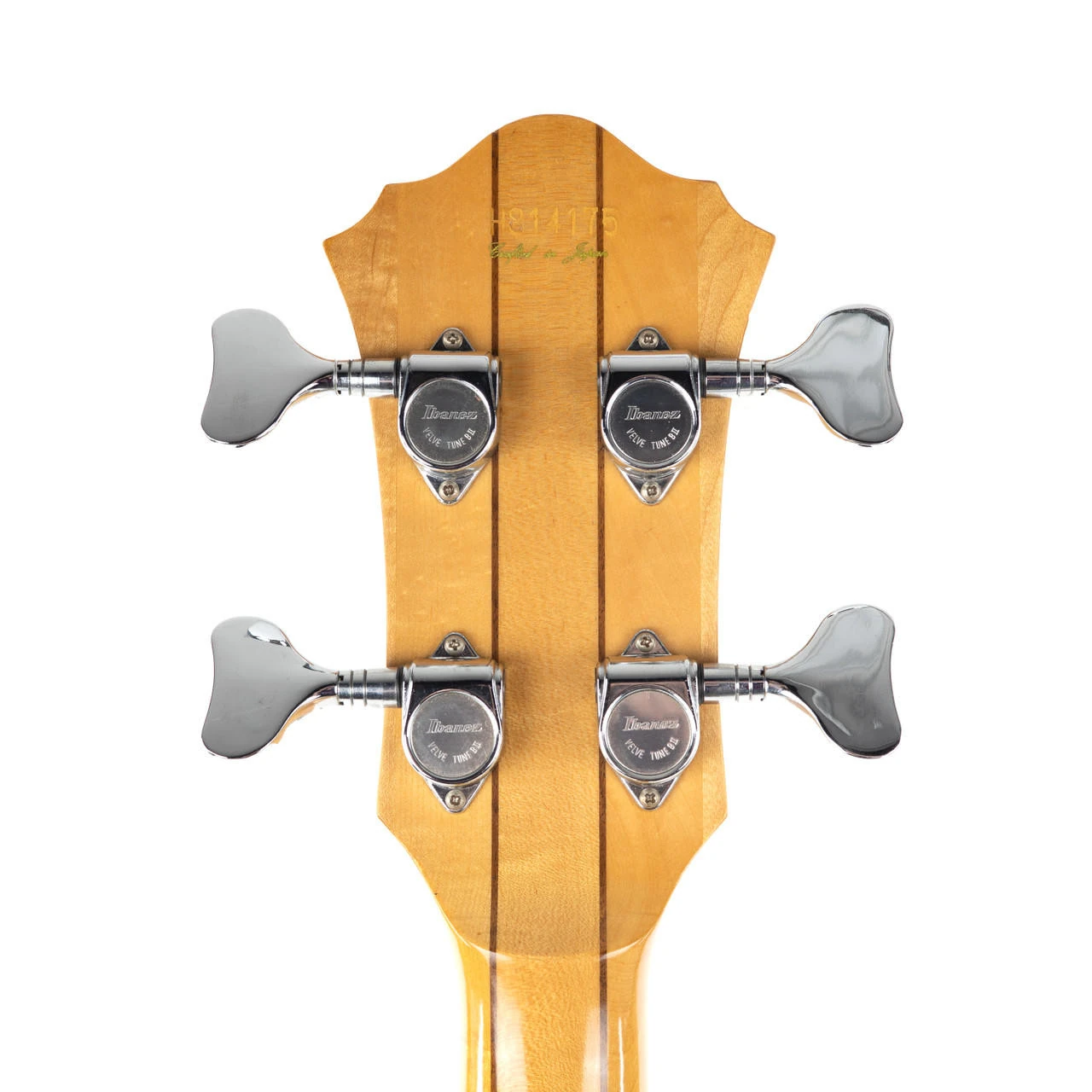

1981 MC940-DS tuners
Machine heads
