For the later model with the same name, see MC824 (1991—1992).

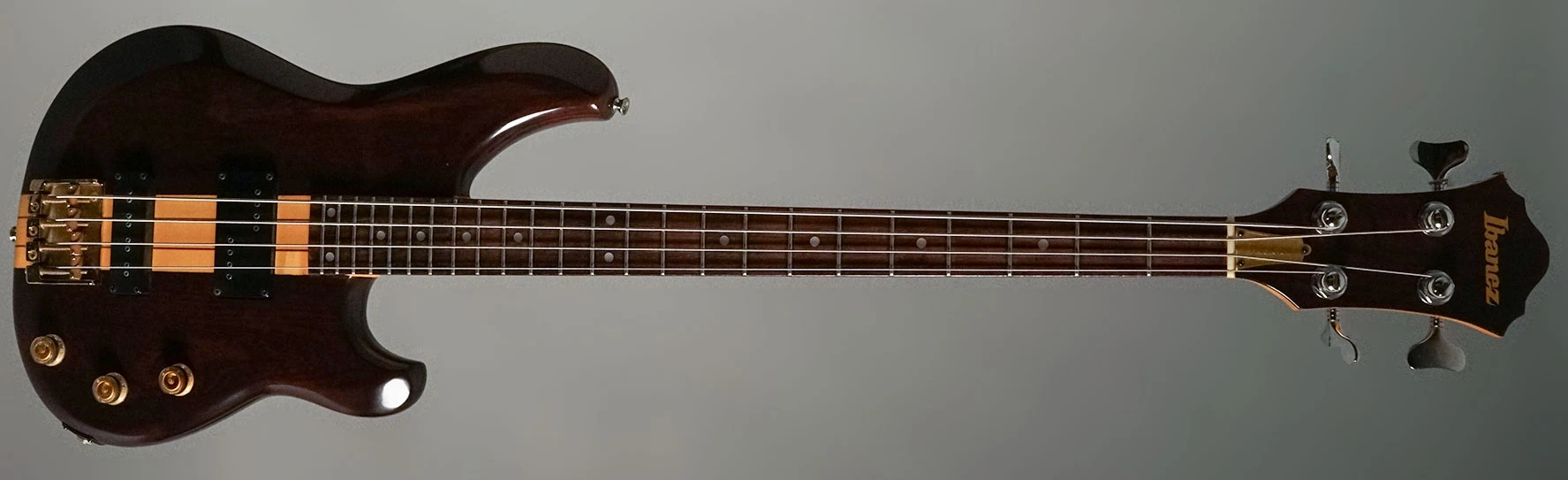

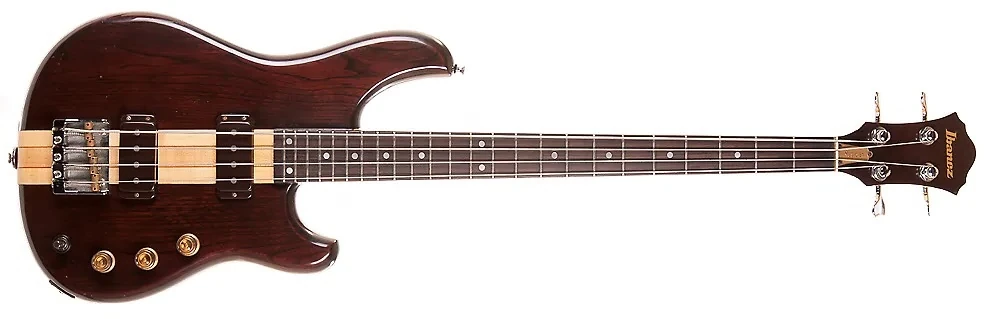

1980 MC824-DS
MC824 Dark Stain (more images) Red copyright sprite

The MC824 is a Musician series solid body electric bass model introduced by Ibanez for 1980. It was produced in Japan.

The MC824 features neck-through-body construction. It has body wings made up of an ash core sandwiched between two layers of mahogany on a maple and walnut neck with tune response, a 24-fret rosewood fingerboard with pearl dot position markers and a darkened ash headstock. Components include an Accu-Cast B chrome plated fixed bridge with brass, cylindrical saddles and 19mm string spacing, a pair of Super 4 single-coil “soapbar” pickup's with 2 volume knobs, tone knob, 3-way switch and blend control, a plastic nut, Velve Tune Bass tuning machines and chrome hardware.

For 1982 the pikcup configuration was changed to "Super (J/P)-5" and the controls to: Volume, Tone and pickup balancer. For 1983 the pikcup configuration was changed to a singel "Super J6" an thecontrols to: Volume, Tone and Tri-Sound. For 1985 the pikcup configuration was changed to a pair of "J6" and the controls to: Volume, Tone and Duo Sound push on/ off switch. For 1991 a model with similar name with other electronics was made only for the Japanese market.

The MC824 was discontinued after 1986.

Specifications[]

Related content: Musician series | Models-icon
Specifications for MC824
Model name: MC824
Year(s) offered: 1980—1986
Sold in: Europe / Japan / USA
Made in: Japan
Price: MSRP: US$:665 1980 / DM: 1.170 1980 / JP¥:85,000 1981
Finish(es): Black (BK) USA 1985 / Dark Stain (DS) 1980—1985 / Polar White (PW) USA 1985 / 1979-1980 / Walnut (WN) Japan 1986
Body
Body type:
Solid body
Body material:
Mahogany and Ash
Neck joint:
Neck-thru
Bridge:
1980—1982; 1985—1986: Accu-Cast B fixed (gold plated)
1983—1984: Accu-Cast B fixed (chrome plated) (19mm string spacing)
Knob style:
2 Sure Grip (gold) / 1 switch
Hardware color:
Chrome plated
Neck
Neck type:
Musician
Neck material:
5-piece maple/ walnut w/ Tune response
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dots
Frets:
24 Velve-Touch / medium
Nut:
Bone (38mm)
Machine heads:
1980—1982: Velve Tune Bass
1983—1984: Velve Tune BII
1985—1986: Smooth Tuner BII
Electronics/ Strings
Bridge pickup:
1980—1981: Super 4 (S) alnico
1982: Super J-5
1983—1984: Super J6
1985—1986: J6
Neck pickup:
1980—1981: Super 4 (S) alnico
1982: Super P-5
1983—1984: None
1985—1986: J6
Controls:
1980—1981: 2 Volume / master tone / 3-way switch selector
1982: Master Volume / Master Tone / pickup balancer
1983—1984: Master Volume / Master Tone / Tri-Sound
1985—1986: Master Volume / Master Tone / Duo Sound push on/ off switch
Output jack:
¼" stereo (side mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Available finishes/ details

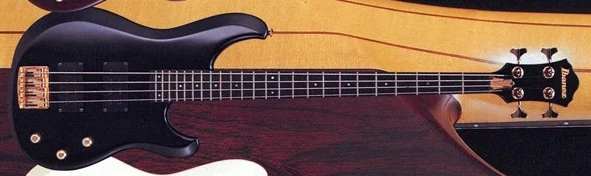

1985 MC824-BK
Black (1985 "USA only")

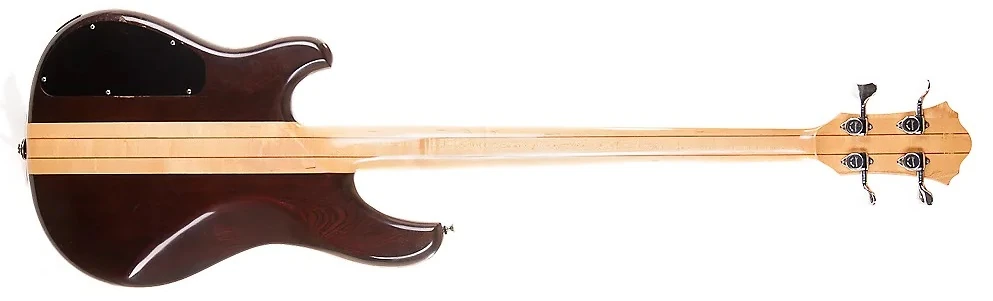

MC824-DS rear
Dark Stain (1980—1981 rear)

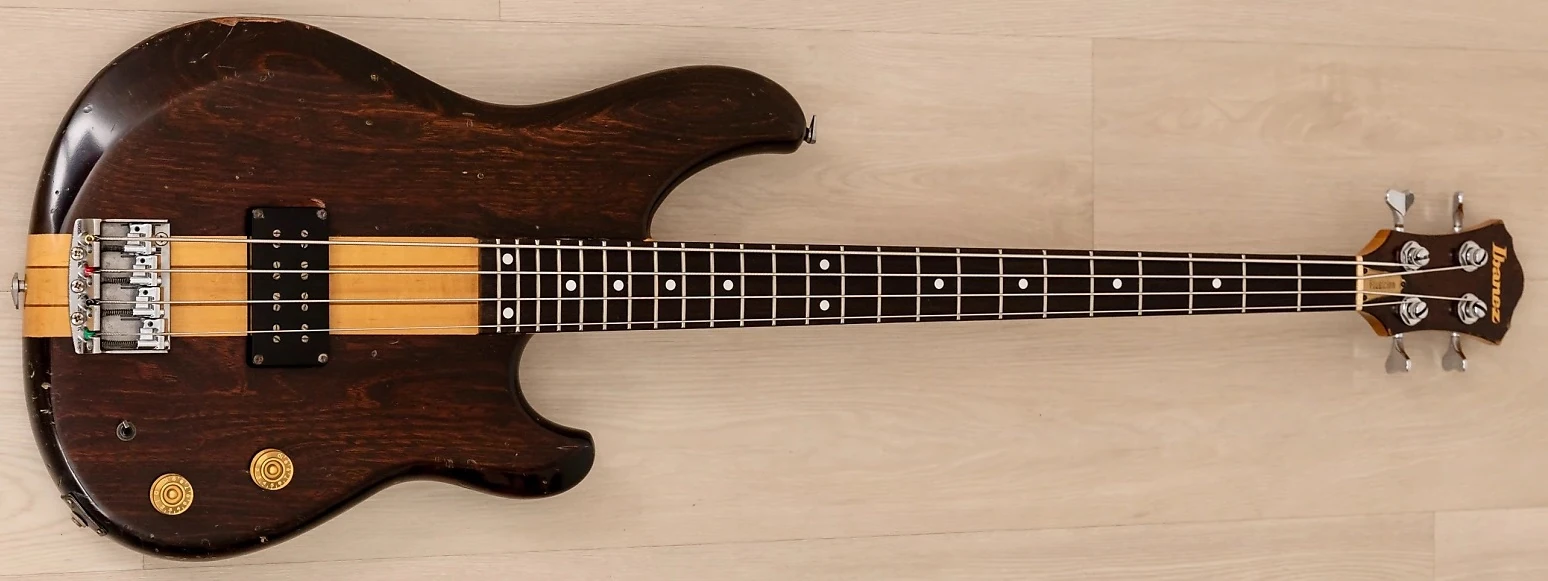

1982 MC824-DS
Dark Stain (1982 "Super P/J pickups")

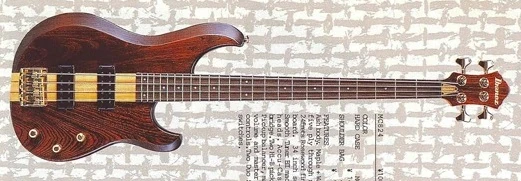

1983 MC824-DS
Dark Stain (1983—1984 "Super J6 pickup")

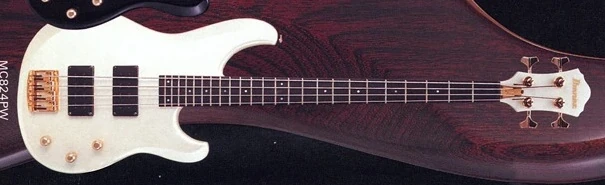

1985 MC824-PW
Polar White (1985 "USA only")

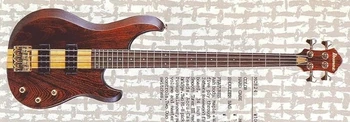

1986 MC824-WN
Walnut (1986 Japan)
