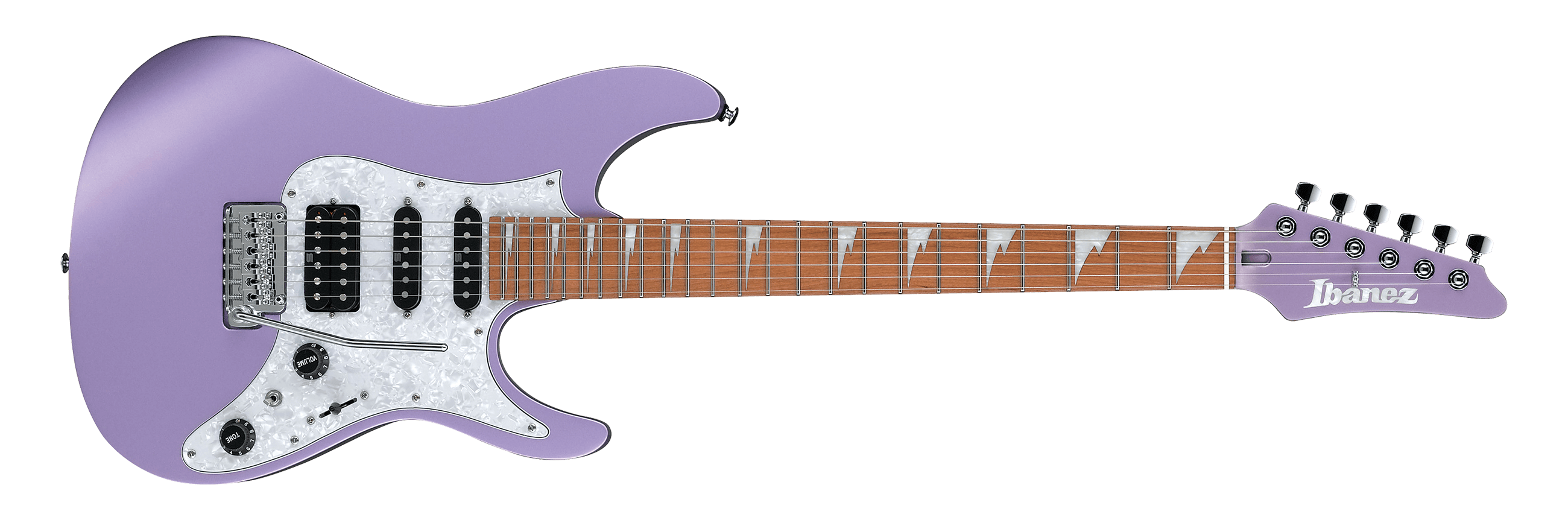

2019 MAR10 LMM 1P 01.png
MAR10 Lavender Metallic Matte Red copyright sprite.png

The MAR10 is an AZ series solid body electric guitar model introduced by Ibanez for 2019. It is the first Ibanez signature model for American guitarist Mario Camarena of the math rock band Chon. It is produced in Indonesia as part of the mid-tier Premium line.

The MAR10 features an American basswood body bolted to a one-piece roasted maple neck with a roasted maple fingerboard with 24 stainless steel frets, pearloid sharktooth position markers and luminescent side dots. Components include Seymour Duncan Hyperion pickups mounted in a white pearloid pickguard with a humbucker at the bridge and single-coils in the neck and middle positions, a T1502 two-point synchronized tremolo bridge, a Graph Tech TUSQ nut, an angled output jack and Gotoh locking tuning machines.

The MAR10 employs a dyna-MIX9 switching system (see diagram below) with an "Alter switch" toggle which allows the user to access nine distinct tones. The Alter switch allows the player to access two modes with the single coils connected in series creating a tone similar to a second humbucker.

Specifications

Specifications for MAR10
Model name: MAR10
Year(s) produced: 2019–2021
Sold in: Worldwide
Made in: Indonesia
Finish(es): Lavender Metallic Matte (LMM)
Body
Body type:
Solid body
Body material:
American basswood
Neck joint:
Super All Access
Bridge:
T1502 tremolo (10.5mm string spacing)
Pickguard:
White pearloid
Knob style:
Plastic top hat (black)
Hardware color:
Chrome
Neck
Neck type:
AZ Oval C
Neck material:
One-piece roasted maple
Scale length:
648mm/ 25½"
Fingerboard material:
Roasted maple
Fingerboard inlays:
Pearloid sharktooth
Luminescent side dots
Frets:
24 / jumbo stainless steel
Nut:
Graph Tech White TUSQ (42mm)
Machine heads:
Gotoh SG381 MG-T locking
Electronics/ Strings
Pickup configuration:
HSS
Bridge pickup:
Seymour Duncan Hyperion bridge (H) passive/ alnico
Middle pickup:
Seymour Duncan Hyperion Single middle (S) passive/ alnico
Neck pickup:
Seymour Duncan Hyperion Single neck (S) passive/ alnico
Controls:
Master volume / master tone / dyna-MIX9 switching system w/ "Alter switch" toggle
Output jack:
¼" stereo barrel (angled side mount)
String gauge (factory):
.010/.013/.017/.026/.036/.046 (D'Addario EXL110)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details

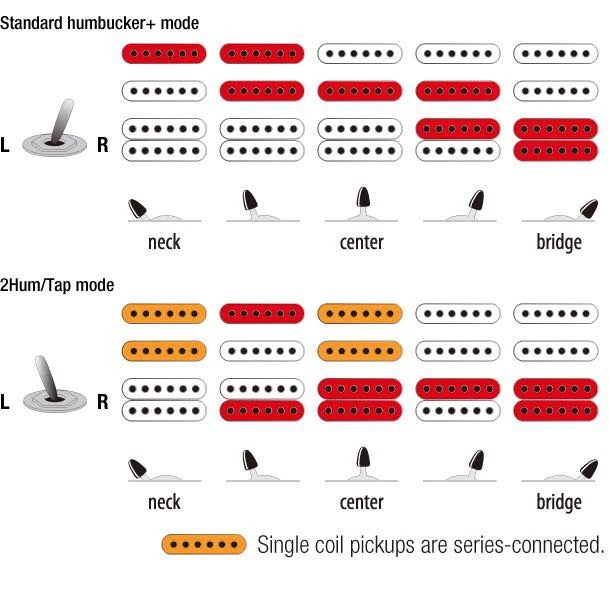

Dyna-MIX9 switching diagram.jpg
Pickup switching
Controls VT5 Alter-toggle.png
Controls layout

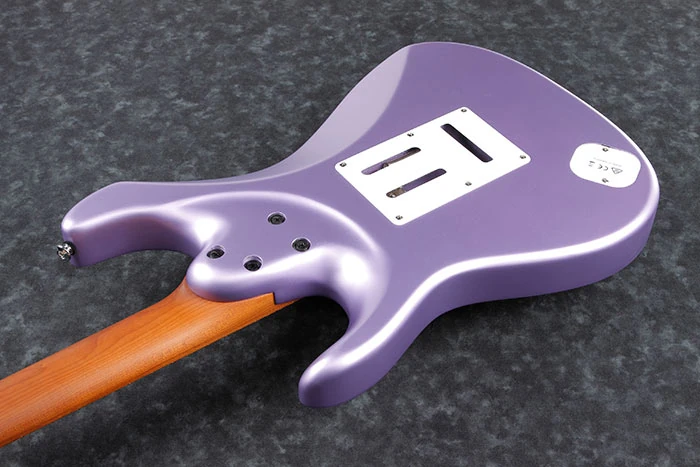

2021 MAR10 LMM 1P 01 back.jpg
Rear of body

Video

CHON Presents Ibanez EH10 and MAR10 Signature Models
