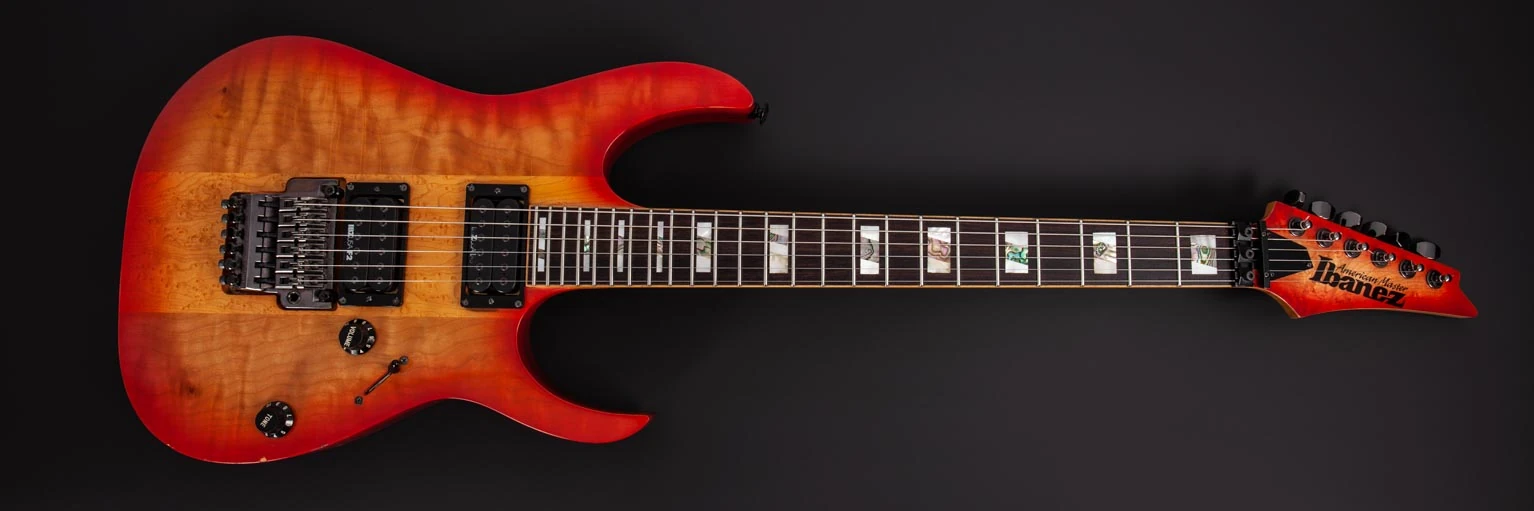

MA3HH Cherry Sunburst
MA3HH Cherry Sunburst (more images) Red copyright sprite

The MA3HH is an American Master series solid body electric guitar model introduced by Ibanez in 1990. The American Master line features guitars that are completely handmade in the United States.[1]

The MA3HH features a thick maple top on a mahogany body mated to a set-in maple Wizard neck with a 24-fret rosewood fingerboard with maple binding and pearl & abalone split block position markers. Components include a pair of humbucking pickups mounted in pickup rings with a DiMarzio Double Whammy mounted in a pickup ring at the bridge and a PAF Pro at the neck, an Edge double locking tremolo bridge with a locking nut and Gotoh tuning machines.

The MA3HSH is a similar model which adds a middle pickup.

The MA3HH was offered only in 1990. The MA1FM & MA1QM followed in 1991.

Specifications[]

Specifications for MA3HH
Model name: MA3HH
Year(s) offered: 1990
Sold in: USA
Made in: USA
Finish(es): Cherry Sunburst (CS) / Transparent Blue (TB) / Transparent Purple (TP)
Body
Body type:
Solid body
Body material:
Mahogany w/ thick maple top
Neck joint:
Set-in
Bridge:
Edge tremolo (10.8mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Cosmo black
Neck
Neck type:
Wizard
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ maple binding
Fingerboard inlays:
Pearl & abalone split block
Frets:
24 / jumbo
Nut:
Top-Lok III
Machine heads:
Gotoh SG38
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio Double Whammy (H)
Neck pickup:
DiMarzio PAF Pro (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

MA3HH CS

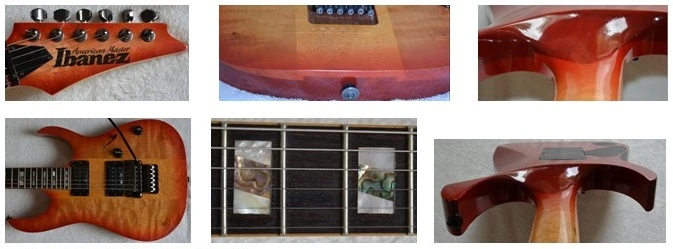

1990 MA3HH-CS ( Up close pictures ) Red copyright sprite
Other available finishes

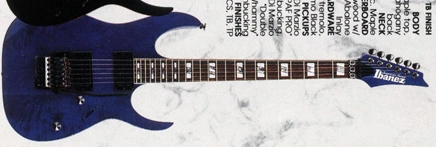

1990 MA3HH TB
Transparent Blue
Transparent Purple
Wimage An image for this article is missing!
An image of the MA3HH Transparent Purple (TP) is wanted for this article. You can help by finding, uploading and adding it!
