1991 MA1QM
MA1QM Red copyright sprite

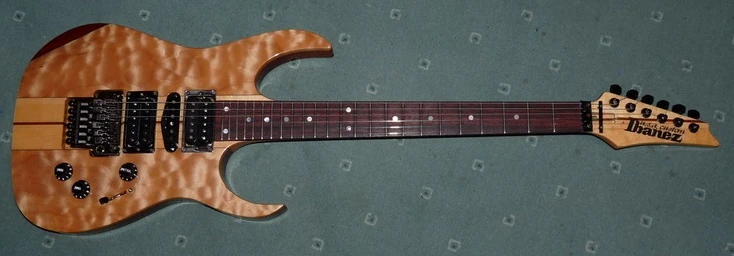

The MA1QM is an American Master series solid body electric guitar model introduced by Ibanez in 1991. The American Master line features guitars that are completely handmade in the United States.[1]

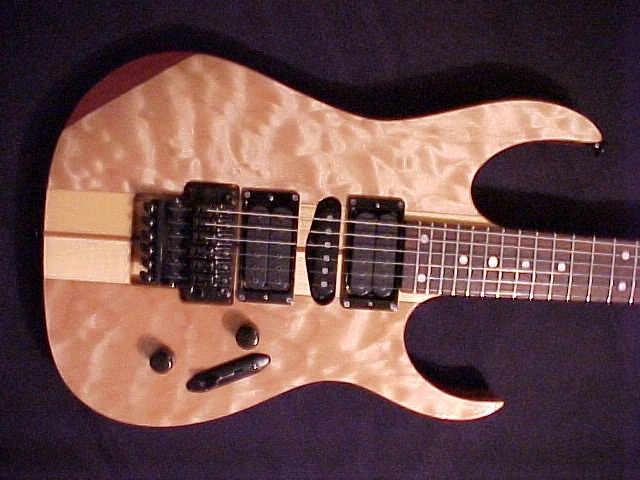

The MA1QM features neck-thru-the-body construction with mahogany body wings and a flame maple top attached to a maple and purple heart Wizard neck with a 24-fret rosewood fingerboard with dot position markers. It has an HSH pickup configuration with DiMarzio humbuckers mounted in pickup rings at the bridge and neck flanking a single-coil. Components include an Edge double locking tremolo bridge with a locking nut and Gotoh tuning machines.

The MA1QM and it's sibling with a flame maple top, the MA1FM, replaced the MA2HSH, MA3HH and MA3HSH from the previous year. The configuration listed below is only the stock model. These guitars could be custom-ordered with a variety of pickup and fretboard configurations.

The MA1QM was discontinued after 1991 along with the entire American Master line.

Specifications

Specifications for MA1QM
Model name: MA1QM
Year(s) produced: 1991
Sold in: USA
Made in: USA
Finish(es): Natural
Body
Body type:
Solid body
Body material:
Mahogany wings w/ quilted maple top
Neck joint:
Neck-thru
Bridge:
Edge tremolo
Hardware color:
Cosmo black
Neck
Neck type:
Wizard
Neck material:
3-piece maple/ purple heart
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearloid dot
Frets:
24 / jumbo
Nut:
Top-Lok III

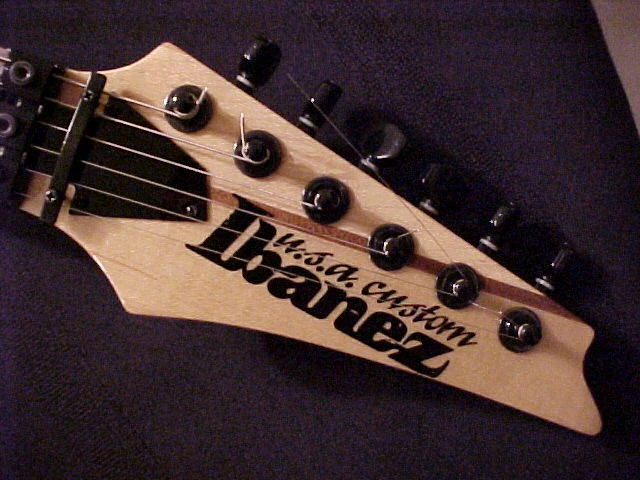

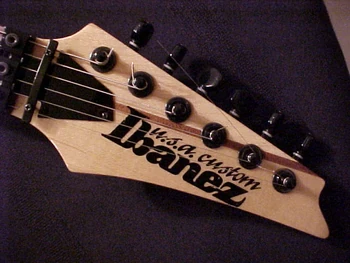

Machine heads:
Gotoh SG38
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Double Whammy (H)
Middle pickup:
DiMarzio VS-1 (S)
Neck pickup:
DiMarzio PAF Pro (H)
Controls:
Master volume / master tone / 5-way lever

Sources

  1. 1991 USA catalog (page 19)
