2019 LGB300 VYS 00 01 en 1.png
LGB300 Vintage Yellow Sunburst Red copyright sprite.png

The LGB300 is a hollow body electric guitar model introduced by Ibanez for 2012. It is a signature model for American jazz guitarist George Benson. It is made in Japan by FujiGen.

The LGB300 features a full-sized, single cutaway, full hollow body design with a spruce top with ƒ holes and multi-layer binding and maple back and sides mated to a set-in three-piece maple neck with a large headstock and a 22-fret ebony fingerboard with binding and pearl/acrylic and abalone split block position markers. Components include dual Ibanez Super 58 humbucking pickups with individual volume and tone controls; a height-adjustable ebony bridge with special adjustable split trapeze tailpiece; a bone nut; quilted maple pickguard, Sure Grip III knobs and Gotoh tuning machines.

The LGB300 has a significantly larger body than Benson's long-running GB10 model. Other differences include the pickups and the pointed lower horn. The LGB30 is a less expensive version of the LGB300 which is made in China.

Specifications

Specifications for LGB300
Model name: LGB300
Year(s) produced: 2012–2021
Sold in: Worldwide
Made in: Japan
Finish(es): Vintage Yellow Sunburst (VYS)
Body
Body type:
Hollow body
Dimensions:
  Length: 508mm / 20"
  Width: 419mm / 16½"
  Depth: 108mm / 4¼"
Top:

  Material: Spruce
  Binding: Multi-layer cream/black

Back/sides:

  Material: Maple

Neck joint:
Set-in
Bridge:
Ebony (10.4mm string spacing)
Tailpiece:
GB200
Pickguard:
Quilted maple veneer
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
LGB300
Neck material:
3-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ binding
Fingerboard inlays:
Acrylic/pearl & abalone split block
Frets:
22 / medium (Prestige edge treatment)
Nut:
Bone (45mm)
Machine heads:
Gotoh SGL510
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 bridge (H) passive/alnico
Neck pickup:
Ibanez Super 58 neck (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" stereo box (side mounted)
String gauge (factory):
.011/.015/.022w/.030/.040/.050 flatwound
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle.png
Pickup switching
Controls GB10.png
Controls layout

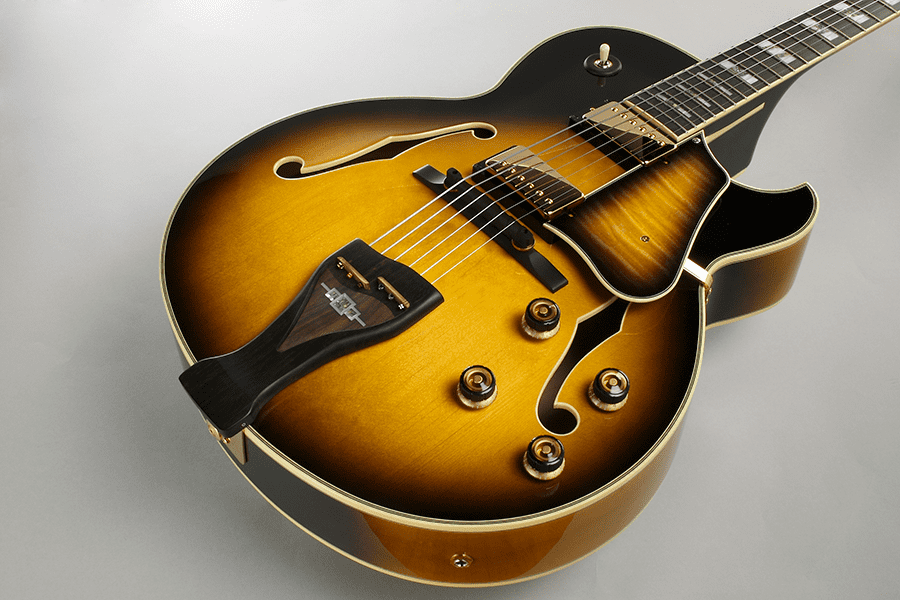

2021 LGB300 VYS 00 01 front.png
Front of body
2021 LGB300 VYS 00 01 back.png
Rear of body

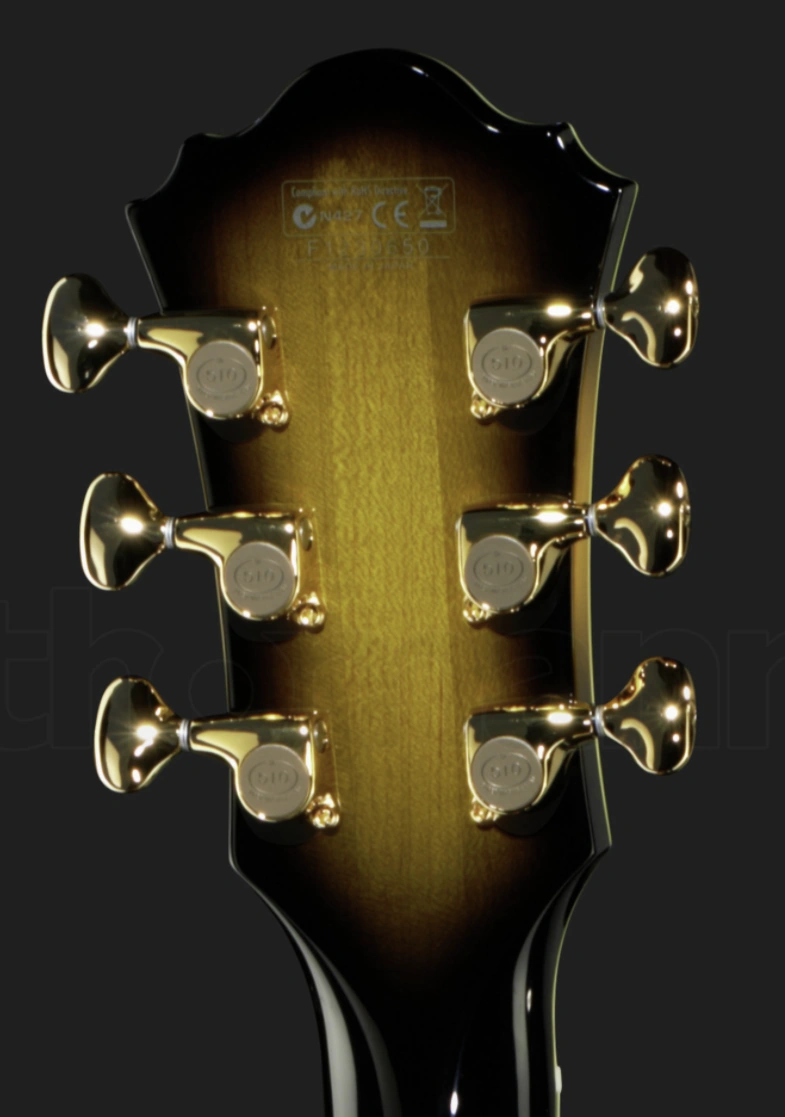

LGB300 headstock rear.png
Rear of headstock

Video

George Benson discusses and demonstrates the LGB300
