2019 LGB30 VYS 5B 01
LGB30 Vintage Yellow Sunburst Red copyright sprite

The LGB30 is a hollow body electric guitar model introduced by Ibanez in mid 2013. It is a signature model for American jazz guitarist George Benson. It is a more affordable alternative to the LGB300. It was initially made in China, but production moved to Indonesia from 2019.

The LGB30 features a full-sized, single cutaway, full hollow body design constructed of a laminated spruce top with ƒ holes and multi-layer binding on laminated flamed maple sides and back. The set-in three-piece mahogany and maple neck sports a large headstock and a 20-fret ebony fingerboard with binding and pearl/acrylic and abalone split block position markers. Components include dual Ibanez Super 58 humbucking pickups with individual volume and tone controls; a Tune-o-matic style ART-1 bridge (a wooden bridge is also included) with special trapeze tailpiece; a bone nut; a quilted maple veneer pickguard and Sure Grip III knobs.

A natural finish option was added in late 2015. For 2019 the mahogany and maple neck was replaced with nyatoh and maple. For 2020 the ART-1 bridge was replaced with the new Gibraltar Artist.

The LGB300 is a related model with a slightly larger body and some different components which is made in Japan. In terms of size, the LGB30 fits between the LGB300 and the smaller GB10.

Specifications[]

Specifications for LGB30
Model name: LGB30
Year(s) offered: 2013–2024
Sold in: Worldwide
Made in: China (2013–2018) / Indonesia (2019–2024)
Price: MSRP: JP¥ 180,000 (2023)[1]
Finish(es): Natural (NT) 2015–2024 / Vintage Yellow Sunburst (VYS)
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 92mm / 3⅝"
Top:
  Material: Spruce (laminated)
  Binding: Multi-layer cream/black

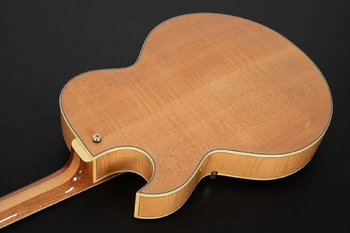

Back/sides:
  Material: Flamed maple (laminated)
Neck joint:
Set-in
Bridge:
2013–2019: ART-1
2020–2024: Gibraltar Artist (10.5mm string spacing)
Tailpiece:
LGB30
Pickguard:
Quilted maple veneer
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
LGB30
Neck material:
2013–2018: 3-piece mahogany/ maple
2019–2024: 3-piece nyatoh/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ binding

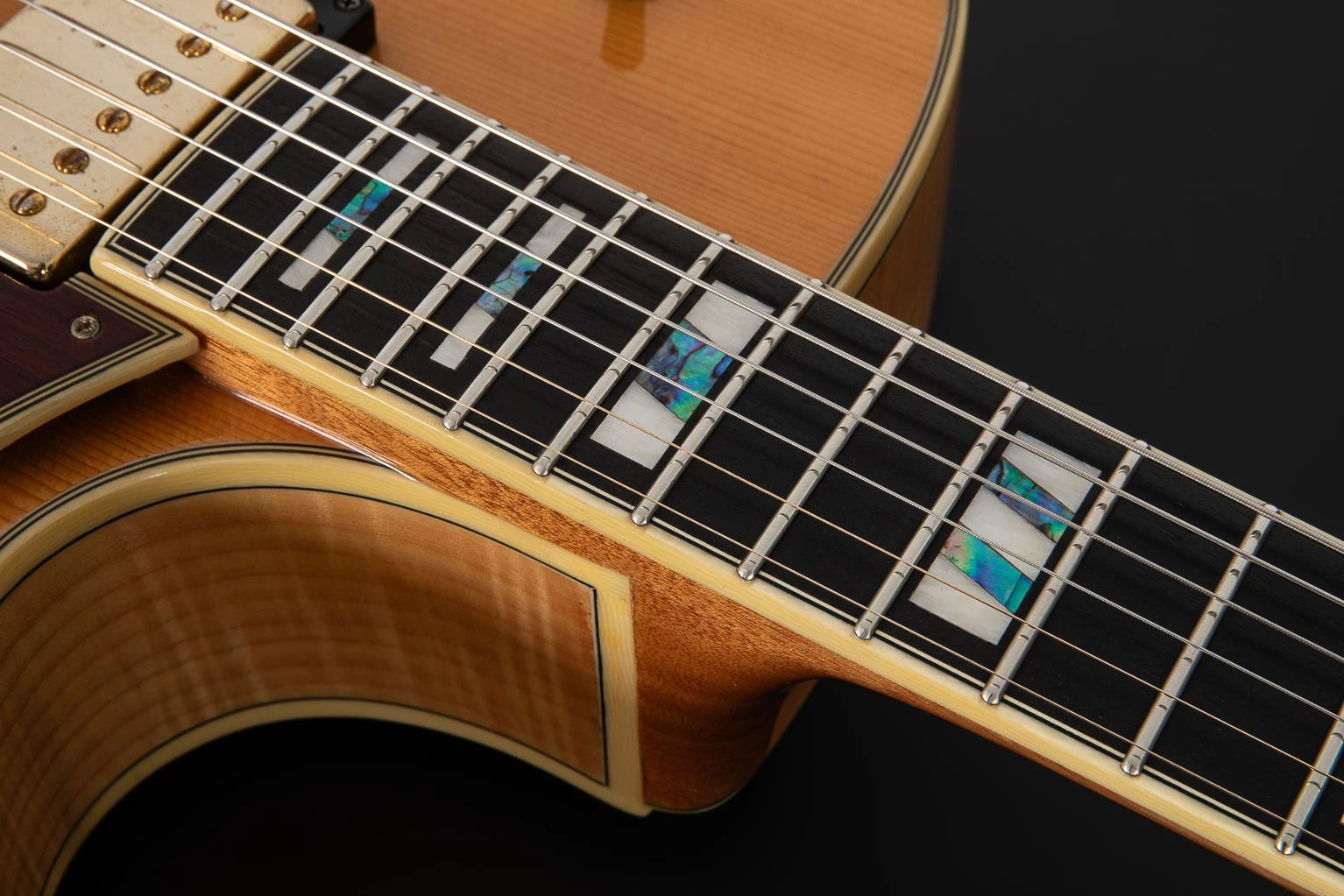

Fingerboard inlays:
Acrylic & abalone split block
Frets:
20 / medium nickel silver (Artstar edge treatment)
Nut:
Bone (43mm)

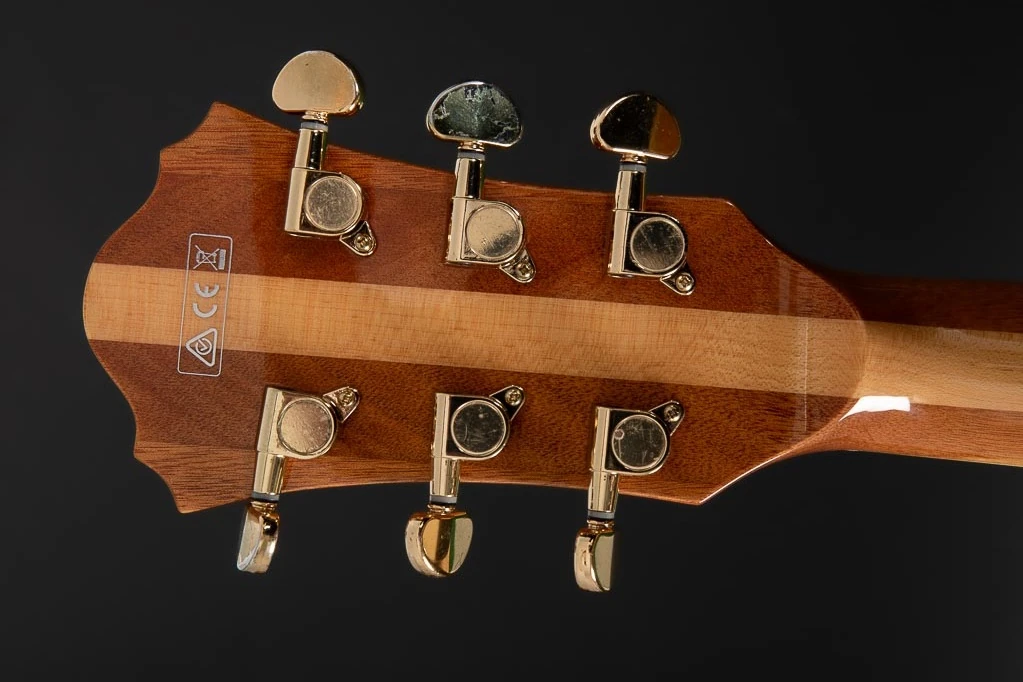

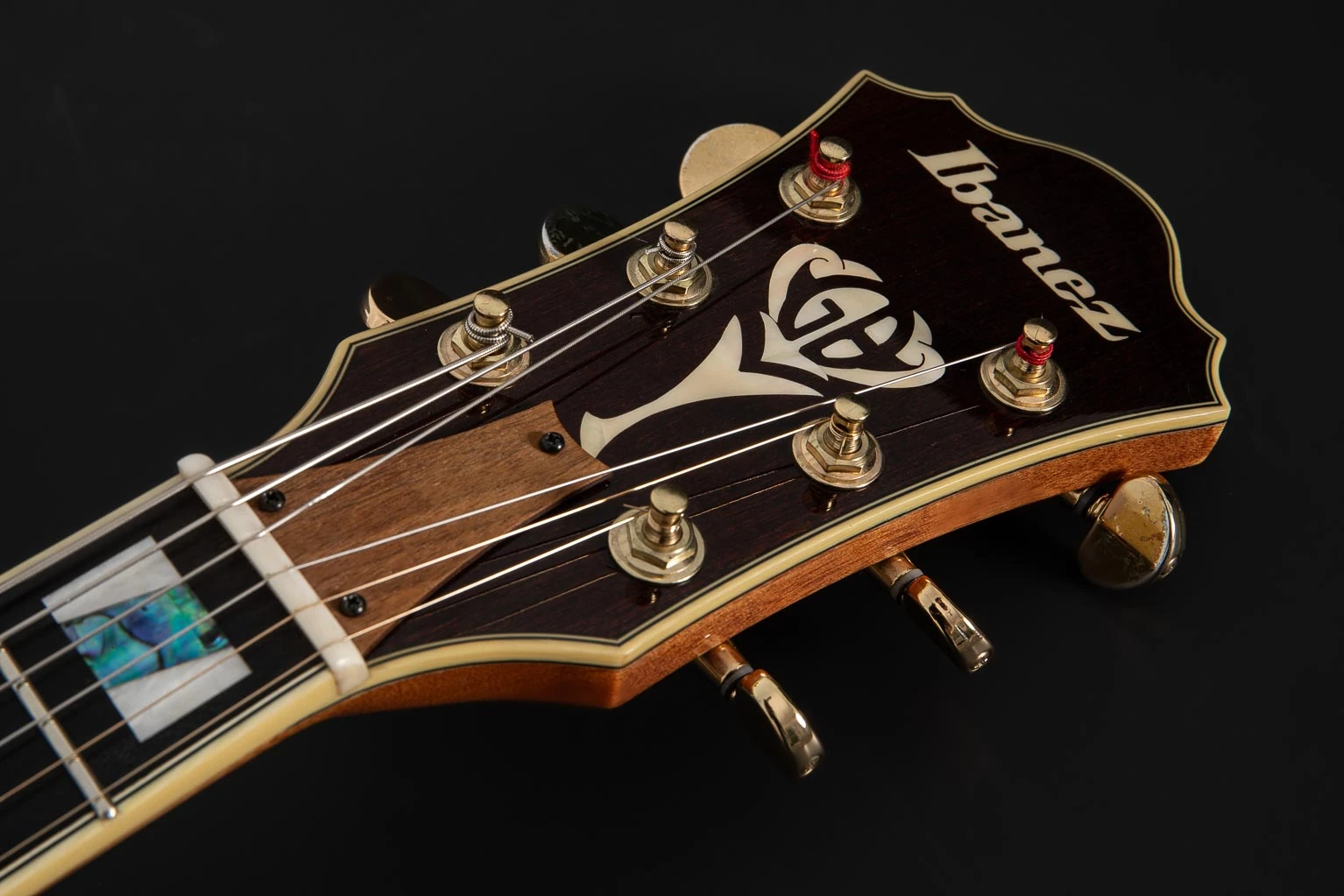

Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 bridge (H) passive/alnico
Neck pickup:
Ibanez Super 58 neck (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.011/.015/.022w/.030/.040/.050 flatwound
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Other finishes

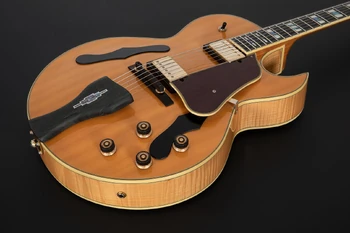

2019 LGB30 NT 5B 01
Natural
Additional details
HH 3-way toggle
Pickup switching
Controls GB10
Controls layout

Video[]

George Benson on his new Ibanez LGB30 signature model


Sources[]

  1. LGB30 product page, Ibanez Japan, archived January 2023
  • George Benson artist signature page, Ibanez Americas & Oceania, archived January 2021
  • 2014 Europe catalog (p. 28)
  • LGB30 product page, Ibanez USA, archived June 2015
  • 2018 USA catalog (p. 50)
  • LGB30 product page, Ibanez USA, archived July 2019
  • LGB30 product page, Ibanez Europe, archived January 2020
  • LGB30 product page, Ibanez China, archived January 2021
  • LGB30 product page, Ibanez Americas & Oceania, archived June 2022
  • LGB30 product page, Ibanez Asia & Africa, archived January 2024
