LACS9 "ECHO" Transparent Teal Gloss (more images)

The LACS9 "ECHO" is an eight string RG series solid body electric guitar model introduced by Ibanez for 2022. It was crafted by L. A. Custom Shop in California as part of the 50th anniversary of Ibanez’s US-based distributor Hoshino U.S.A. Inc.

The LACS9 is a One-off model which is sold exclusively by select Ibanez music retailers.

The LACS9 - "ECHO" features box set neck construction with white mahogany body and quilted maple top, a 5 piece roasted maple neck, with rosewood fingerboard, 24 jumbo frets with Custom pearloid and maple Tree of Life, luminlay side dots inlays and a matching headstock. Components include a DiMarzio Ionizer 8 NeckHumbucking pickups on the neck position and a DiMarzio Ionizer 8 BridgeHumbucking pickups in the bridge position, an Ibanez Gibraltar Standard II (fixed) bridge, gold hardware, Gotoh MB-500 Mini machine heads and includes hardshell case & certificate of authenticity.

LACS9 - "ECHO" Build

The name Echo, is derived from the hollowed out body wings of this guitar and how if one found themselves alone in any type of chamber, they might hear an echo or two. Even out of sight, the hidden hollow body construction may be the most unique feature of this RG8. While the choice was primarily made for increased warmth and resonance, it also greatly reduced the overall weight of the instrument. At 7.5 pounds, this may very well be the lightest 8-string RG ever built.

An unusual feature of the RG8 is a modified take on the classic bolt-on neck pocket. The box set neck construction provides a fuller and tighter contact between the neck and body, allowing for excellent resonance throughout the entire range of the instrument.

Related content: RG series |
Specifications for LACS9 - "ECHO"
Model name: LACS9 - "ECHO"
Year(s) offered: 2022
Sold in: USA
Made in: USA
Price: MSRP: US$17,999.99
Finish(es): Transparent Teal Gloss
Body
Body type:
Solid body
Body material:
White Mahogany (Hollow wings and solid center block) w/ quilted maple top
Neck joint:
Box Set Neck
Bridge:
Ibanez FX8 (fixed)
Knob style:
2 Tek Grip knob (gold)
Hardware color:
Gold
Neck
Neck type:
Half Round
Thickness: 20mm at 1st fret - 22mm at 12th fret
Width: 55mm at nut and 80mm at 24th fret
Neck material:
5-piece roasted maple
Scale length:
686mm/ 27"
Fingerboard material:
Rosewood
Fingerboard inlays:
Custom 8-String Tree of Life (Pearloid / Maple) and luminlay side dots
Frets:
24 / Jumbo
Machine heads:
Gotoh MB-500 Mini
String gauge (factory):
.009/.011/.016/.024/.032/.042/.054 (D'Addario EXL120-7)/.065
Factory tuning:
1D# 2A# 3F# 4C# 5G# 6D# 7A# 8F
Electronics
Pickup configuration:
HH
Bridge pickup:
DiMarzio Ionizer 8 Bridge (H)
Neck pickup:
DiMarzio Ionizer 8 Neck (H)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

2022 Ibanez LACS9 - "ECHO" ( Rear: Mahogany body with a 5-piece roasted maple box set neck construction and Gotoh MB-500 Mini machine heads )
Additional details

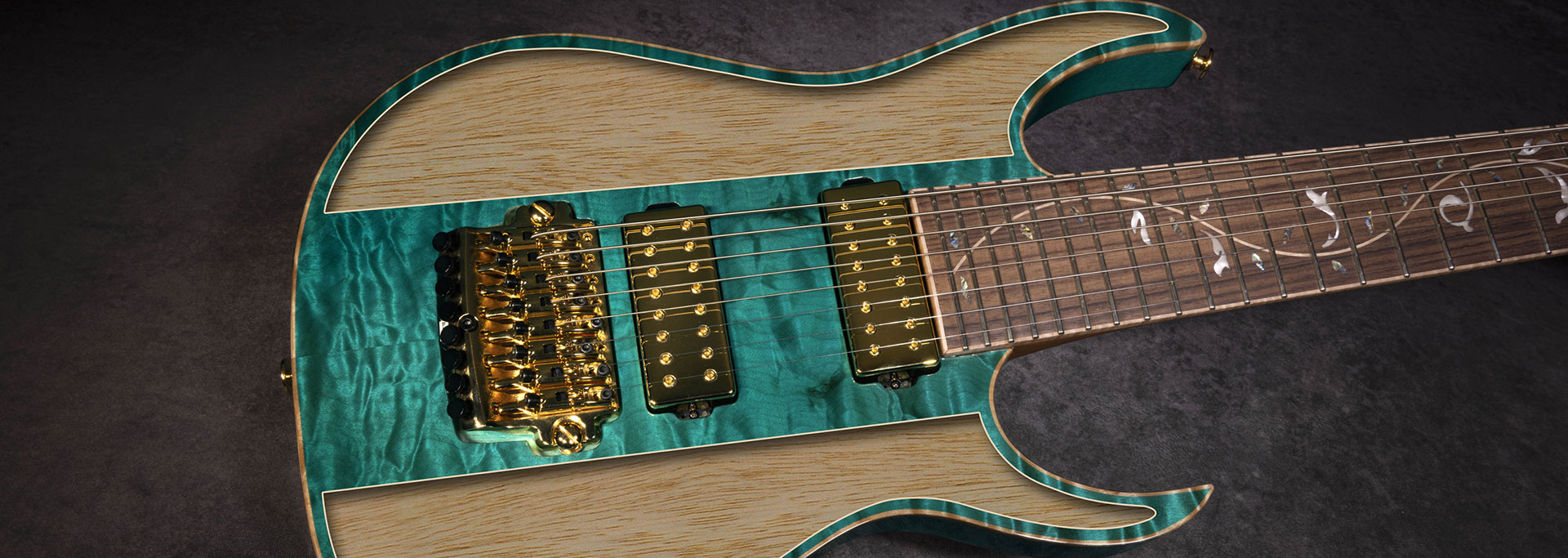

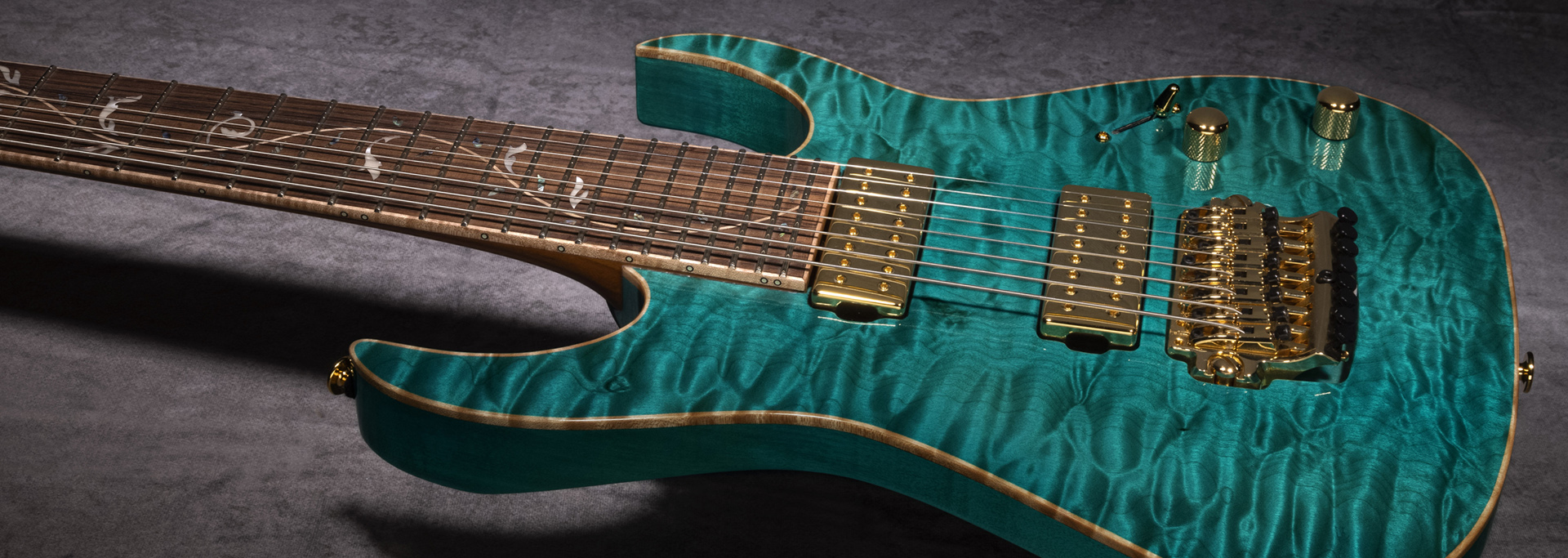

Transparent Teal Gloss - Quilted Maple top
Box Set Neck construction

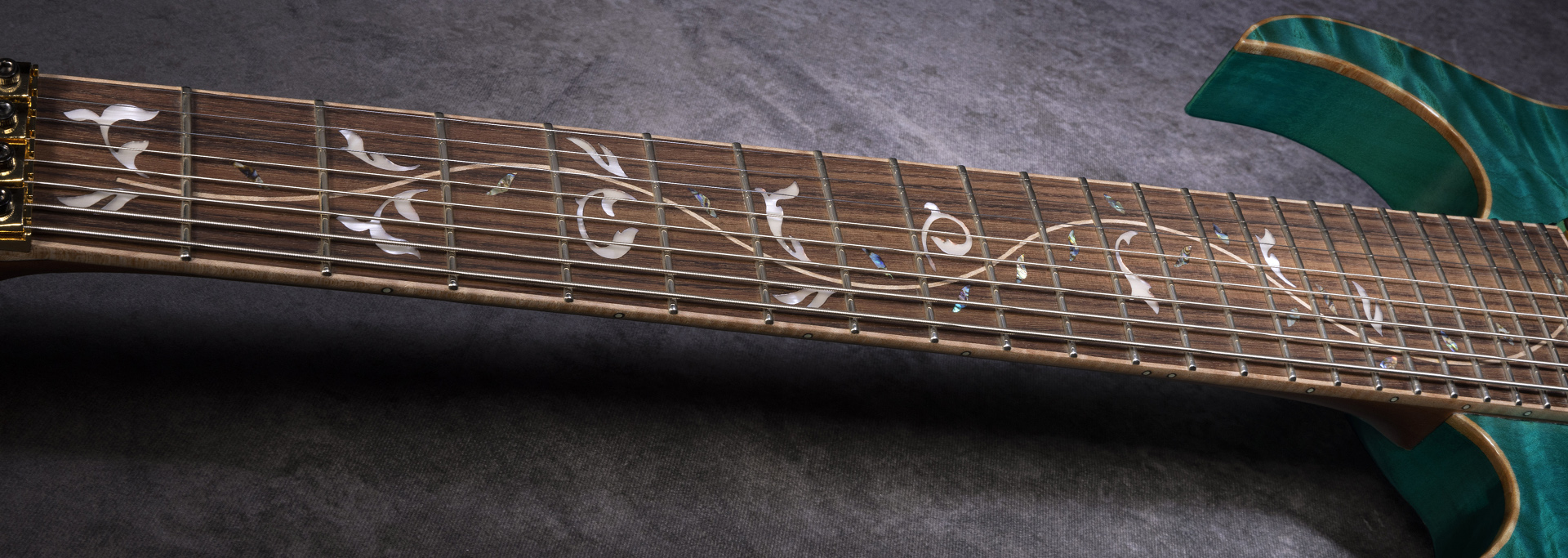

Custom 8-String Tree of Life inlay

Sources[]

Ibanez "Hoshino (USA) Inc. 50th Anniversary" : LACS9 "ECHO" product page / February 2022
