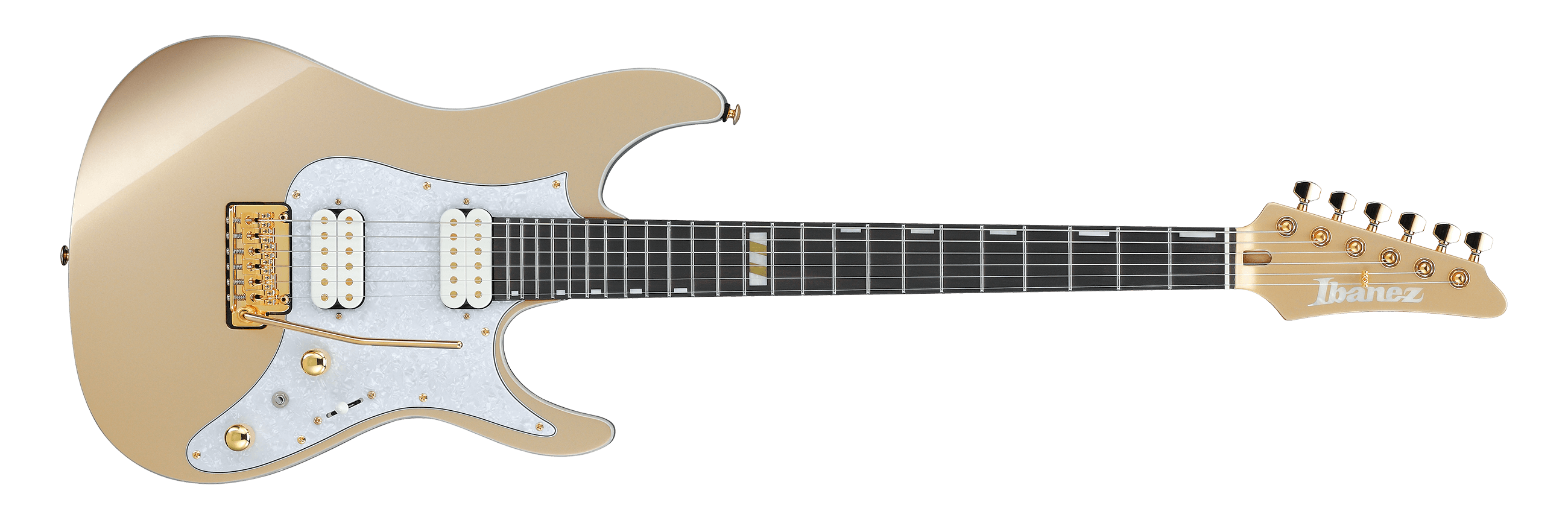

2022 KRYS10 1P 01
KRYS10 Gold top Red copyright sprite

The KRYS10 is an AZ series solid body electric guitar model introduced by Ibanez in late 2022. It is the second Ibanez signature model for American guitarist Scott LePage of the instrumental rock band Polyphia. It is produced in Indonesia as part of the mid-tier Premium line.

The KRYS10 features an ash body with pearloid top binding bolted to a one-piece roasted maple neck with an ebony fingerboard with 24 stainless steel frets, offset block position markers and luminescent side dots. Components include a pair of custom active Fishman Fluence humbucking pickups mounted in a white pearloid pickguard, a Gotoh T1502 two-point synchronized tremolo bridge, a Graph Tech TUSQ nut, an angled output jack, Gotoh locking tuning machines and knurled metal knobs.

The finish is a gold top with a dark gray back and the hardware is also gold. It's believed the model name is inspired by the Greek word for gold, "krysos".

The SLM10 is LePage's earlier signature model.

Specifications[]

Specifications for KRYS10
Model name: KRYS10
Year(s) offered: 2022–2024
Sold in: Worldwide
Made in: Indonesia
Price: MSRP: JP¥ 250,000 (2024)[1] • SMAP: US$1,499.99 (2024)[2]
Finish(es): gold top
Body
Body type:
Solid body
Body material:
Ash w/ pearloid binding
Neck joint:
Super All Access
Bridge:
T1502 tremolo (10.5mm string spacing)
Pickguard:
3-ply white pearloid/ black/ white
Knob style:
Knurled metal dome
Hardware color:
Gold
Neck
Neck type:
AZ Oval C Premium (24 fret)
Neck material:
One-piece roasted maple
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Offset white block, split block at 12th fret
Frets:
24 / jumbo stainless steel
Nut:
Graph Tech White TUSQ (42mm)
Machine heads:
Gotoh SG381 MG-T locking
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Fishman Fluence Scott LePage Custom Series bridge (H) active/ alnico
Neck pickup:
Fishman Fluence Scott LePage Custom Series neck (H) active/ alnico
Controls:
Master volume / master tone / 5-way lever pickup selector / 3-way Fluence voicing toggle
Battery:
9V
Output jack:
¼" stereo barrel (angled side mount)
String gauge (factory):
.010/.013/.017/.026/.036/.046 (D'Addario EXL110)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

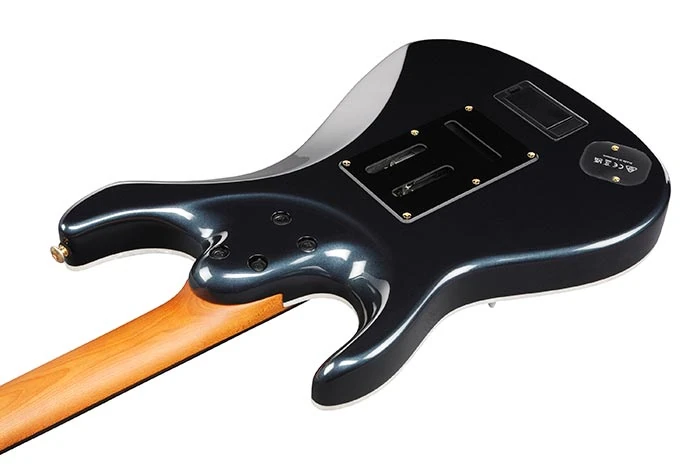

2022 KRYS10 1P 01 body-rear
Body rear

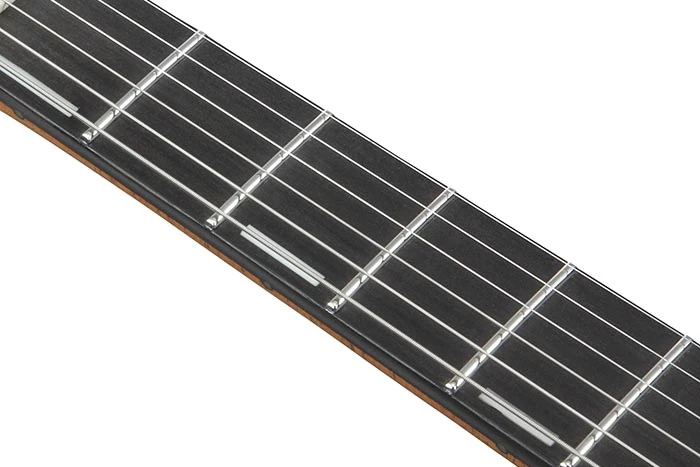

2022 KRYS10 fretboard
Ebony fretboard w/ offset block inlays
Pickup-switching HH-5-way Fluence-toggle
Pickup switching

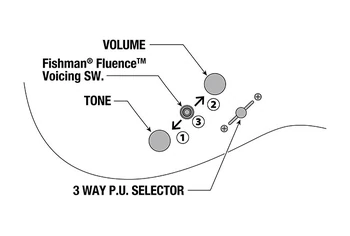

Controls-layout VT5 Fluence-voice-toggle
Controls layout

Sources[]

  1. KRYS10 product page, Ibanez Japan, archived February 2024
  2. KRYS10 product listing, Sweetwater (US retailer), archived February 2024
  • Scott LePage artist signature page, Ibanez Americas & Oceania, archived December 2022
  • KRYS10 product page, Ibanez Europe, archived November 2022
  • KRYS10 product page, Ibanez Americas & Oceania, archived January 2023
  • KRYS10 product page, Ibanez China, archived January 2024
