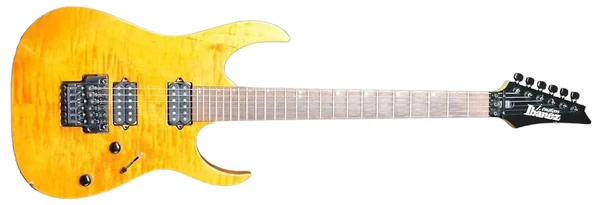

1997 KRG1502

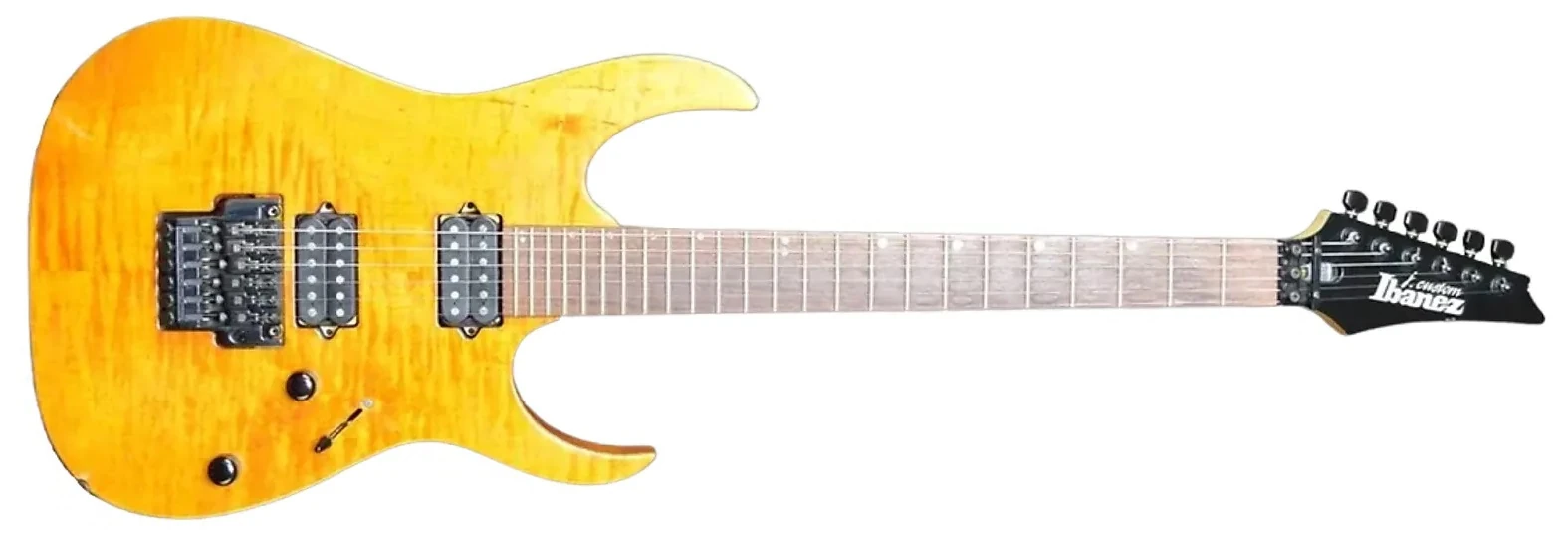

KRG1502 Natural (more images) Red copyright sprite

The KRG1502 is an RG series solid body electric guitar model introduced by Ibanez in 1996. It was made in Japan by FujiGen as part of the high end J Custom range. The KRG1502 was a spot model produced for sale exclusively by Japanese retail Musicland Key.

The KRG1502 features a 7mm thick flame maple top with natural binding on a mahogany body bolted to a maple neck with a 24-fret rosewood fingerboard with offset dot position markers. Components include a pair of DiMarzio humbucking pickups, a Lo-Pro Edge double locking tremolo bridge with a locking nut and Gotoh tuning machines.

The KRG1502M is a similar model with a maple fretboard; the KRG1602 is another similar model with different pickups. The RRG1502S is a related spot model made for Rock Inn.

The KRG1502 was discontinued after 1997.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for KRG1502
Model name: KRG1502
Year(s) offered: 1996–1997
Sold in: Japan
Made in: Japan
Finish(es): Natural (NT) / Royal Violet (RV)
Body
Body type:
Solid body
Body material:
Mahogany w/ 7mm flame maple top w/ natural binding
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
RG J Custom Ultra
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone offset dot
Frets:
24 / 6100
Nut:
Top-Lok III
Machine heads:
Gotoh SG38
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio Air Zone (H)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finishes/ details
Royal Violet
HH 5-way single-split
Pickup switching diagram
Controls VT5
Control layout
Wimage An image for this article is missing!
An image of the KRG1502 Royal Violet (RV) is wanted for this article. You can help by finding, uploading and adding it!
