KOMRAD20 RS.jpg

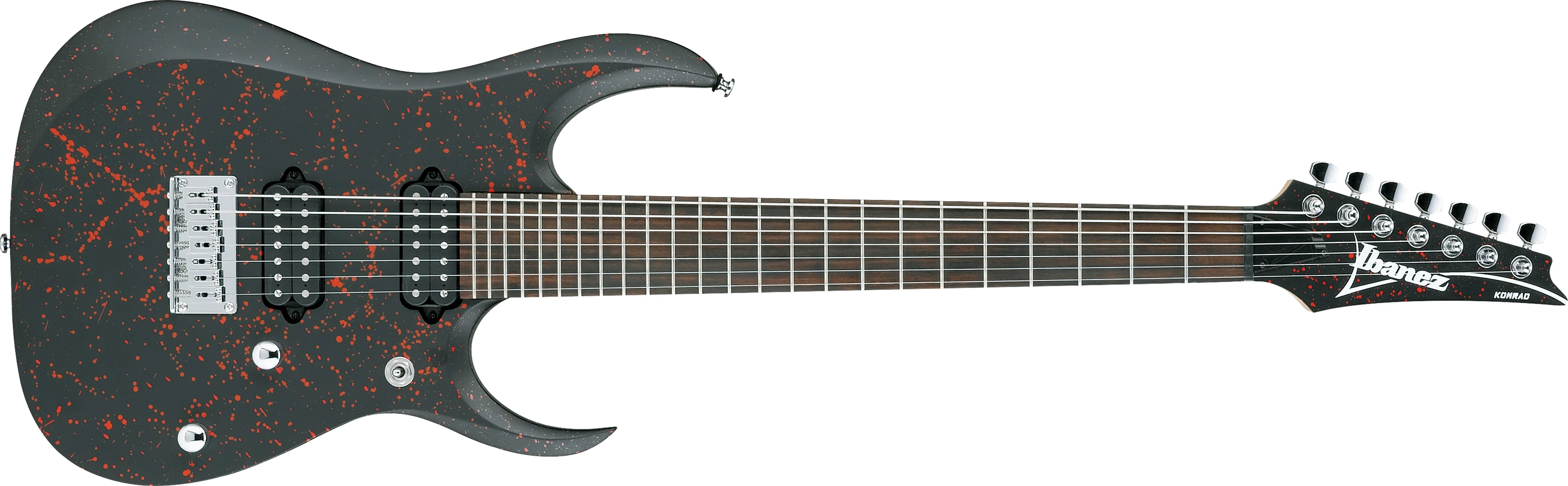

KOMRAD20RS (Red Splatter) (more images) Red copyright sprite.png

The KOMRAD20 is a seven-string solid body electric guitar model introduced by Ibanez in 2014. It is a Signature guitar of Brian "Head" Welch of the American nu metal band Korn. The guitar was produced in Japan by FujiGen and is based on the RGD series.

The KOMRAD20 features a basswood body bolted to a maple neck with a 24-fret rosewood fingerboard with no inlays. Components include DiMarzio PAF7 pickups and a fixed bridge.

In 2015 a new Red Splatter (on black) finish replaced 2014's white splatter finish and henceforth the model has been referred to as the KOMRAD20RS.

Welch left Ibanez for ESP/LTD in late 2016, but the KOMRAD20RS still appeared in the 2017 catalogs, perhaps due to the lead times in producing the catalog. The guitar was removed from the Ibanez websites in January 2017.

Specifications

Specifications for KOMRAD20
Model name: KOMRAD20 / KOMRAD20RS
Year(s) produced: 2014–2017
Sold in: Japan
Made in: Indonesia
Finish(es): Black w/ white splatter 2014 / Red Splatter (RS) 2015–2017
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
Fixed bridge
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
Wizard II-7
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
None
Frets:
24 / medium
Nut:
Black plastic (48mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio PAF7 (H)
Neck pickup:
DiMarzio PAF7 (H)
Controls:
Master volume / master tone / 3-way toggle pickup selector
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.011/.013/.017/.026/.046/.060/.074
Factory tuning:
1D,2A,3F,4C,5G,6D,7A

Images

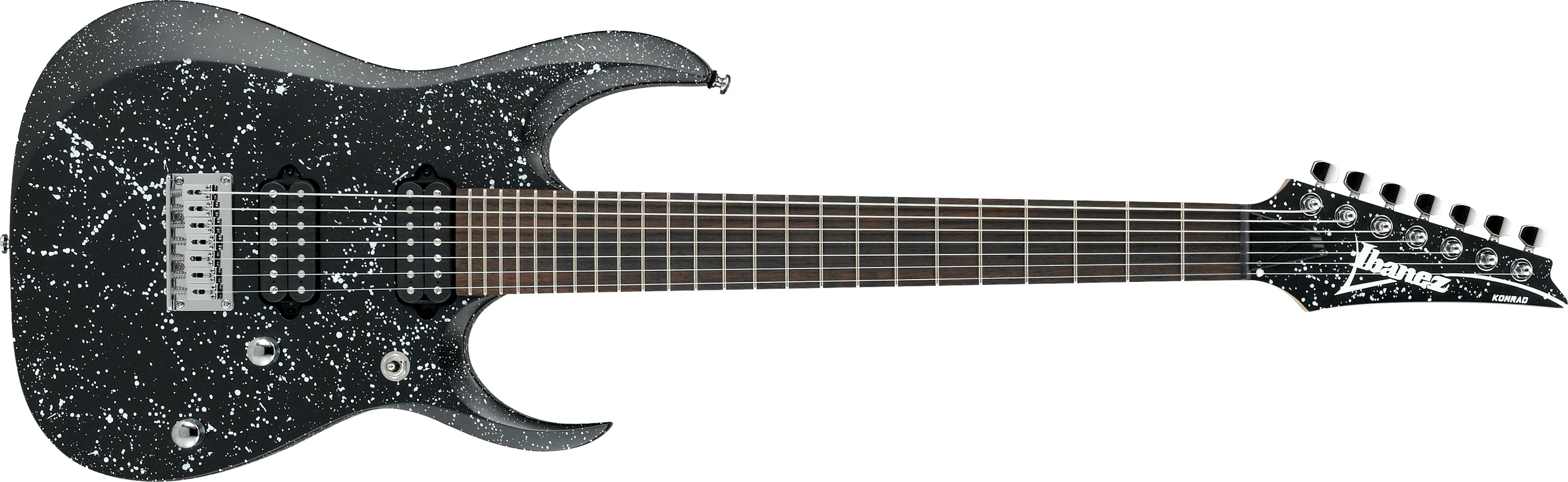

KOMRAD20 (White Splatter) Red copyright sprite.png
