2020 K5LTD FGM 1P 01

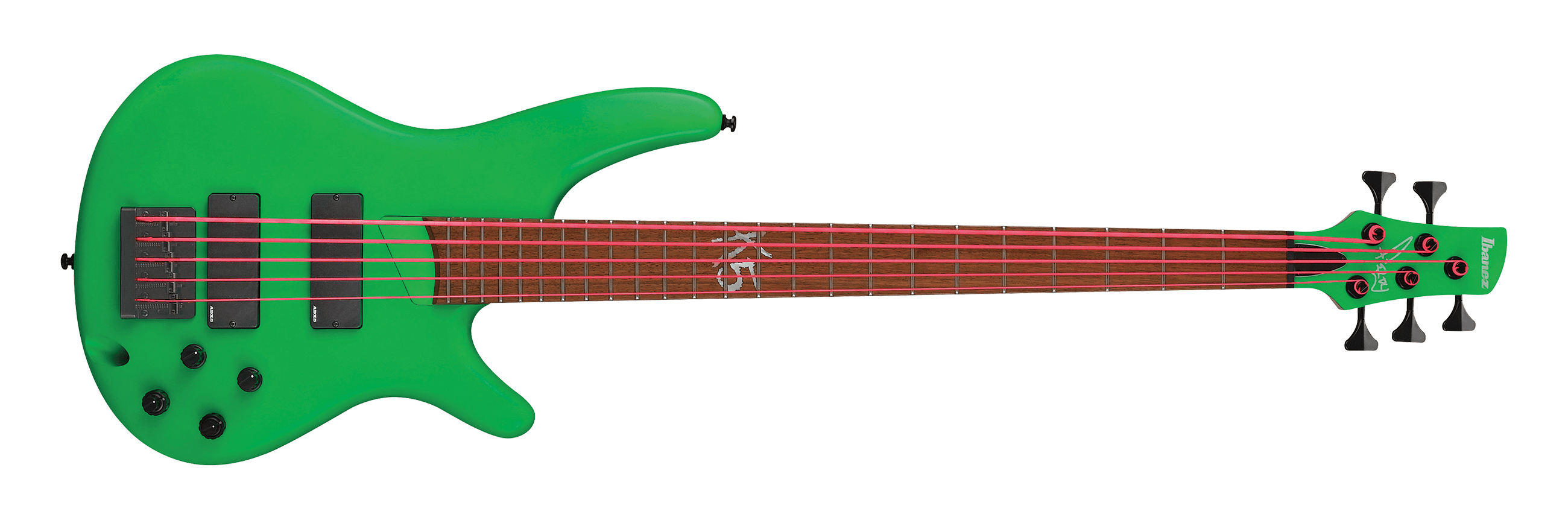

K5LTD Fluorescent Green Matte Red copyright sprite

The K5LTD is a five string solid body electric bass model introduced by Ibanez for 2020. It is a limited edition signature model for American bassist Reginald "Fieldy" Arvizu who is best known for his work with the nu metal band Korn. It is produced in Indonesia.

The K5LTD features an SR series double-cutaway nyatoh body bolted to a maple and walnut neck with a 24-fret jatoba fingerboard with a K5 logo at the twelfth fret. Components include a pair of Ibanez ADX-5 active bass pickups with a Vari-Mid III preamp with a three-band EQ, a EB-7 fixed bridge with 16.5mm string spacing, a plastic nut and DR neon pink coated strings.

The K5 is a regular production model with a flat black finish. The K5WHLTD is an earlier limited edition version from 2014 with a white finish.

Specifications

Specifications for K5LTD
Year(s) produced: 2020
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: Indonesia
Finish(es): Fluorescent Green Matte (FGM)
Body
Body type:
Solid body
Body material:
Nyatoh
Neck joint:
AANJ
Bridge:
EB-7 fixed (16.5mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
K5
Neck material:
5-piece maple/ walnut
Scale length:
864mm / 34"
Fingerboard material:
Jatoba
Fingerboard inlays:
K5 logo at 12th fret
Frets:
24 / medium
Nut:
Black plastic (45mm)
Machine heads:
Hipshot tuners
Electronics/ Strings
Bridge pickup:
Ibanez ADX-5B active
Neck pickup:
Ibanez ADX-5N active
Electronics:
Vari-Mid III preamp w/ 3-band EQ
Controls:
Master volume / Stacked bass & treble / Stacked mid boost-cut & mid frequency control / Balancer
Battery:
9V
Output jack:
¼" stereo barrel (angled top mount)
String gauge (factory):
.045/.065/.085/.105/.130 (DR Neon pink coated)
Factory tuning:
1G,2D,3A,4E,5B

Images

Additional details
Controls K5
Controls layout
Vari-Mid III EQ frequency chart
Preamp frequency response chart
