JS900 BP

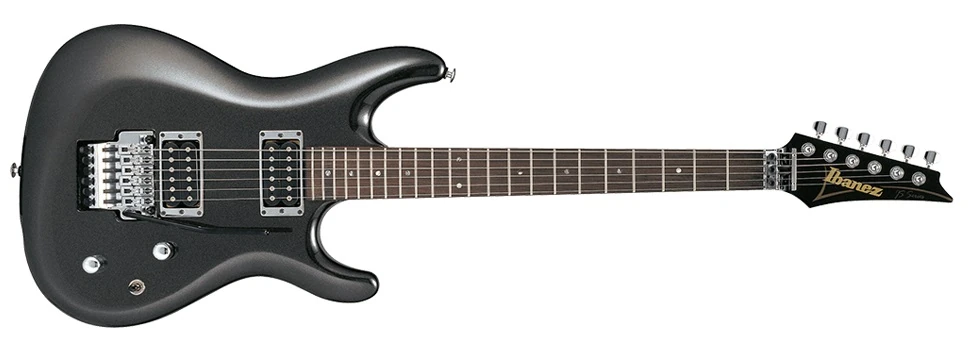

JS900 Black Pearl (more images) Red copyright sprite

The JS900 is a JS series solid body electric guitar model introduced by Ibanez in 1998. It is a signature model of American guitarist Joe Satriani. It was made in Japan by FujiGen.

The JS900 features a basswood body bolted to a maple neck with a 22-fret rosewood fingerboard with abalone dot position markers. Components include two DiMarzio humbucking pickups, an Edge double locking tremolo bridge and Gotoh tuning machines.

The JS900 is a simplified version of the JS1000, without the switchable high pass filter (it's always on) and coil split and with the original Edge tremolo instead of the Lo Pro Edge. It replaced the JS1000 outside the USA.

The JS900 was discontinued after 2004.

Specifications[]

Specifications for JS900
Model name: JS900
Year(s) offered: 1998–2004
Sold in: Worldwide (except USA)
Made in: Japan
Finish(es): Black Pearl (BP)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Tilt Joint
Bridge:
Edge tremolo
Hardware color:
Chrome
Neck
Neck type:
JS
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone dot
Frets:
22 / Dunlop #6105
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
Electronics
Pickup configuration:
HH
Bridge pickup:
DiMarzio FRED (H)
Neck pickup:
DiMarzio PAF Pro (H)
Controls:
Master volume / master tone / 3-way toggle pickup selector

Images[]

Additional details

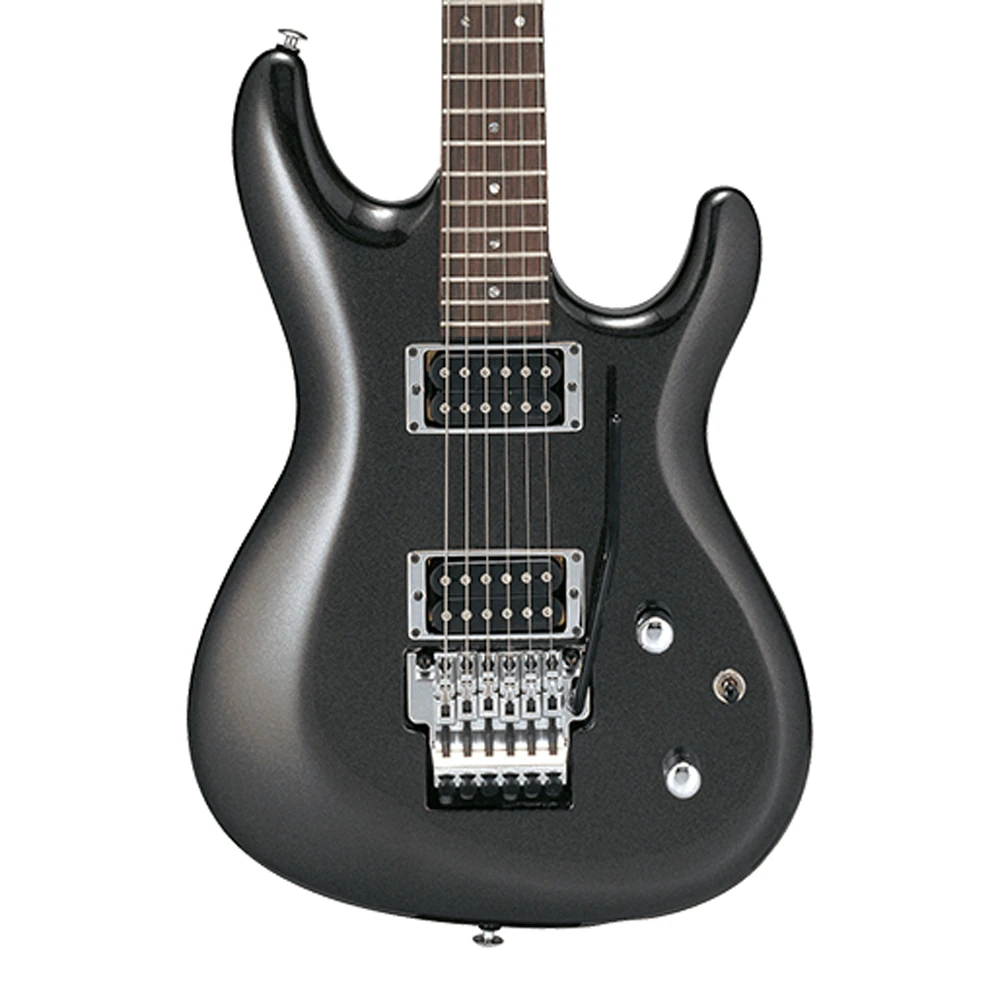

JS900 BP front
Front of body
