JS2450 MCP

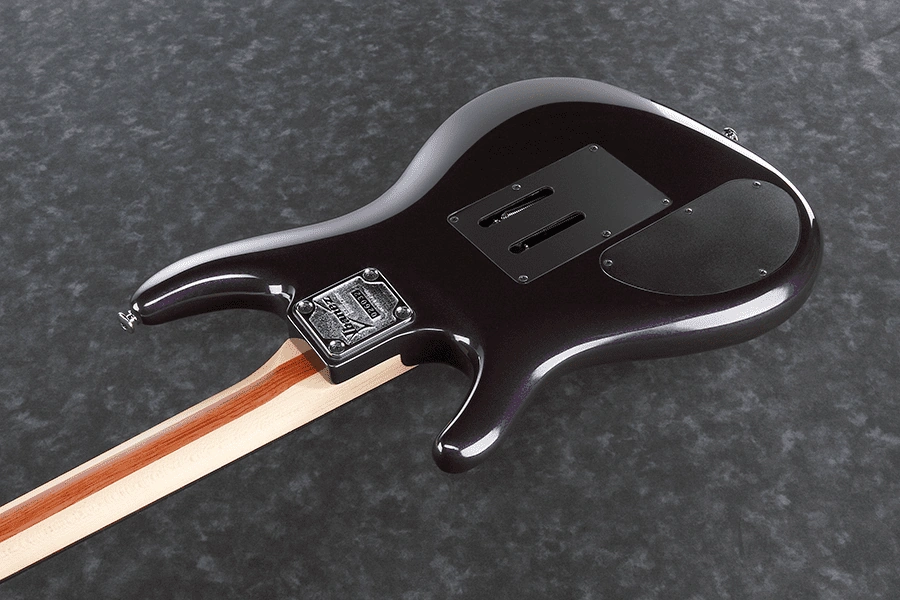

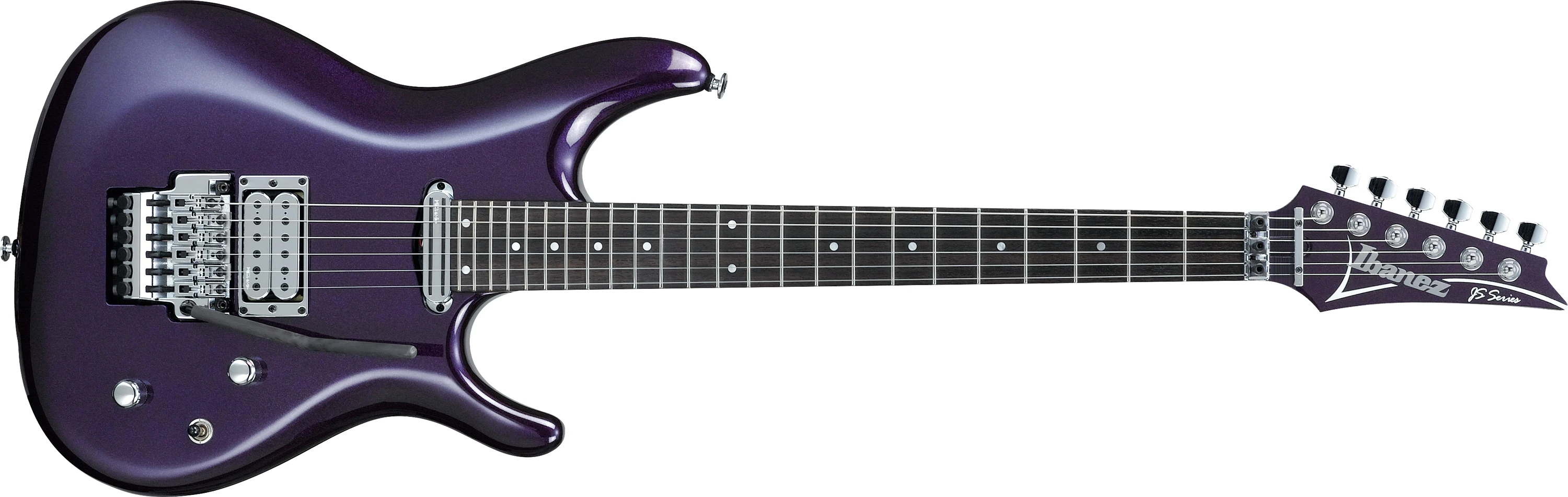

JS2450 Muscle Car Purple (more images) Red copyright sprite

The JS2450 is a JS series solid body electric guitar model introduced by Ibanez in mid 2014. It is a signature model of American guitarist Joe Satriani which is produced in Japan by FujiGen

The JS2450 was introduced at the 2014 Summer NAMM Show. It is very similar to the JS2410 with the only apparent difference being the finish and the JS2450's chrome pickups, rather than the color-matched pickups on the JS2410.

The JS2450 alder body bolted to a maple and bubinga neck with a 24-fret rosewood fingerboard with mother of pearl dot position markers. Components include DiMarzio pickups with color-matched bobbins with a Mo Joe humbucker at the bridge and a Satch Track single-coil sized humbucker at the neck, an original Edge double locking tremolo bridge with a carbon fiber Ultralite tremolo arm and Gotoh tuning machines.

For 2016, a new Muscle Car Black finish was added; this finish was discontinued after 2017.

Specifications

Specifications for JS2450
Year(s) produced: 2014–2020
Sold in: Worldwide
Made in: Japan
Finish(es): Muscle Car Purple (MCP) / Muscle Car Black (MCB) 2016–2017
Body
Body type:
Solid body
Body material:
Alder
Neck joint:
Tilt Joint
Bridge:
Edge tremolo w/ Ultralite tremolo arm (10.8mm string spacing)
Knob style:
Gotoh VK1-19 (knurled metal dome)
Hardware color:
Chrome
Neck
Neck type:
JS Prestige
Neck material:
3-piece maple/ bubinga
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Mother of pearl dot
Frets:
24 / medium (Prestige edge treatment)
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio Mo' Joe (H)
Neck pickup:
DiMarzio Satch Track (H)
Controls:
Master volume (w/ high pass filter tone push/pull) / master tone (w/ coil-split push/pull) / 3-way toggle
String gauge (factory):
.009/.011/.016/.024/.032/.042

Images

Other finishes/ details

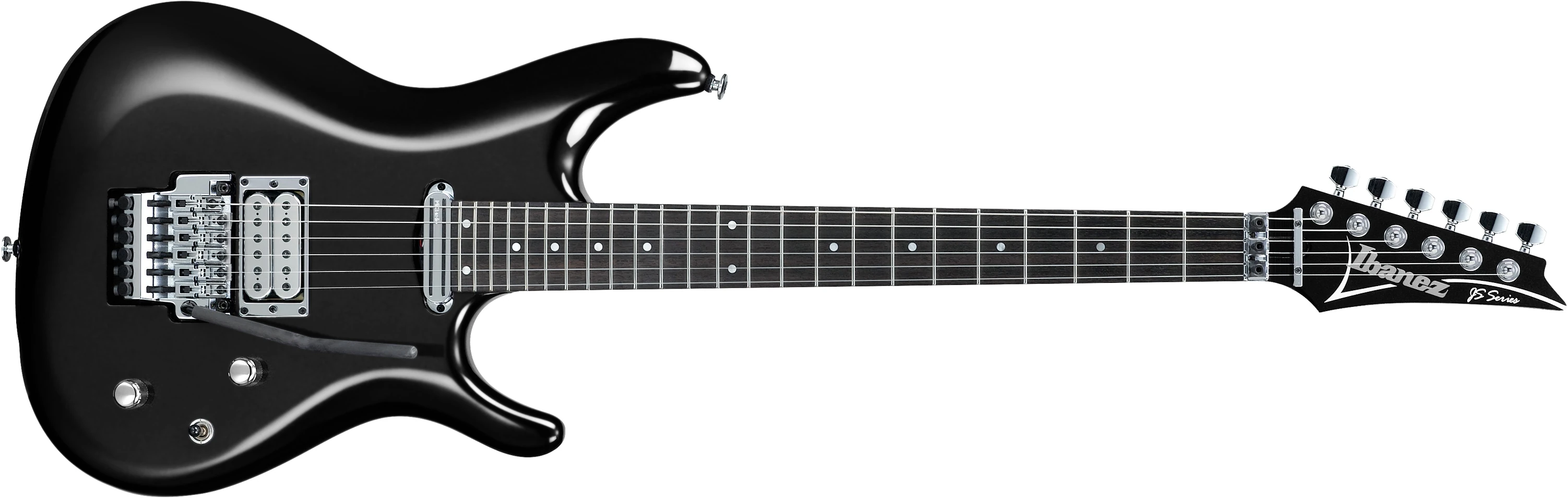

JS2450 MCB
Muscle Car Black
HS 3-way-push-pull split
Pickup switching diagram
JS HS control-layout
Control layout
