2020 JS240PS CA 1P 01

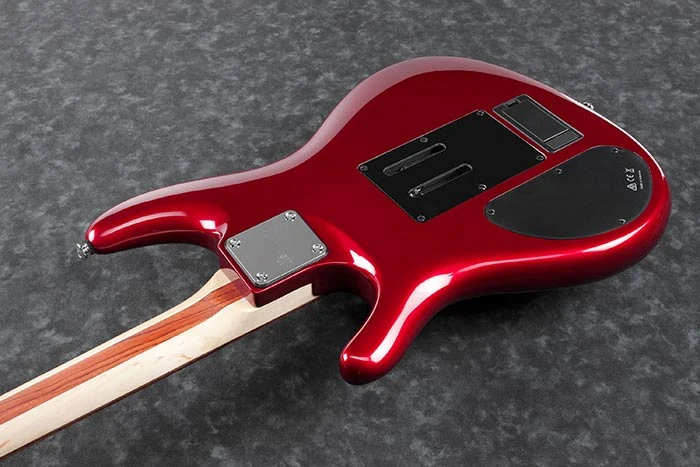

JS240PS Candy Apple Red copyright sprite

The JS240PS is a JS series solid body electric guitar model introduced by Ibanez for 2020. It is a signature model of American guitarist Joe Satriani. It is produced in Indonesia as part of the Premium line.

The JS240PS features an American basswood body bolted to a titanium reinforced maple and purpleheart neck with a 24-fret panga panga fingerboard with white dot position markers. Components include a DiMarzio Satchur8 humbucker at the bridge, an Edge double locking tremolo bridge and Ibanez die-cast tuning machines.

The defining feature of this model is the Sustainiac driver neck pickup. The Sustainiac feature is controlled by a push-pull on/off switch on the tone control as well as a 3-way toggle with three settings: harmonic, normal or mixed. Additionally the volume control has a push-pull switch which activates a high-pass filter.

The JS240PS replaced the JS24P which lacked the Sustainiac, but was otherwise similar.

Specifications

Specifications for JS240PS
Year(s) produced: 2020
Sold in: Worldwide
Made in: Indonesia
Finish(es): Candy Apple (CA)
Body
Body type:
Solid body
Body material:
American basswood
Neck joint:
Tilt Joint
Bridge:
Edge tremolo (10.8mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
JS Premium
Neck material:
3-piece maple/ purpleheart w/ KTS titanium rods
Scale length:
648mm/ 25½"
Fingerboard material:
Panga panga
Fingerboard inlays:
White dot
Frets:
24 / medium (Premium edge treatment)
Nut:
Top-Lok III
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio Satchur8 (H) passive/ alnico
Neck pickup:
Sustaniac driver (S)
Controls:
Master volume (w/ high pass filter tone push-pull) / master tone (w/ push-pull Sustainiac activation) / 3-way toggle pickup selector / 3-way toggle Sustainic control
Output jack:
¼" stereo
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)

Images

Additional details
HS 3-way-push-pull split
Pickup switching diagram
Controls JS Sustainiac
Control layout
