JS2400 WH

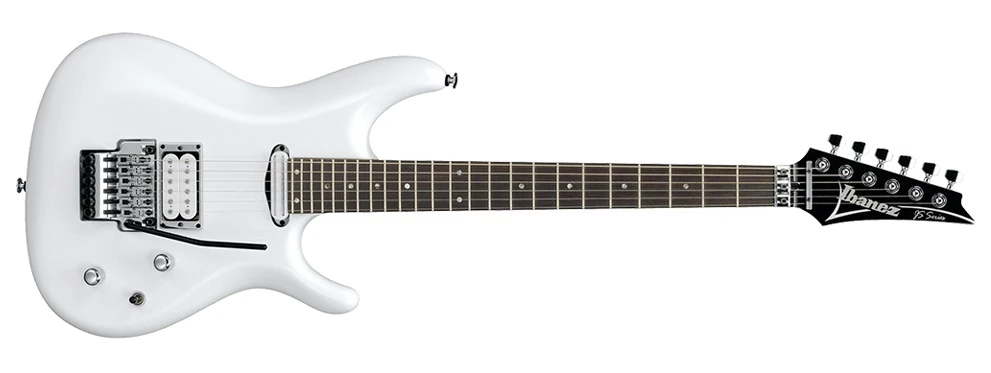

JS2400 White (more images) Red copyright sprite

The JS2400 is a JS series solid body electric guitar model introduced by Ibanez in 2010. It is a signature model of American guitarist Joe Satriani.

The JS2400 is the first JS model featuring 24 frets. Other modifications include an extended cutaway to allow access to the higher frets.

Satriani stated in an interview[1] that he always liked the idea of having 24 frets but never wanted to move the humbucking pickup in the neck position further to the bridge for tonal reasons. A solution was found in the DiMarzio Pro Track pickup, a single coil-sized humbucker mounted right up against the fingerboard.

The JS2400L is a left-handed version which was offered in 2014.

The JS2400 was discontinued after 2014, having been superseded by the JS2410 and JS2450.

Specifications[]

Specifications for JS2400
Model name: JS2400
Year(s) offered: 2010–2014
Sold in: Worldwide
Made in: Japan
Finish(es): White (WH)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Tilt Joint
Bridge:
Edge tremolo (w/ Ultralite tremolo arm in 2013–2014) (10.8mm string spacing)
Knob style:
Gotoh VK1-19 knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
JS Prestige
Neck material:
1-piece maple
Fingerboard material:
Rosewood
Fingerboard inlays:
Abalone dot
Frets:
24 / W/6105
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HS
Bridge pickup:
DiMarzio Mo' Joe (H)
Neck pickup:
DiMarzio Pro Track (H)
Controls:
Master volume (w/ push-pull high-pass filter) / master tone (w/ push-pull coil-split) / 3-way toggle
Output jack:
¼" stereo barrel (side mounted)

Images[]

Additional details

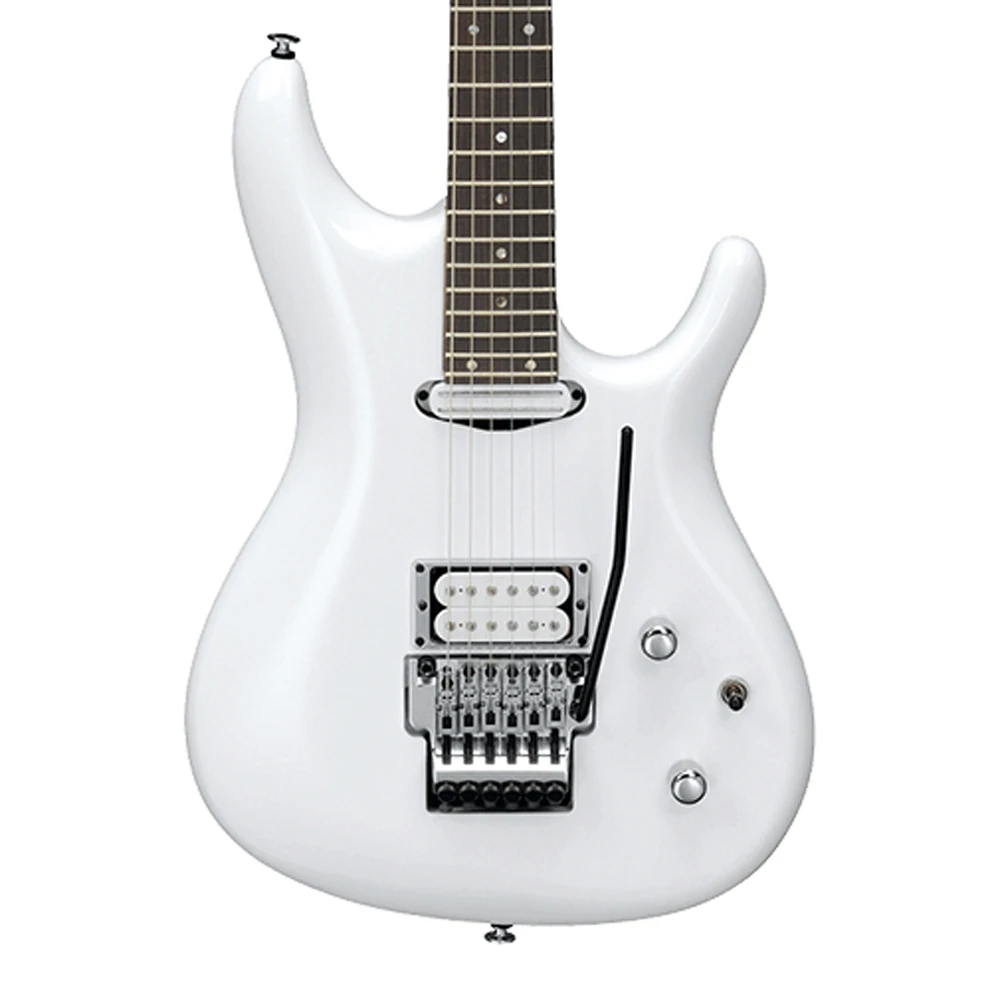

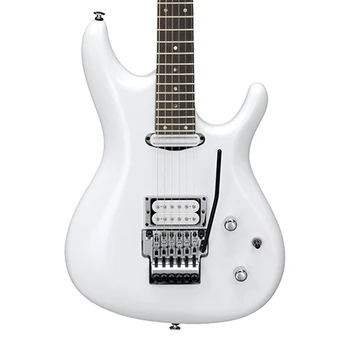

JS2400 WH front
Front of body

Video[]

Ibanez_Introducing_the_JS2400_Joe_Satriani
Ibanez JS2400 ( Introduced by Joe Satriani )


Sources[]

  1. INTERVIEW: Joe Satriani; Hodgson, Peter; I Heart Guitar (blog); June 16, 2009; archived August 2016
