JS20S

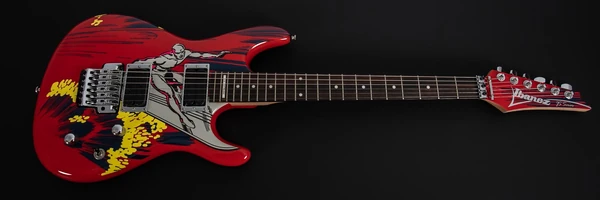

JS20S with Silver Surfer graphic Red copyright sprite

The JS20S is a Joe Satriani series solid body electric guitar introduced by Ibanez in 2008. It is a signature model of American guitarist Joe Satriani. It was initially produced in South Korea, but production was later moved to Indonesia.

The JS20S features a basswood body bolted to a maple neck with a 22-fret rosewood fingerboard with pearloid dot position markers. Components include an Edge III double locking tremolo bridge with a locking nut and dual Ibanez Axis humbucking pickups mounted in chrome pickup rings.

The JS20S is a mass-market version of the much more exclusive (and expensive) Japanese-made JS20th. Both models were produced to commemorate the 20th year of Satriani's relationship with Ibanez.

The JS20S was offered only in 2008.

Specifications[]

Specifications for JS20S
Model name: JS20S
Year(s) offered: 2008
Sold in: Europe / USA
Made in: Korea/ Indonesia
Finish(es): Silver Surfer graphic
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Tilt Joint
Bridge:
Edge III tremolo
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
JS
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearloid dot
Frets:
22 / medium
Nut:
Locking
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez AH2 (H)
Neck pickup:
Ibanez AH1 (H)
Controls:
Master volume / master tone / 3-way toggle pickup selector / push-pull coil-split on tone
String gauge (factory):
.009–.042

Images[]

Additional details

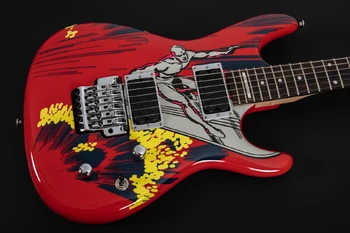

JS20S Body
Front of body

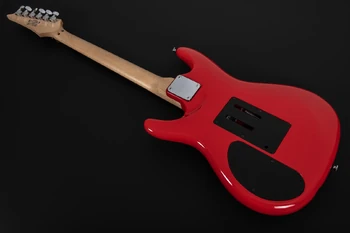

JS20S Rear of Body
Rear of Body

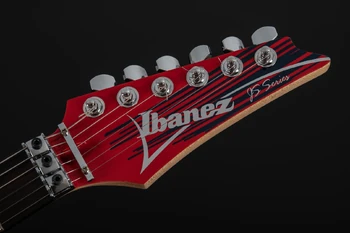

JS20S Headstock
Headstock
HH 3-way-toggle push-pull-coil-split
Pickup switching diagram
Controls VT3 push-pull-split-on-tone
Control layout
