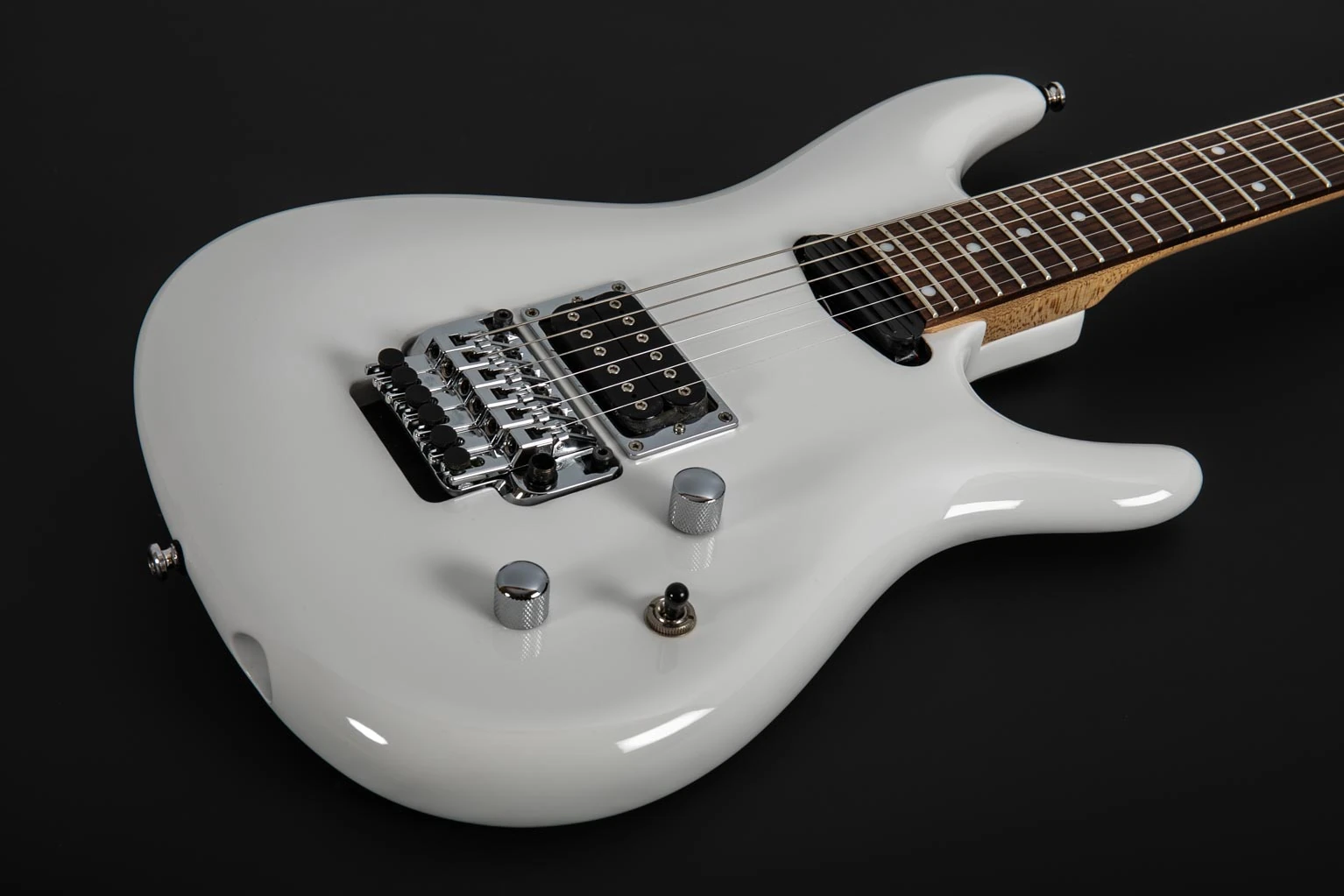

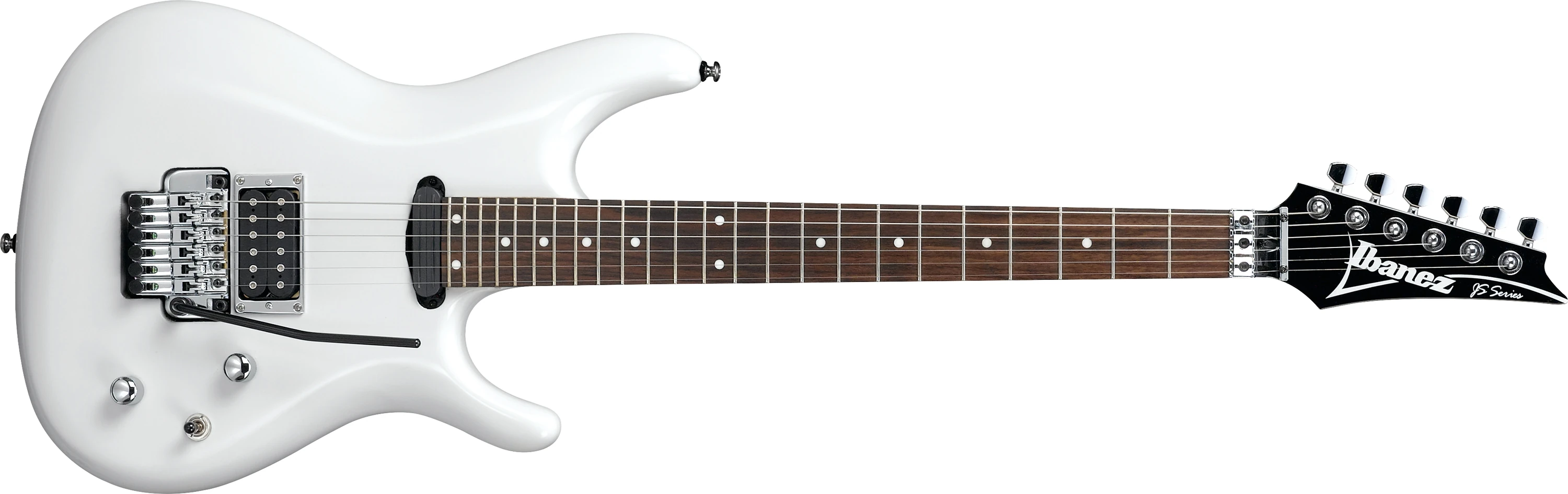

JS140 WH
JS140 White Red copyright sprite

The JS140 is a JS series solid body electric guitar model introduced by Ibanez in 2015. It is a signature model of American guitarist Joe Satriani. It was produced in Indonesia as an entry-level JS model.

The JS140 replaced the JS100 which was discontinued after the 2014 model year. Differences include a new neck with 24 frets and slightly tweaked dimensions, different pickups and a different tremolo bridge.

The JS140 features a basswood body bolted to a maple neck with a 24-fret rosewood fingerboard with dot position markers. Components include Ibanez pickups with a Quantum humbucker at the bridge and an Infinity RD single-coil sized humbucker at the neck and an Edge Zero II double locking tremolo bridge.

For 2018 the rosewood fretboard was replaced with jatoba.

The JS140 was discontinued after 2019 and replaced with the JS140M which has a maple fretboard but is otherwise similar.

Specifications

Specifications for JS140
Year(s) produced: 2015–2019
Sold in: Worldwide (except Japan)
Made in: Indonesia
Finish(es): White (WH)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Tilt Joint
Bridge:
Edge Zero II tremolo (10.8mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
JS
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
2015–2017: Rosewood
2018–2019: Jatoba
Fingerboard inlays:
White dot
Frets:
24
Nut:
Locking (42mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Quantum (H) passive/ ceramic
Neck pickup:
Infinity RD (H) passive/ ceramic
Controls:
Master volume (w/ high pass filter tone push/pull) / master tone (w/ coil-split push/pull) / 3-way toggle
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details

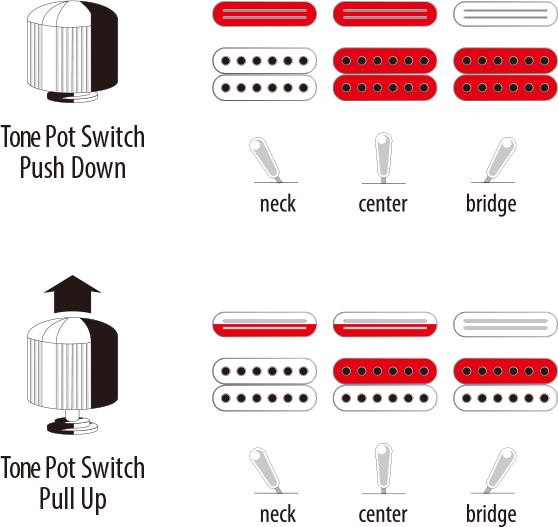

HS 3-way-push-pull split
Pickup switching diagram

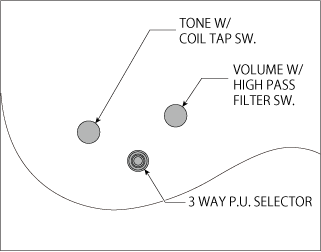

JS HS control-layout
Control layout
