JPCS8 (2022)

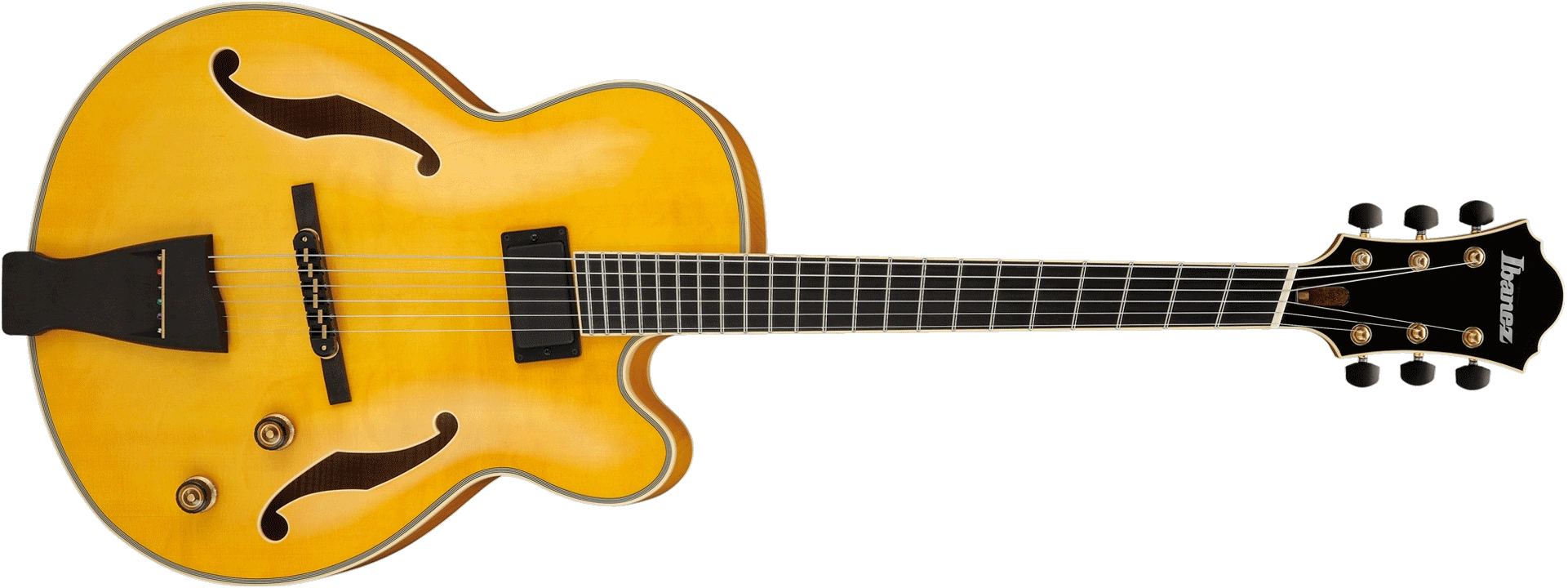

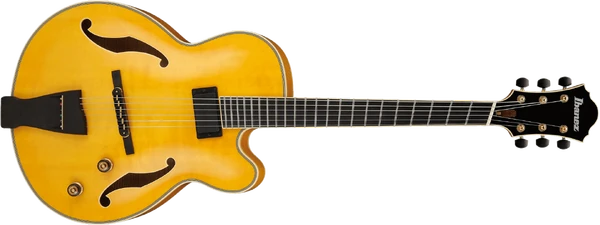

JPCS8 "TOTALLY JAZZED" (more images) Red copyright sprite

The JPCS8 "TOTALLY JAZZED" is a multi-scale Artcore series hollow body electric guitar model introduced by Ibanez for 2022. It was crafted by the Japan Custom Shop in Nagoya as part of the 50th anniversary of Ibanez’s US-based distributor Hoshino U.S.A. Inc.

The JPCS8 is a One-off model which is sold exclusively by select Ibanez music retailers.

The first and most noticeable difference to other Ibanez jazz guitars is the multi-scale construction. The spread on scale lengths is 24.75” on the high E and 25.5” on the low E. The benefits offered are ergonomic as well as tonal.

The JPCS8 - "TOTALLY JAZZED" features a full-hollow body design with spruce top with ƒ holes and ivory multi-binding on flamed maple back and sides with a single Venetian cutaway mated to a set-in african mahogany neck with 22-fret ebony fingerboard with black side dots position markers, a black headstock with the Ibanez logo. Components include a Bartolini™ 1C Humbucking pickups in neck position, a Gotoh Tune-o-matic bridge. Black hardware and Gotoh tuning machines. Includes Hardshell Case & Certificate of Authenticity.


Specifications[]

Related content: Artcore series | Models-icon
Specifications for JPCS8
Model name: JPCS8 - "TOTALLY JAZZED"
Year(s) offered: 2022
Sold in: USA
Made in: Japan
Price: MSRP: US$23,999.99
Finish(es): Natural
Body
Body type:
Hollow body
Top:
  Material: Solid Flamed Maple
Back/sides:
  Material: Solid Flamed Maple
Neck joint:
Set-in
Bridge:
Gotoh Custom T.O.M (10.5mm string spacing)
Tailpiece:
Ebony
Knob style:
Sure Grip III (gold and black)
Hardware color:
Chrome
Neck
Neck type:
C
Thickness: 22.5mm at 1st fret, 25mm a 12th fret
Width: 57mm at 22th fret
Neck material:
African Mahogany
Scale length:
648mm/ 25½" - 628mm/ 24¾" multi scale
Fingerboard material:
Ebony
Radius: 12"
Fingerboard inlays:
Black side dots
Frets:
22 / Jumbo Stainless Steel
Nut:
Ivory plastic (43mm)
Machine heads:
Gotoh w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
H
Neck pickup:
Bartolini 1C (H)
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

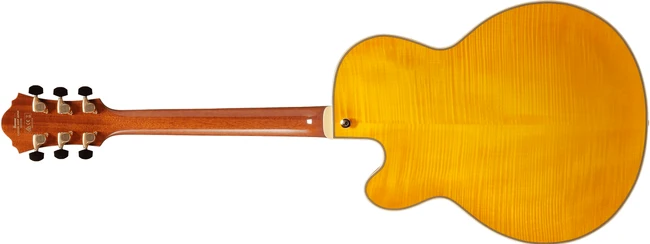

JPCS8 rear
2022 Ibanez JPCS8 - "TOTALLY JAZZED" ( Rear: Swamp Ash body with solid flamed maple back mated to a set-in African mahogany / C Shaped neck and Gotoh tuning machines ) Red copyright sprite
Additional details

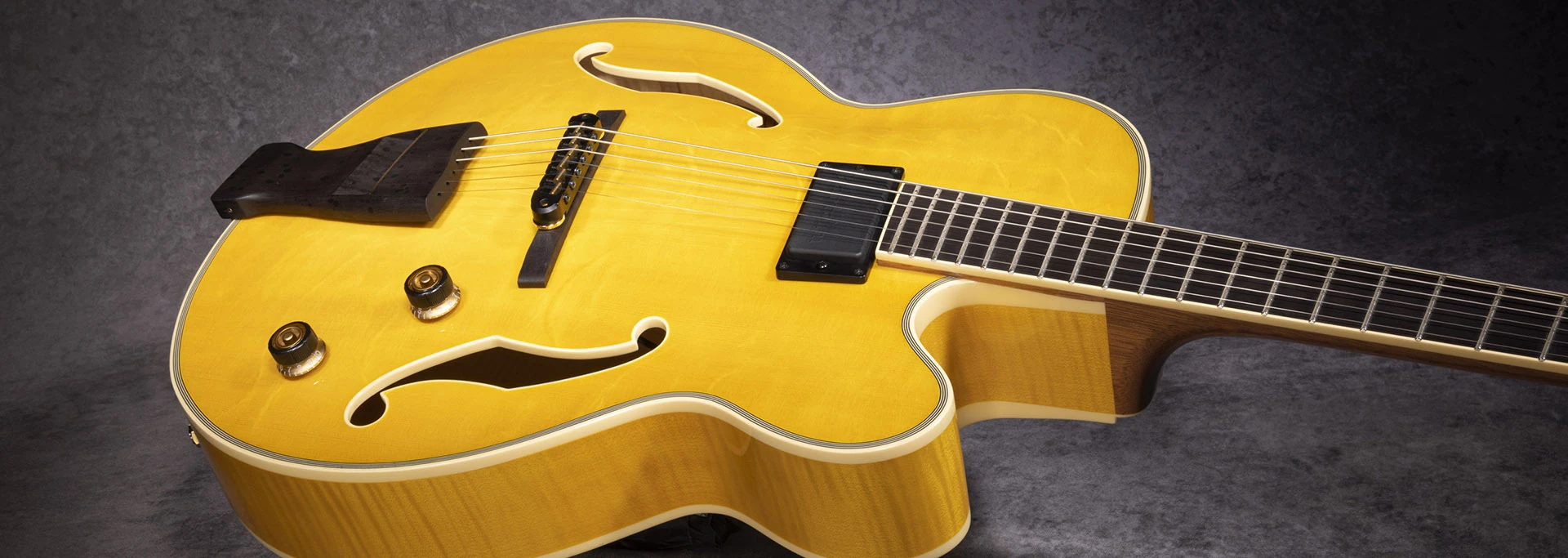

JPCS8 top
Swamp Ash with Spruce top

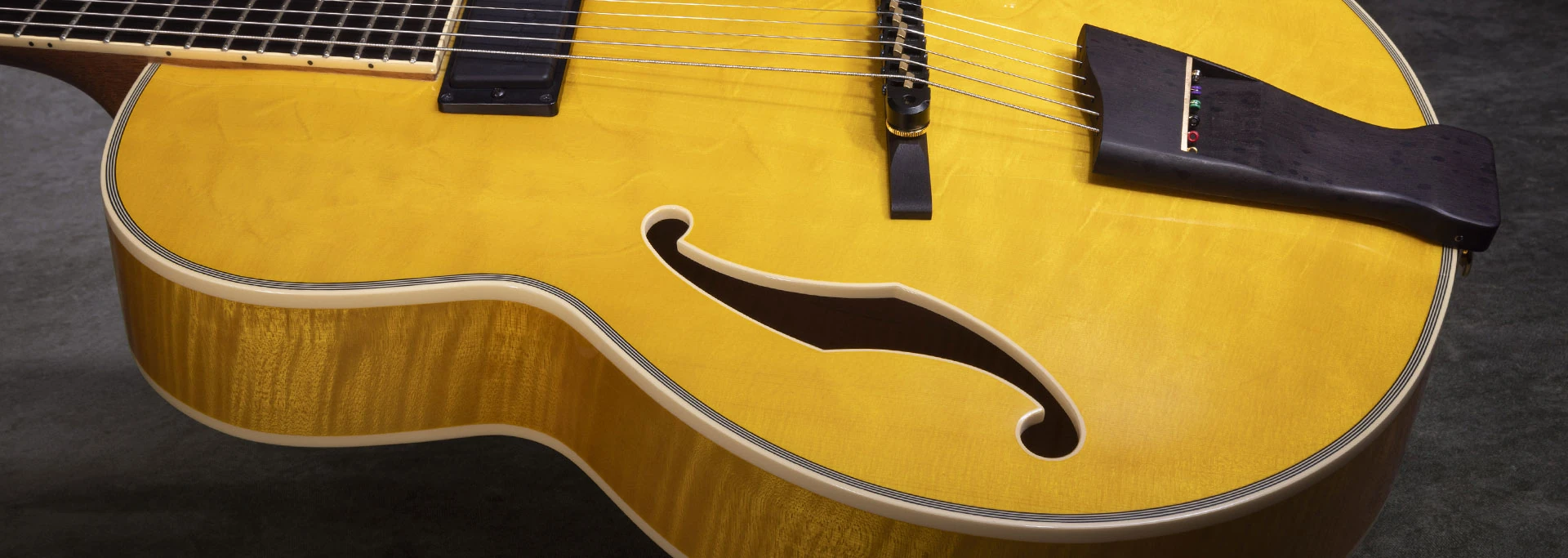

JPCS8 hole
T.O.M bridge and Ebony tailpiece

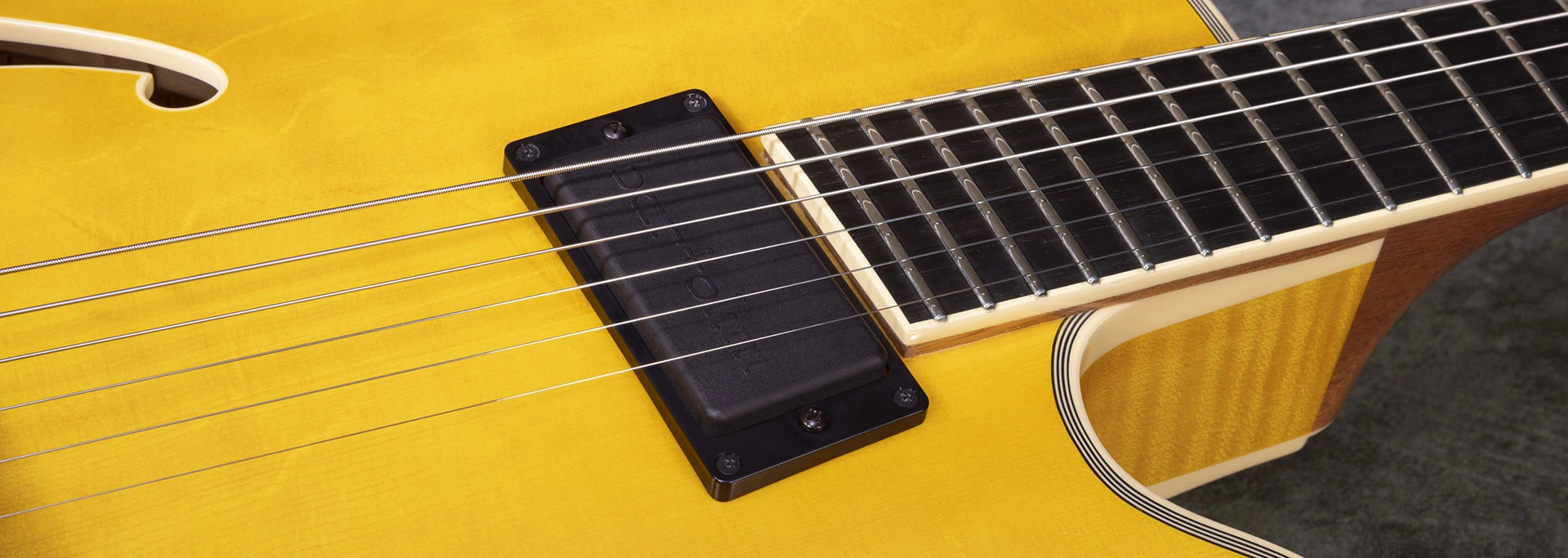

JPCS8 H
Bartolini™ 1C humbucker

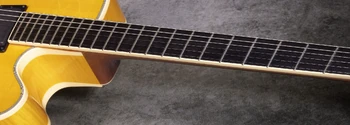

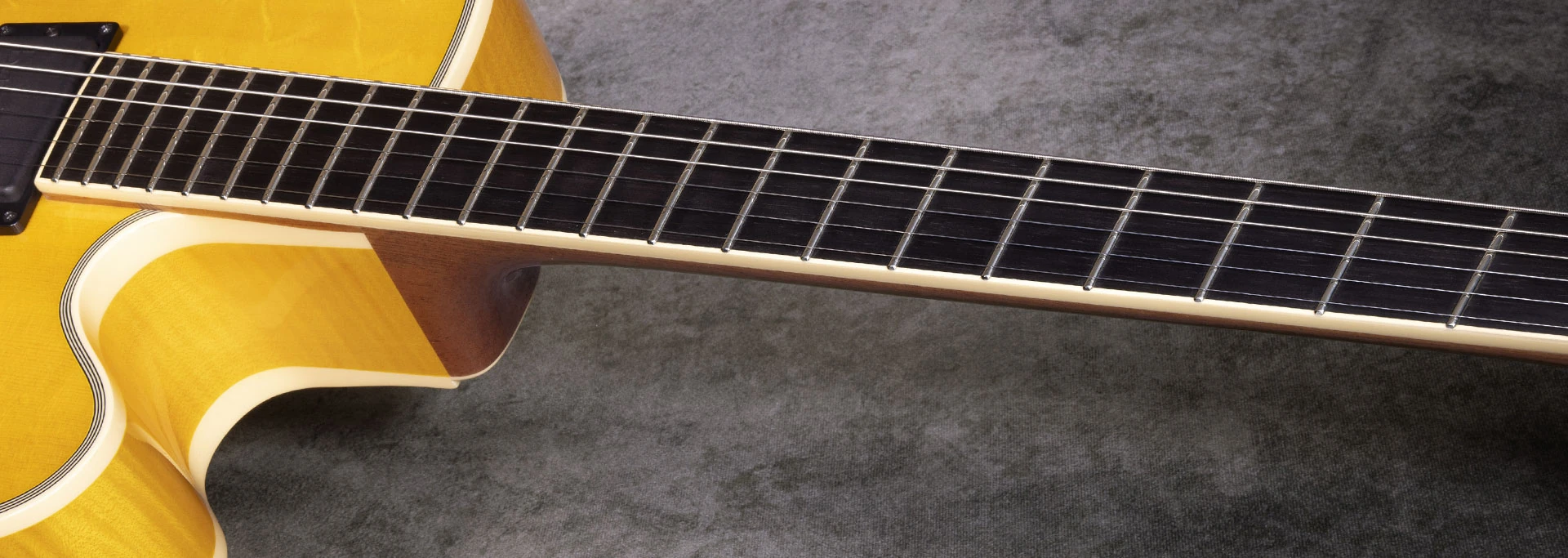

JPCS8 fb
Ebony Multi-scale fingerboard

Sources[]

Ibanez "Hoshino (USA) Inc. 50th Anniversary" : JPCS8 "TOTALLY JAZZED" product page / February 2022
