JPCS3 (2022)
JPCS3 "WIND SHEAR" Transparent Blue (more images) Red copyright sprite

The JPCS3 "WIND SHEAR" is an S series solid body electric bass model introduced by Ibanez for 2022. It was crafted by the Japan Custom Shop in Nagoya as part of the 50th anniversary of Ibanez’s US-based distributor Hoshino U.S.A. Inc.

The JPCS3 is a One-off model which is sold exclusively by select Ibanez music retailers.

JPCS3 build

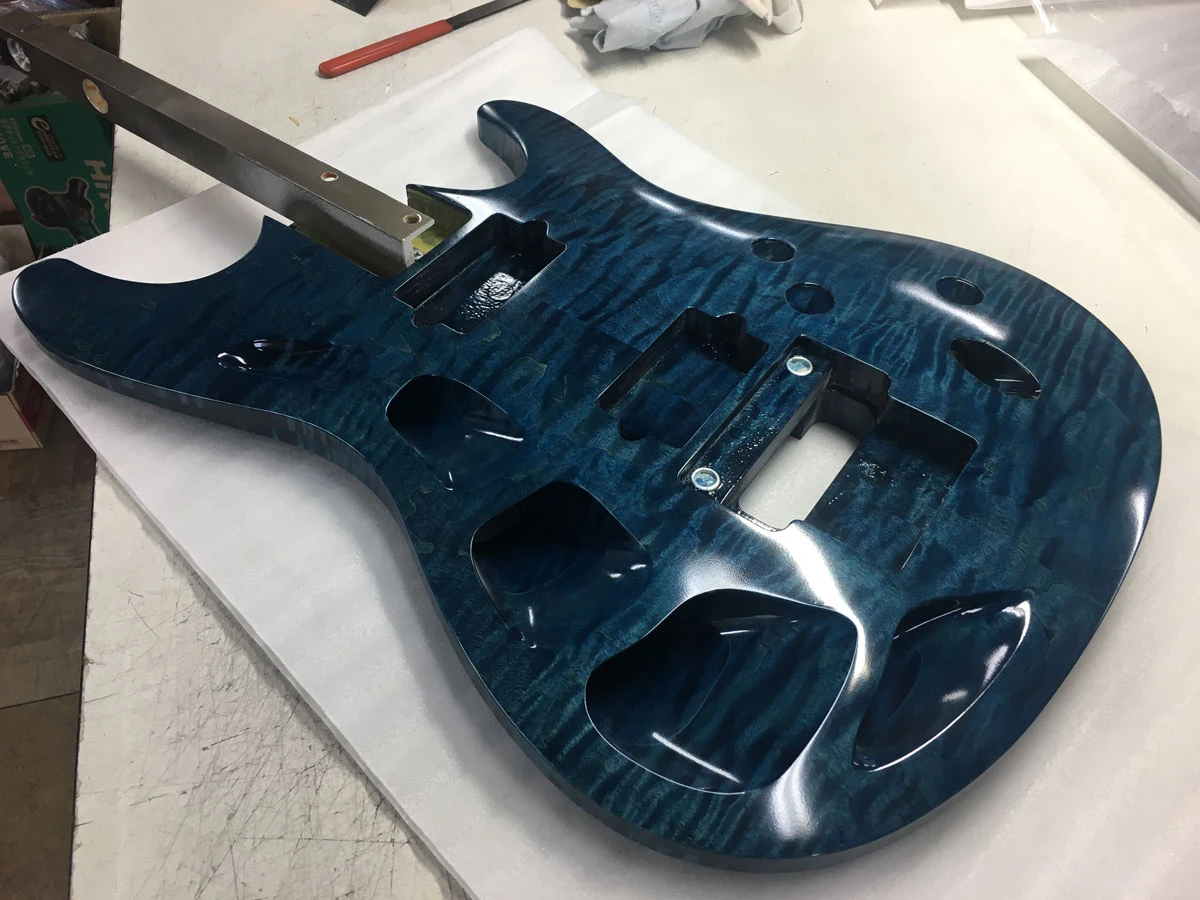

JPCS3 - "WIND SHEAR" build Enlarge sprite

This guitar is highly unique among the 50th Anniversary Collection in that it is built entirely from Flamed Maple. From the body to the neck and fingerboard, the viewer is treated to a panorama of stunning Flamed Maple figuring. A luxurious Transparent Blue finish covers the entirety of the instrument, even the fretboard. It’s a phenomenally stunning instrument and a true one-of-a-kind. Serving as both the functional and aesthetic highlight of this guitar, these weight relief cuts are hand-carved into the body and actually run through it, from the front to the back. They add some enticing visual complexity, while also taking what’s already a light instrument and scaling back its weight even further.


The JPCS3 - "WIND SHEAR" features a flamed maple top on a flamed maple body bolted to a flamed maple neck with a 24-fret flamed maple fingerboard with offset MOP dots and MOP side dots position markers. Components include a DiMarzio Air Norton humbuckers pickups on the neck position and a DiMarzio The Tone Zone humbuckers pickups in the bridge position, a Edge double locking tremolo bridge with a locking nut, and Gotoh tuning machines. Includes Hardshell Case & Certificate of Authenticity

Specifications[]

Related content: S series | Models-icon
Specifications for JPCS3 - "WIND SHEAR"
Model name: JPCS3 - "WIND SHEAR"
Year(s) offered: 2022
Sold in: USA
Made in: Japan
Price: MSRP: US$15,999.99
Finish(es): Transparent Blue
Body
Body type:
Solid body
Body material:
Flamed Maple
Neck joint:
AANJ
Bridge:
Edge tremolo (10.8mm string spacing)
Knob style:
Gotoh VK1-19 Tek Grip knob
Hardware color:
Chrome
Neck
Neck type:
U Shaped
Thickness: 19mm at 1st fret, 21mm at 12th fret
Width: 56mm at 22nd fret
Neck material:
Flamed Maple
Scale length:
648mm/ 25½"
Fingerboard material:
Flamed Maple (Radius: 16.9")
Fingerboard inlays:
Offset MOP dots and MOP side dots
Frets:
24 / jumbo
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio The Tone Zone (H)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

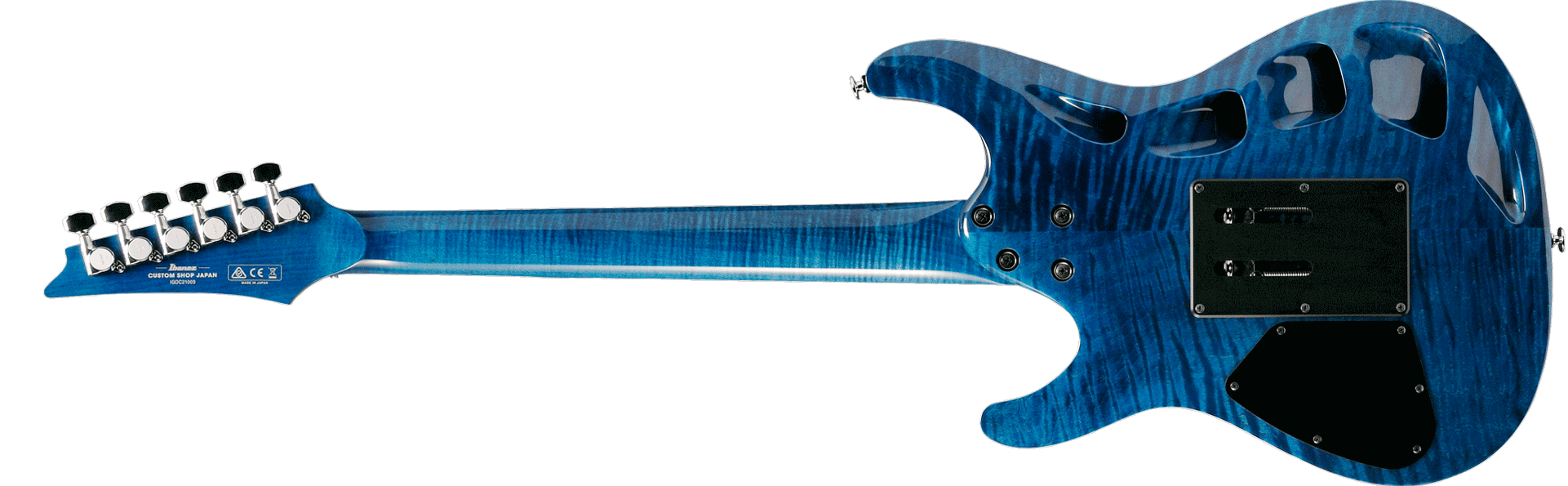

JPCS3 rear
2022 Ibanez JPCS3 - "WIND SHEAR" ( Rear: Flamed maple body bolted to a Flamed maple U Shaped neck and Gotoh machine heads ) Red copyright sprite
Additional details

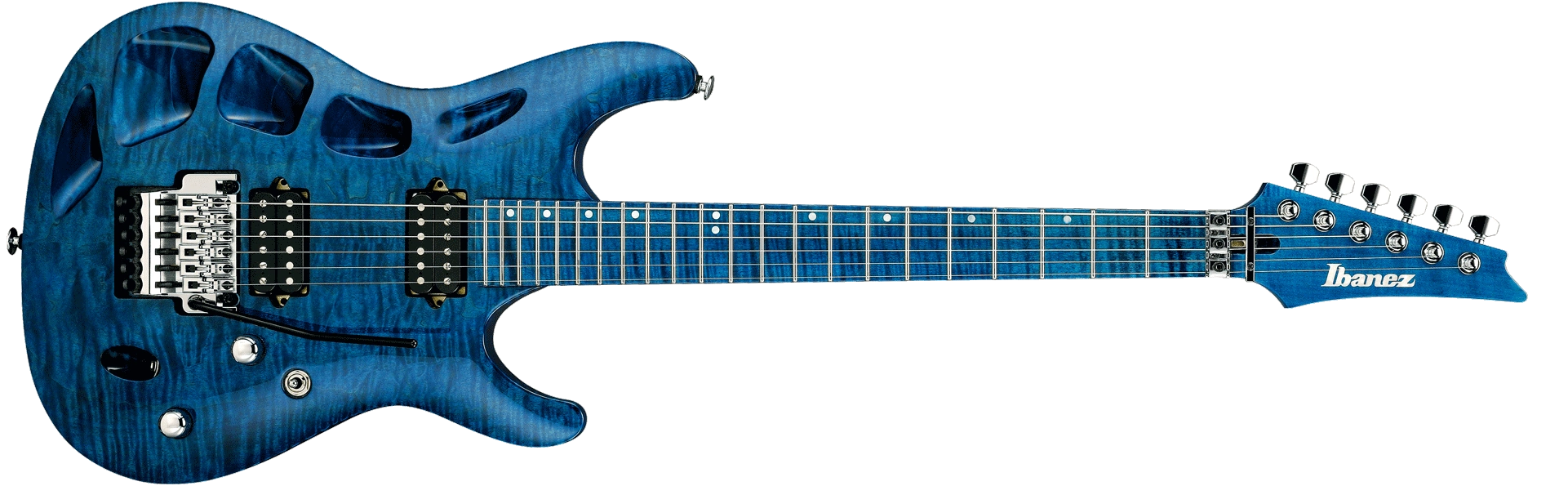

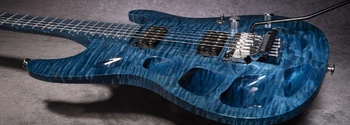

JPCS3 top
Flamed maple / Transparent Blue top

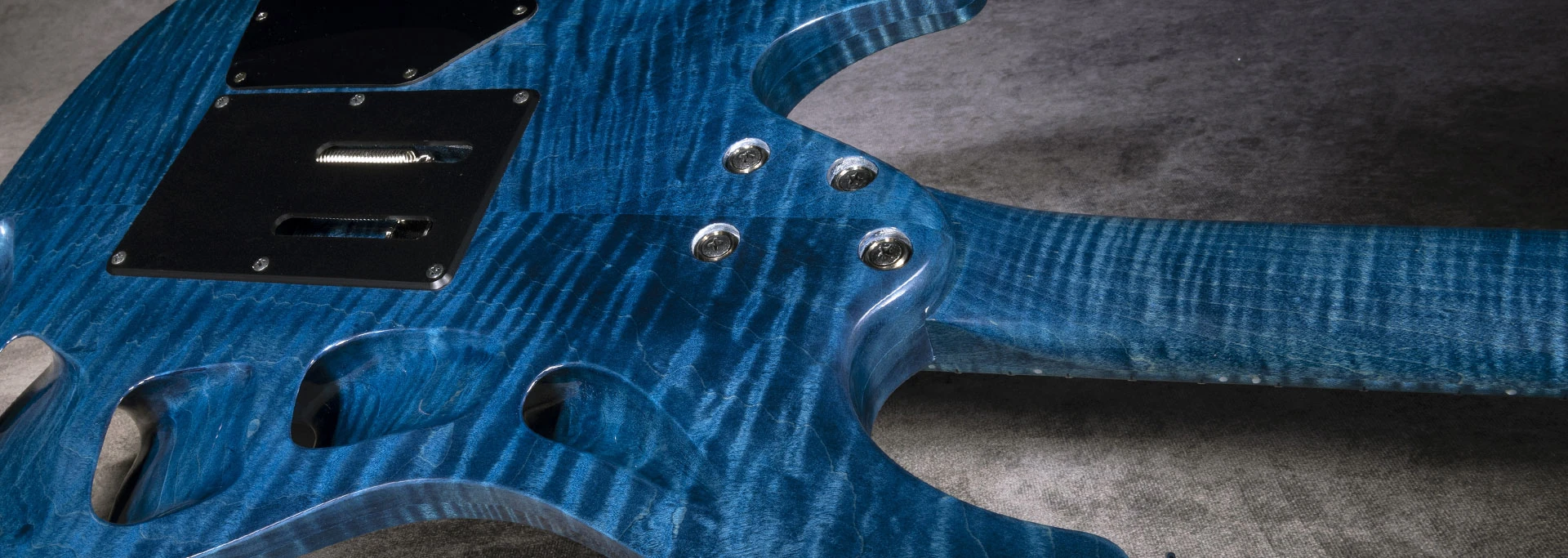

JPCS3 back
Weight relief cuts (back)

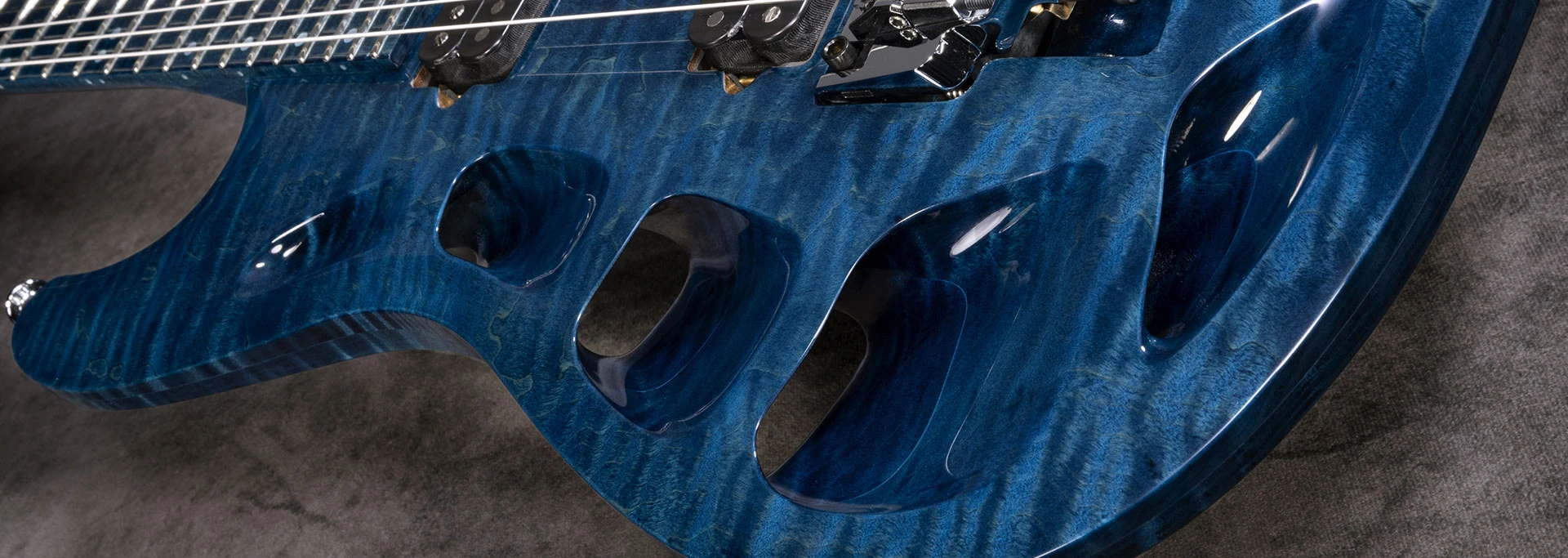

JPCS3 cuts
Weight relief cuts (front)

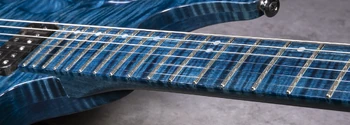

JPCS3 fretboard
Flamed maple fretboard

Sources[]

Ibanez "Hoshino (USA) Inc. 50th Anniversary" : JPCS3 "WIND SHEAR" product page / February 2022
